Introduction Of Wall hanging type ultrasonic flowmeter
Measurement of medium fixed wall hanging type ultrasonic flowmeter for water, sea water, industrial wastewater, acid and alkali liquid, various oils and other liquid can transfer sound.
Wall hanging type ultrasonic flowmeter for pipe: steel, cast iron, cement pipe,copper pipe, PVC, aluminum tube, glass steel etc..
The basic configuration of fixed wall hanging type ultrasonic flowmeter for host(display) + sensor (external or insert).
Parameters Of Wall hanging type ultrasonic flowmeter
1、The host has standard wall hanging type, tray type and explosion-proof type optional.
2、The sensor into a clamp on sensor and insertion style sensor; clamp on sensor is characterized in that the application does not want to damage the pipeline, simple installation and operation without any construction, clamp on sensor is installed on the outer wall of the pipeline will be two sensor application, not with the measured fluid contact. Between the sensor surface and the outer wall of the pipeline is coated with the coupling agent (Vaseline), sensor using special tie (factory equipped) binding in the pipeline. Insert the sensor is characterized by stable operation, insert type sensor is installed in a 20mm diameter pipe hole, the sensor is fixed to the pipe hole,let the sensor acoustic wedge part and the measured liquid contact.

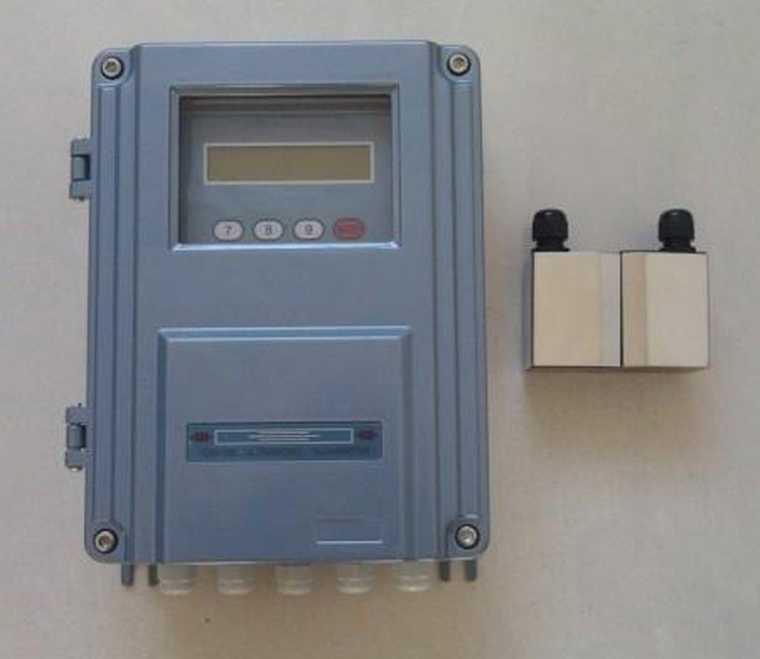

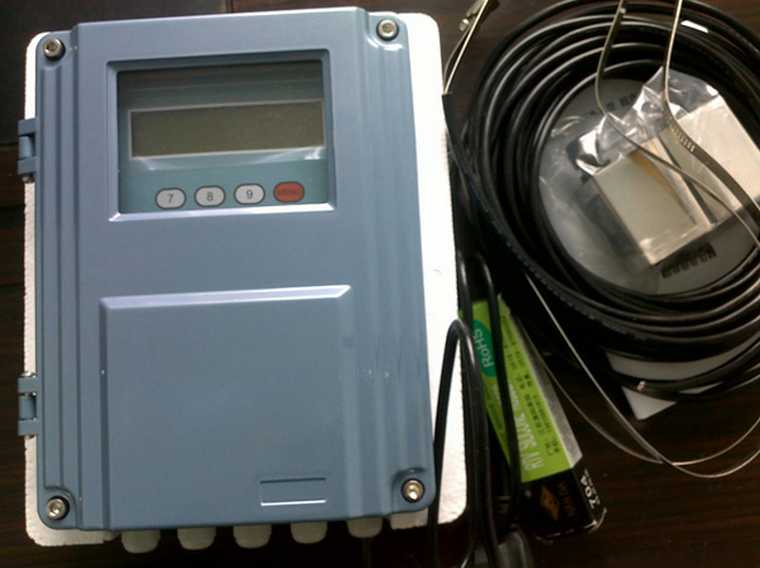

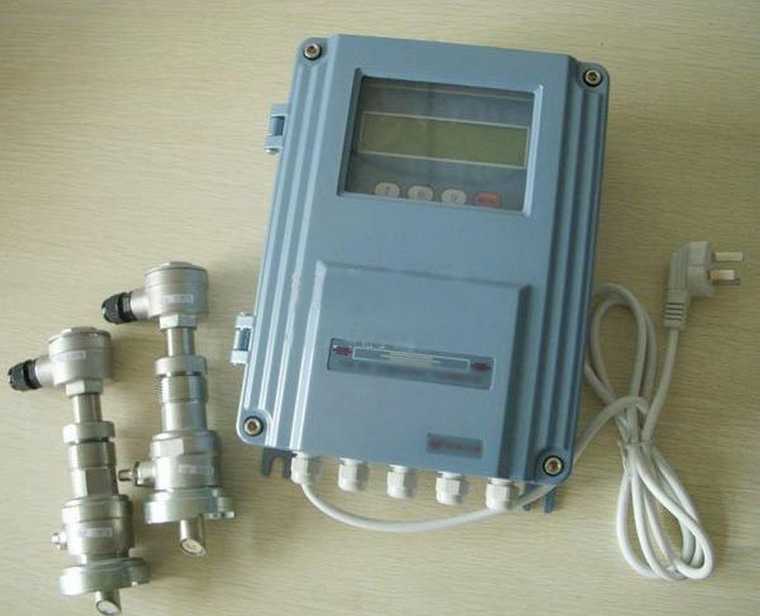

Pictures Of Wall hanging type ultrasonic flowmeter
