DIESEL WINCH

Is a human or mechanical power driven drum, winding traction rope to complete the installation work.

TRACTION CABLE
LIFTING HEAVY OBJECTS
ASSEMBLE THE POLE TOWER

DIESEL WINCH

— FOUR MAJOR ADVANTAGES —

FLEXIBLE OPERATION

STABLE PERFORMANCE

COST-EFFECTIVE

QUALITY ASSURANCE

DIESEL WINCH

— PRODUCT DESCRIPTION —

Is a human or mechanical power driven drum, winding traction rope to complete the installation work.

Mainly used for power transmission project (including underground power cable engineering),Telecommunications, telecommunications engineering construction tower erection, the traction cable, tighten the wire, lifting weights and tools.Especially suitable for small batch operations within the city.

DIESEL WINCH

Can be vertical, horizontal or inclined dragging.

DIESEL WINCH

— SCOPE OF APPLICATION —

Widely used in transmission line construction in the bar, tower, tight line operation, or tools and lifting heavy objects.
The host weight, especially suitable for field without power site use.
Any model, used in power site, can be configured motor power.

DIESEL WINCH

— PRODUCT DETAILS —

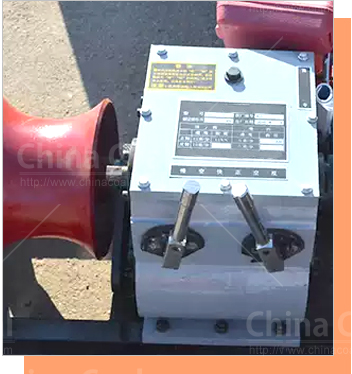

DOUBLE-SPEED GEARBOX

The fast and slow gears and anyway gears are independently designed,Easy switching between forward and reverse,The operation is convenient and not easy to be out of the gear.

U-SHAPED THICKENING ROLLER

The U-shaped thick drum wire rope is not easy to fall off,Hot pressing film is formed at one time,Load-bearing.

BUTT SHAFT DRIVE

Fast speed, large torque,Carrying stronger,Stable performance and high work efficiency.

Because the production batches, the different models, the picture is for reference only,
Please contact our sales staff for specific verification

DIESEL WINCH

— PRODUCT STRUCTURE —

WRINGING CORE TRANSMISSION ASSEMBLY CLUTCH ENGINE ASSEMBLY BASE FAST AND SLOW POSITIVE AND NEGATIVE GEAR TRANSMISSION SYSTEM PURE COPPER MOTOR

DIESEL WINCH

— TECHNICAL PARAMETERS —

Winch No.	Model	Capacity Traction		Traction Speed		Power Disposition	Rotation	Weight
		（KN）		（m/min）				（Kg）
		High Speed	Low Speed	High Speed	Low Speed
46-2	JM-5Q	15	50	13	4	13HP390 Gasoline Generator	Belt Rotation	140
46-2	JM-5C	15	50	13	4	15HP185 Disel Generator	Belt Rotation	160
46-5	JM-5A	15	50	26	5	13HP390 Gasoline Generator	Axial Rotation	138
46-5	JM-5A	15	50	26	5	15HP185 Disel Generator	Axial Rotation	148
46-6	JMS-5Q	15	50	18	9	13HP390 Gasoline Generator	Double Drum	145
46-6	JMS-5C	15	50	18	9	15HP185 Disel Generator	Double Drum	160
