ZWY-150/45L Mining Crawler Mucking Rock Loader

ZWY-150/45L crawler type slope type excavator loader (common name:muking loader) is a continuous production of high efficiency mining equipment. It is mainly used for loading operations in coal mine r

Related Products

Introduction of  ZWY-150/45L Mining Crawler Mucking Rock Loader

ZWY-150/45L crawler type slope type excavator loader (common name:muking loader) is a continuous production of high efficiency mining equipment. It is mainly used for loading operations in coal mine rock lanes, semi-coal rock roadways, mine main road tunneling and diversion tunnels, tunnel construction and defense tunnel construction. Applicable to roadways with section 3.2×3.2 m and slope 33°.

The Mucking Rock Loader relies on propulsion to shovel the rock and pour the stone into its own scraper conveyor through the bucket. The conveyor unloads the rock from the tail into the side-discharging mine car, the bucket, the belt conveyor, the shuttle mine car, the dump truck. Wait for other reloading equipment. At the same time, the backhoe can be used to pick up the rock in the distance, or the bucket can be used to clean the working face and the section and the ditch.

The main features of the Mucking loader: electric full hydraulic control system, electric system adopts step-down starting mode, suitable for long tunnel working conditions; hydraulic system optimization design, main action adopts pilot valve control, easy and simple operation, stable and no impact, draw excavation Mature design concept and configuration, imported components, multi-channel precision oil filter, air-cooled radiator; can be installed in full section rock, no dead angle, no need to manually clean the working surface; transport slag adopts chain scraper type, smooth operation It has strong slagging ability and semi-enclosed assembly method for easy maintenance.

Parameter of ZWY-150/45L Mining Crawler Mucking Rock Loader

Protect

ZWY-120/55L

ZWY-150/55L

Excavation width

5900mm

6870mm

Excavation distance

2470mm

2857mm

Excavation height

3330mm

3563mm

Excavation depth

800mm

915mm

Unloading height

2100mm

2200mm

Mini loading height

1760mm

1750mm

Working arm max angle of rotation

3170mm

3170mm

Adapt to the roadway section

±55°

±55°

Loading capacity

120m3

150m3

Power

55 kw

55kw

total weight

13600kg

15300kg

Walking speed

0.9km/h , 1.8km/h

0.9km/h 1.8km/h

Applicable roadway slope

32°

32°

Mini turning radius

6m

7m

Operation method

Hydraulic control

Hydraulic control

Scraper chain speed

34m/min

34m/min

Fuel tank capacity

260L

260L

Max working pressure

30Mpa

30Mpa

Dimensions(Length * Width * Height)

9200*2100*2350mm(Transportation status)

9500*2360*2450mm

11080*2100*2813mm(Working status)

11700*2360*2870mm

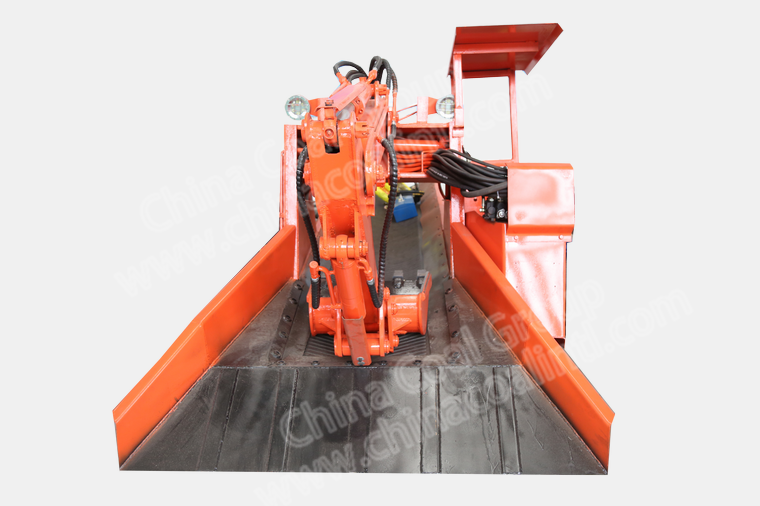

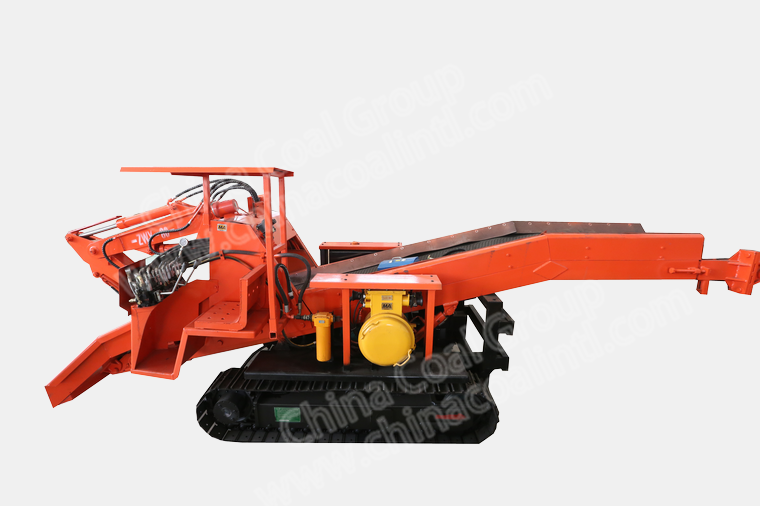

Photos of Underground Crawler Mucking Rock Loader



ZWY-150/45L Mining Crawler Mucking Rock LoaderZWY-150/45L Mining Crawler Mucking Rock Loader
