ZWY-260/90 Mucking Rock Loader

The ZWY-260/90L crawler type slope type excavator loader (common name: mucking loader) is a continuous production of high efficiency mining equipment. The excavator loader is mainly used for loading o

Related Products

Introduction of ZWY-260/90 Mucking Rock Loader

The ZWY-260/90L crawler type slope type excavator loader (common name: mucking loader) is a continuous production of high efficiency mining equipment. The excavator loader is mainly used for loading operations in coal mine rock lanes, semi-coal rock roadways, mine main road tunneling and diversion tunnels, tunnel construction and defense tunnel construction. Applicable to roadways with section ≥4.2X4.2m and slope ≤33°.



The machine relies on propulsion to shovel the rock and pour the stone into its own scraper conveyor through the bucket. The conveyor unloads the rock from the tail into the side-discharging mine car, the bucket, the belt conveyor, the shuttle mine car, the dump truck. Wait for other reloading equipment. At the same time, the backhoe can be used to pick up the rock in the distance, or the bucket can be used to clean the working face and the section and the ditch.

The main features of the equipment: electric full hydraulic control system, electric system adopts step-down starting mode, suitable for long tunnel working conditions; hydraulic system optimization design, main action adopts pilot valve control, easy and simple operation, stable and no impact, draw excavation Mature design concept and configuration, imported components, multi-channel precision oil filter, air-cooled radiator; can be installed in full section rock, no dead angle, no need to manually clean the working surface; transport slag adopts chain scraper type, smooth operation It has strong slagging ability and semi-enclosed assembly method for easy maintenance.

Parameter of ZWY-260/90 Mucking Rock Loader

project

unit

ZWY-260/90L

Excavation width

mm

8800

Excavation distance

mm

3600

Excavation height

mm

7100

Excavation depth

mm

1120

Unloading height

mm

3300(variable)

Mini loading height

mm

4500(variable)

Working arm max angle of rotation

mm

980×900

Adapt to the roadway section

(°)

±55

Loading Capacity

m3/h

260

Power

kw

90

Total weight

kg

25000

Working speed

km/h

2.0

Applicable roadway slope

(°)

≤32

Mini turning radius

m

≥12

Operation method

Hydraulic control

Scraper chain speed

m/min

44

Rated working pressure

Mpa

32

Dimension(transport)

mm

14000×2800×4500

Dimension (working)

mm

16300×2800×4500

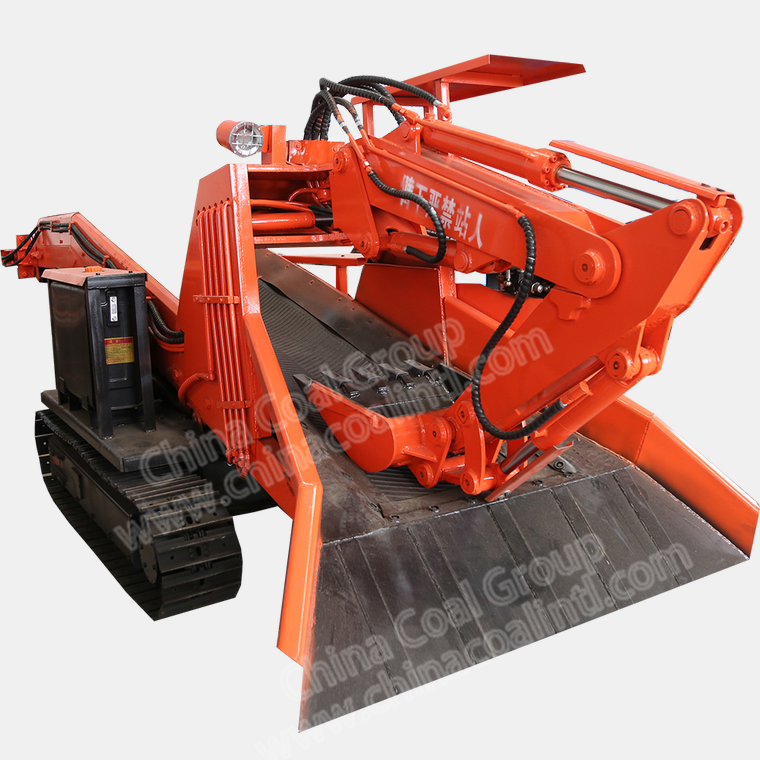

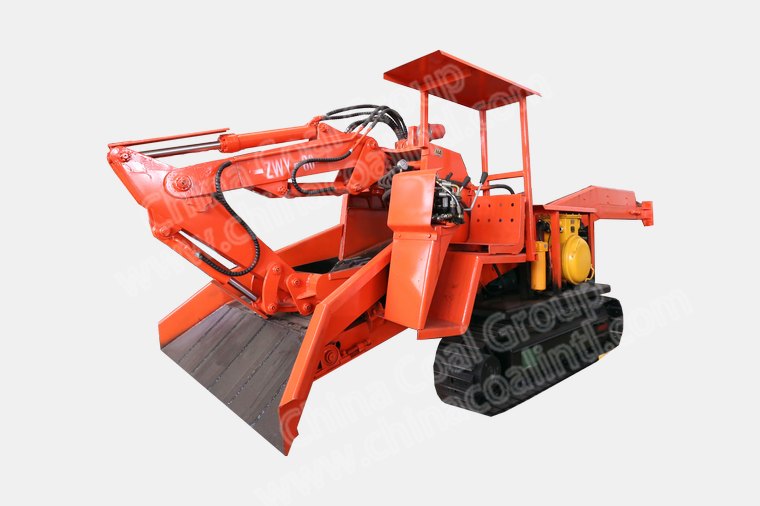

Photos of ZWY-260/90 Mucking Rock Loader

ZWY-260/90 Mucking Rock LoaderZWY-260/90 Mucking Rock Loader
