LWLX Crawler Mucking Rock Loader For Mining

LWLX-60/30L Crawler Mucking Loader is a continuous efficient mucking machine. It can be used both for tunnel construction and for outdoor work. Mainly used in coal mine and mining roadway, railway t

Related Products

Introduction of LWLX Crawler Mucking Rock Loader For Mining

LWLX-60/30L Crawler Mucking Loader is a continuous efficient mucking machine. It can be

used both for tunnel construction and for outdoor work. Mainly used in coal mine and

mining roadway, railway tunnels, culverts, defense and other roadway excavation cave

loading operations. This machine is crawler moving, grab rocks to its own scraper

conveyor, and then dumping the rocks from the end into the shuttle car or mining cars.

Parameters of LWLX Crawler Mucking Rock Loader For Mining

Main Overall Dimension

Model

LWLX-60/30L

Crawler contacting ground length

2270mm

Crawler inner width

900mm(variable)

Crawler plate width

350/400mm

Ground clearance

280mm(variable)

Conveyor inner width

488mm

Dimensions during transport

Length

6750mm

Width

1600mm

Height

1650mm

Dimensions during operating

Length

7300mm

Width

1600mm

Height

1800mm



Working Range

Model

LWLX-60/30L

Digging width

3100mm

Digging distance(from dozer blade)

1530mm

Digging height

2300mm

Digging depth below ground level

500mm

Dumping height

1400mm(variable)

Minimum dumping height

1350mm(variable)

Dumping distance

1600mm(variable)

Max.boom angle

±35°

Adaptive tunnel dimension(Width x Height)

≥2x2m



Functional Parameters

Loading ability

60m3/h

General power

30kw

Weight

7800kg

Traveling speed

0.2±5% m/s

Scraper chain

Single chain single motor

Adaptive tunnel slope

≤30°

Minimum turning radius

≥4m

Ground pressure

≤0.1Mpa

Steering

hydraulic

Speed of scraper chain

25m/min

Volume of hydraulic tank

135L

Maximum working pressure

22Mpa

Hydraulic pump

Gear pumpx4

Traveling hydraulic motor

Radial plunger motor x2

Conveyor hydraulic motor

Radial plunger motor x1

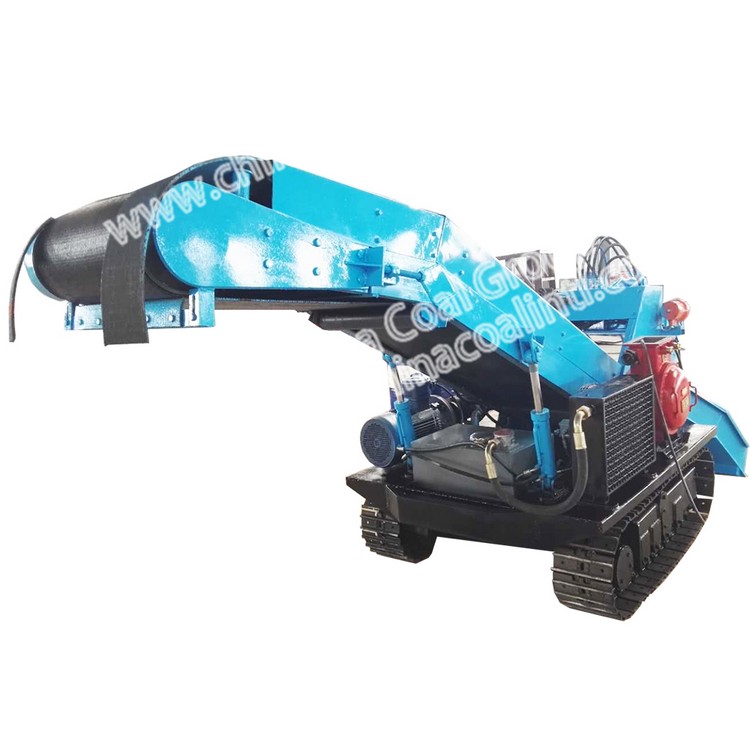

Photos of LWLX Crawler Mucking Rock Loader For Mining
