XYX-3 Trailer-Mounted Water Well Drilling Rig

Configured with the wheel mobile mechanism and hydraulic cylinder prop, the XYX-3 trailer-mounted water well drilling rig can move conveniently, which is also conducive to the horizontal adjustment of

Related Products

Product Introduction of XYX-3 Trailer-Mounted Water Well Drilling Rig

1. Configured with the wheel mobile mechanism and hydraulic cylinder prop, the XYX-3 trailer-mounted water well drilling rig can move conveniently, which is also conducive to the horizontal adjustment of the machine.
2. The hydraulic feeding system is brought into service for enhancing the drilling efficiency.
3. The product also employs the bottom hole pressure gauge to indicate the pressure. The operator can master the condition in the hole easily.
4. The trailer-mounted water well drilling rig utilizes the hydraulic control to achieve up and down movement of the tower frame conveniently and reliably.
5. The electric starting of the diesel engine reduces the labor intensity of the workers.
Function Application
The product is specially used in the field involving geological survey exploration, basic exploration for road and high-rise building, drilling of the inspection hole of a variety of concrete structures, the construction of dyke and dam of rivers, the subgrade grouting hole drilling and direct grouting, the drilling of civil well, the construction of ground temperature central air conditioning, etc.
Manufacturing Equipment
The trailer-mounted water well drilling rig is fabricated by using slideway grinding machine, supersonic frequency induction hardening machine tool, gantry planing machine, gantry milling machine, CNC boring machine, etc.

Main Parameter of XYX-3 Trailer-Mounted Water Well Drilling Rig

Drilling depth

m

100

250

300

600

Drilling  Diameter

mm

300

200

150

75

Open hole DI

mm

300

End hole  DI

mm

75

Drilling rod

mm

Φ60

Drilling angle

90°-65°

Rotary Spindle

Spindle forward speed

r/min

30-1050

Spindle reverse speed

r/min

29-137

Spindle stroke

mm

560

Spindle inner diameter

mm

96

Spindle lifting capacity

KN

60

Main Winch  ( drive hydraulic system)

Single line lifting speed

m/min

0-45

Hug floodgate belt width

mm

90

Tightrope diameter

mm

14

Hoist single line lifting capacity

KN

40

Roller diameter

mm

200

Roller cubic measure

m

30

Mud pump

Horizontal Triplex BW-250 mud pump

Displacement

L/min

250

Work pressure

Mpa

7

Water inlet caliber

mm

75

Water to exit caliber

mm

50

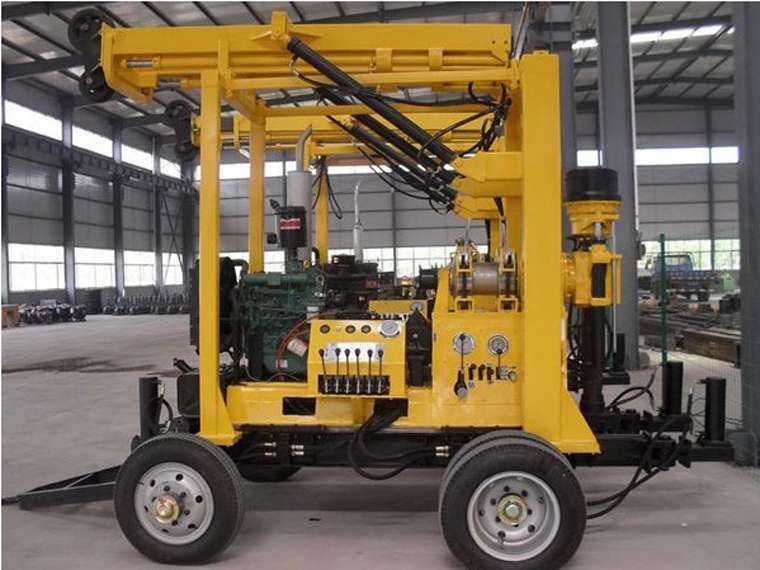

Figure Photos of XYX-3 Trailer-Mounted Water Well Drilling Rig
