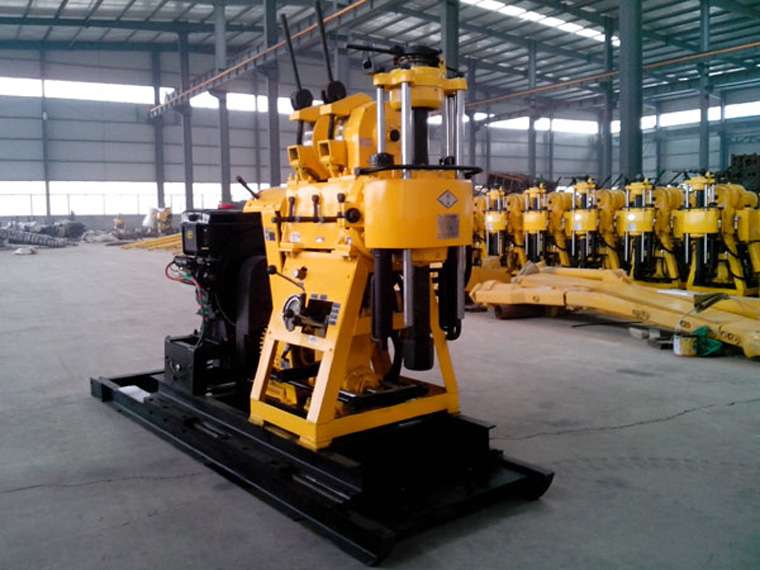

HZ-200YY Water Well Drilling Rig Machine

The HZ-200YY water well drilling rig utilizes the 53×59 hexagon drive drilling rod featuring strong rigidity and enabling delivering large torque.

Related Products

Product Introduction

1. The HZ-200YY water well drilling rig utilizes the 53×59 hexagon drive drilling rod featuring strong rigidity and enabling delivering large torque.
2. The cone clutch with national technology patent is employed. It can not only deliver large torque but also perform excellently with handy operation and free maintenance.
3. The winch is retrofitted with the support frame. The planetary gear module is also increased. Thus, the lifting and braking ability of the winch is improved largely.
4. The spindle box of the water well drilling rig exploits four groups of bearings to realize location. Then, the gyrator is guaranteed to have enough rigidity to cope with the complex geological conditions involving gravel bed, pebble bed, etc.
5. Among the domestic similar products of the kind, our product is the first to adopt the integral type mud pump with the flow rate getting up to 160L/min. Featuring compact structure and handy mobility, the mud pump can help save the cost.

Main Parameter

Unity machine parameter

Drilling depth

30--200m

End hole caliber

500-75mm

Drill rod caliber

50mm

Drilling angle

90°~75°

Drill weight (No include power)

910kg

Unity machine dimensions

2.5×1×1.3  2.5×0.9×1.3m

Spindle

spindle speed

64,128,287,557r/min

Spindle stroke

 450mm

Hoist

Max.single line hoisting capacity

2500KG

Single line lifting speed

17,35,75,151r/min

Tightrope caliber

12.5mm

Tightrope cubic measure

35m

Hug floodgate caliber

254mm

Hug folldgate belt width

70mm

Distance between drill and hole

400mm

Mud pump - Specifications

Type

Horizontal single urn twin-action

Displacement

170L/min

Diesle engine

S1115 model 22HP

Electric motor

Y160M—4 15kw 1440r/min

Maximum pressure

1.5Mpa

Work pressure

0.7Mpa

Water inlet caliber

40mm

Water to exit caliber

30mm

Triangle conveyer belt

B1728mm

Suit  scope

Water well , exploration

Figure Photos

water well drilling machinewater well drilling machine
