BS Portable Electric Tape Gage Introduction
This instrument is suitable for the geological, mining, hydrological departments such as hydrological observation hole, the geological drilling, water Wells, DAMS and rivers and lakes, direct measurement of ground water level, to replace the commonly used measuring line measuring clock, wire multi-meters primitive and simple method to measure water.
BS Portable Electric Tape Gage Specifications
1. Depth of the maximum measured：100m、200m、300m、500m（Other range can be customized）
2.The maximum error of the measurement：Not more than ±0.05%（±5cm/100m）（Reached the international standard secondary gauge precisely to the standards set by the ISO.）
3. The probe sensitive area：Not more than ±5mm
4. Repeated measurement accuracy：Not more than ±10mm
5. Line technical conditions：Outside diameter Ф2.0,7/0.25galvanized steel reinforced, high density polyethylene insulation, breaking force not less than 25 kg force.
6. Pipe diameter：Ф14m
7. Water level detector sensitivity: external earth resistance is not less than 500000 euro.
8. Water level detector power consumption：No more than 15 An
9. Water level detection power：6F22，9V laminated battery
10. Environment ：-20℃~+40℃，relative humidity 85%

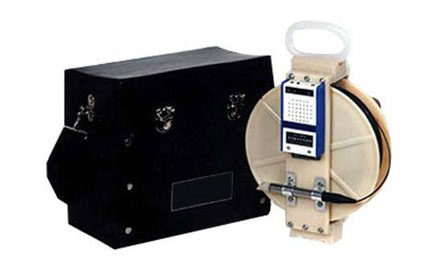

BS Portable Electric Tape Gage Figure Photos
Due to the production batch, the specific model is different, the above of pictures are for reference only, for further details you can contact our sales staff to carry out the specific verification .

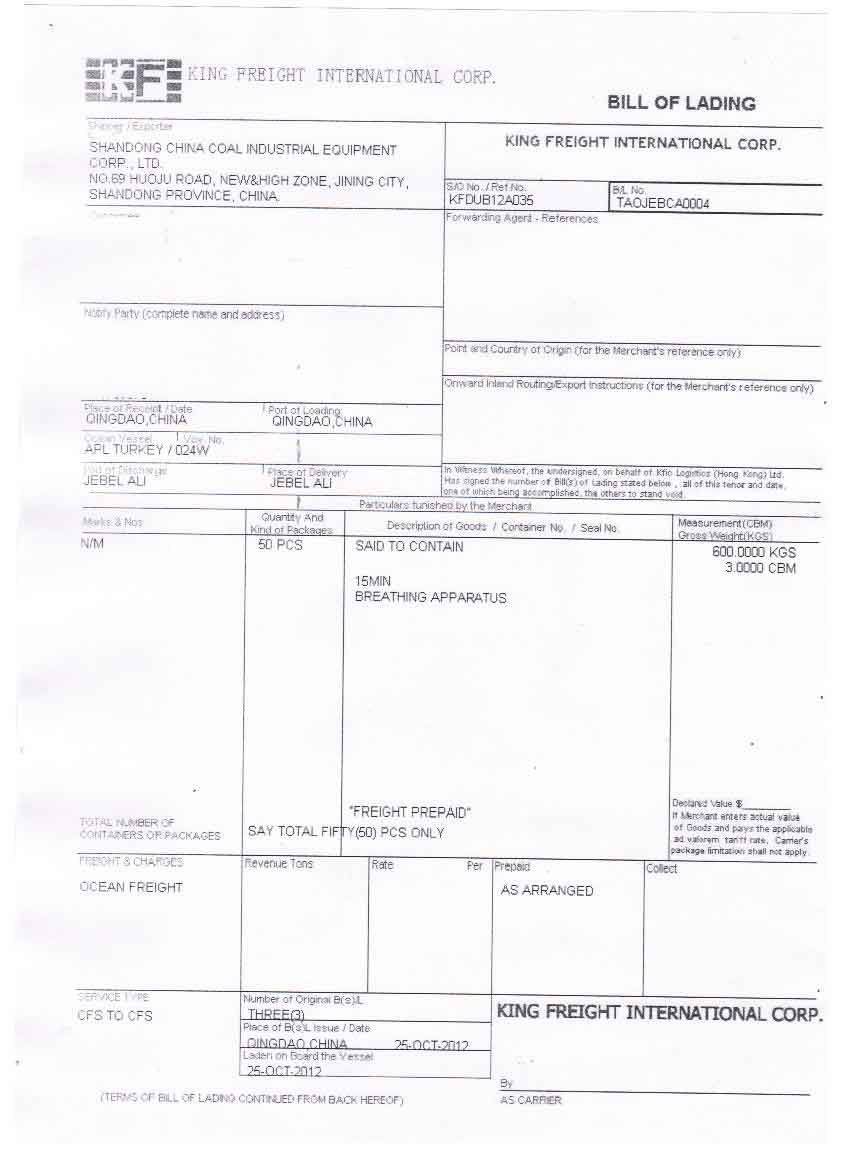

B/L of The History Trading
