CD8 Multiple Parameter Measuring Device Introduction
CD8 Multiple Parameter Measuring Device have their own frequency, RS485 and RS232 three output modes, can connect with the monitoring and control system.Applies to all places need to detect environmental conditions, such as fire, limited space, have a safe environment fields such as chemical industry, environmental protection, emergency (non explosive).
CD8 Multiple Parameter Measuring Device Measurement Range
CD8 Multiple Parameter Measuring Device can continuous detection of methane, carbon dioxide, carbon monoxide, oxygen, hydrogen sulfide, temperature, humidity, the differential concentration of 8 kinds of parameters, and can overrun alarm.Using lithium batteries and external explosion-proof power dual power supply mode.
CD8 Multiple Parameter Measuring Device Parameters
Parameters：8 species
The first characteristic code：Multiple Parameter
Code of product type ：Measuring Device
Standards：Q/LT-CD8-1-2011
Type of protection ：The Ann and flameproof
Explosion-proof sign：Exibd,MB
Structure ：Meter shell is made of stainless steel materials
Dimension 315mm×195mm×73mm
Weight：about 4.5 kg

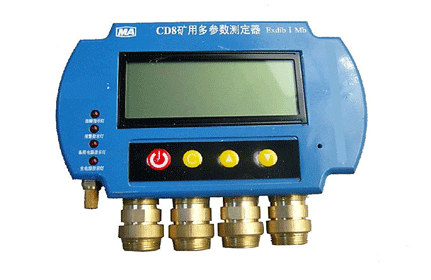

CD8 Multiple Parameter Measuring Device Figure Photos
Due to the production batch, the specific model is different, the above of pictures are for reference only, for further details you can contact our sales staff to carry out the specific verification .
