Introduction of HT-9601 Handheld Portable Particle Monitor
HT-9601 Handheld Portable Particle Monitor
is generally used for cleanliness test of clean room and performance test of
air cleaner as well as filter material and filter screen, which can provide
precise value instead of approximate one for dust particle density. At present,
it is gradually being used in particle measuring instrument, smart appliance as
well as indoor air test of clean room and so on. It can be used in the
following product.
Functions of HT-9601 Handheld Portable Particle Monitor
* Air quality testing
* Indoor smog analyzing
* Hand-held particle testing.
* Air cleaner/air conditioner/air quality
monitoring
* Venting equipment.
Technical Specification of HT-9601 Handheld Portable
Particle Monitor
|
Test particle size
|
0.3μm/2.5μm/10.0μm
|
|
Light source
|
Semiconductor lasers
|
|
Formaldehyde range
|
0.5mg/m3
|
|
Accuracy
|
± 5%
|
|
Temperature range
|
0~50℃ /32~122 F
|
|
Accuracy
|
± 5%
|
|
Humidity range
|
0~100%RH
|
|
Accuracy
|
±2% RH
|
|
Display
|
320*240 2.8in LCD display
|
|
Counting efficiency
|
100±10%@0.5μm
|
|
Sampling
|
Custom(1s~ 59min. 59s)
|
|
Sampling frequency
|
1~99/Continuous
|
|
Alarm levels
|
1~100,000(FED209E Standard) 2~9(ISO14464-1Standard)
|
|
Test mode
|
Single/repeat/continuous/timer/Average Data
Storage: 2000
|
|
16,Interface
|
USB
|
|
Operating environment
|
5~45℃, <90% RH
|
|
Storage environment
|
-20~60℃, < 90% RH
|

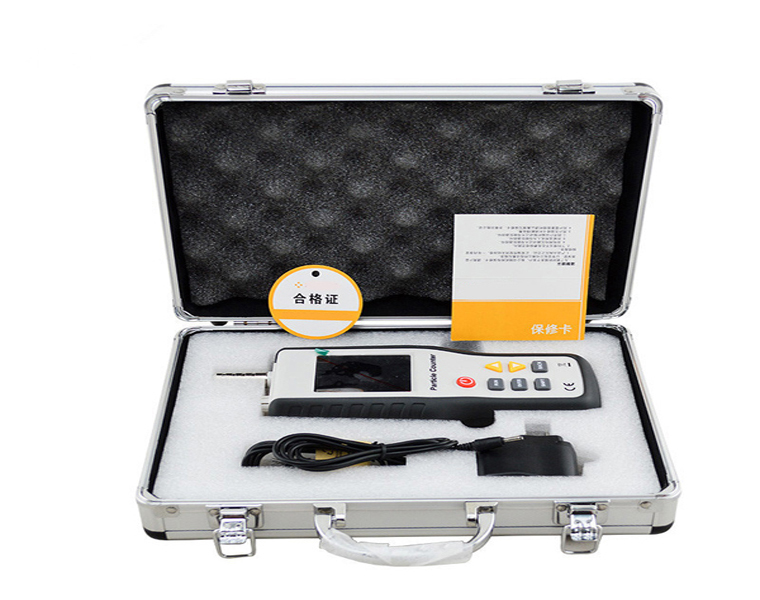

Images of HT-9601 Handheld Portable Particle Monitor
