DHBT Diesel Engine Mini Concrete Pump

DHBT Diesel Engine Mini Concrete Pump adopt original VOLVO and LOVOL diesel engines to provide power for the machines. This series of small concrete pumps are widely used in engineering projects, such

Related Products

Introduction of DHBT Diesel Engine Mini Concrete Pump

DHBT Diesel Engine Mini Concrete Pump adopt original VOLVO and LOVOL diesel engines to provide power for the machines. This series of small concrete pumps are widely used in engineering projects, such as residential building, bridge, tunnel, etc. and this concrete pump trucks are especially suitable for areas with power shortage. Daswell is dedicated to being the most professional concrete pump supplier. You can find many small concrete pumps for sale here. We are looking forward to your further enquiries.

Features of DHBT Diesel Engine Mini Concrete Pump

1. DHBT Diesel Engine Mini Concrete Pump adopt original VOLVO and LOVOL diesel engines as the power of pumps;

2. Suitable for areas with power shortage;

3. The full hydraulic system can extend component life, improve equipment reliability, and reduce the failure rate and maintenance costs;

4. The S tube valves are cast into shape with high manganese steel and has the dual advantages of anti-high pressure and anti-wearing.

5. The seal components in big cylinder adopt the products of American Parker.

Parameter of DHBT Diesel Engine Mini Concrete Pump

Item

Unit

DHBT60S-13

DHBT60S-16

DHBT80S-13

DHBT80S-16

Max. theoretical capacity

L-pressure

m3/h

60

60

80

80

H-pressure

m3/h

36

35

47

46

Max. delivery pressure

L-pressure

Mpa

7.6

9.6

7.6

9.6

H-pressure

Mpa

12.5

15.7

12.5

15.7

Hydraulic pressure

Mpa

32

32

32

32

Diesel engine (Optional)


Original VOLVO/DEUTZ imported from Germany

Main oil pump


Original German HAWE, REXROTH and Japanese KAWASAKI

Main oil cylinder dia./pole dia. stroke

mm

125/80 1650

140/90 1650

125/80 1650(1800)

140/90 1650(1800)

Diameter of concrete delivery cylinder

mm

200

Diesel engine power

Kw

118

145

145

175

Fuel consumption

g/Kwh

218

223

223

228

Capacity

of hydraulic oil tank

L

500

Hopper capacity

m3

0.6

Overall weight

Kg

6300

6500

6800

7000

Max. theoretical delivery distance

m

Vertical 180

Vertical 250

Vertical 180

Vertical 250

Horizontal 700

Horizontal 1000

Horizontal 700

Horizontal

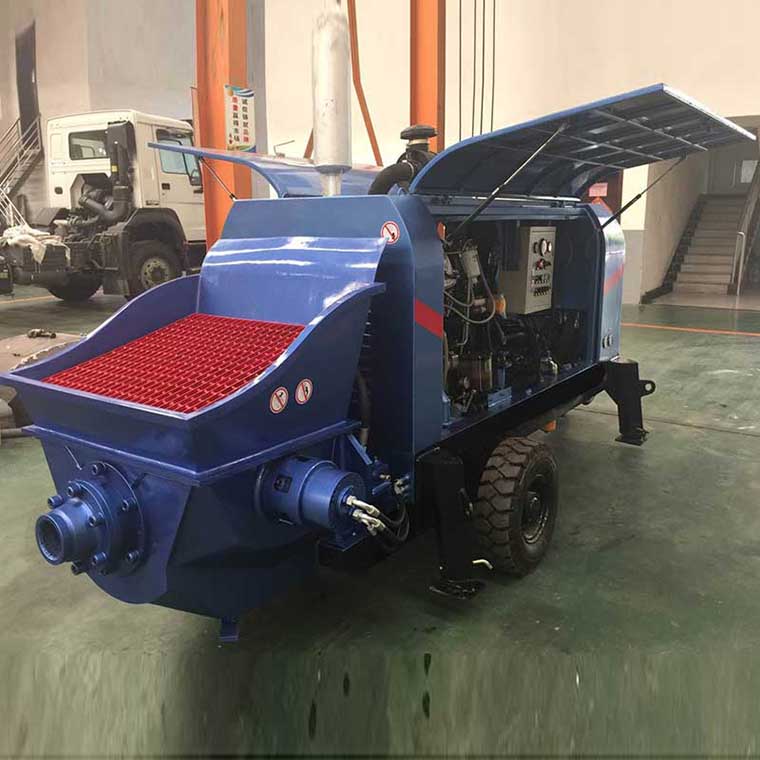

Pictures of DHBT Diesel Engine Mini Concrete Pump

DHBT Diesel Engine Mini Concrete Pump

Concrete Pump

Mini Concrete Pump
