Introduction Of Fiber Reinforced Plastics FRP Mining Anchor Rod
Fiber Reinforced Plastics FRP Mining Anchor Rod is made of glass fiber yarn, resin, curing agent after extruded, drawn, high temperature curing. FRP Anchor rod shape for the whole thread, thread is left-or right-handed.
FRP rock bolt having a tensile strength, easy to cut, cut without damaging the tooth, no spark, safe mining efficiency, light weight, high corrosion resistance, flame retardant, anti static properties, can be permanent support, to replace the metal bolt reinforced composite materials, new products.
Parameters Of Fiber Reinforced Plastics FRP Mining Anchor Rod
Model
|
Specification
(mm)
|
rod tensile strength
(kN)
|
tensile strength
of the rod (MPa)
|
thread connecting
portion bearing capacity
(kN)
|
FHJ-18
|
Φ18
|
140
|
650
|
50
|
FHJ-20
|
Φ20
|
180
|
620
|
80
|
FHF-25
|
Φ25/10
|
185
|
510
|
80
|
FHF-32
|
Φ32/15
|
285
|
480
|
120
|

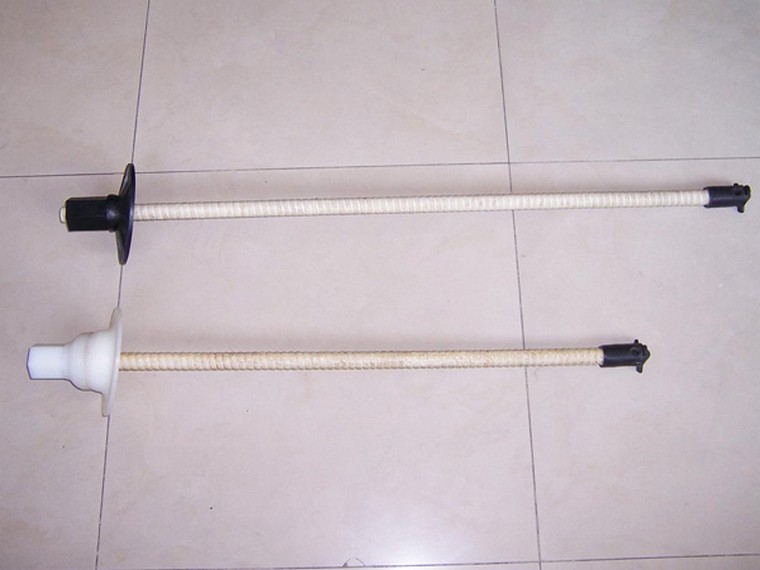

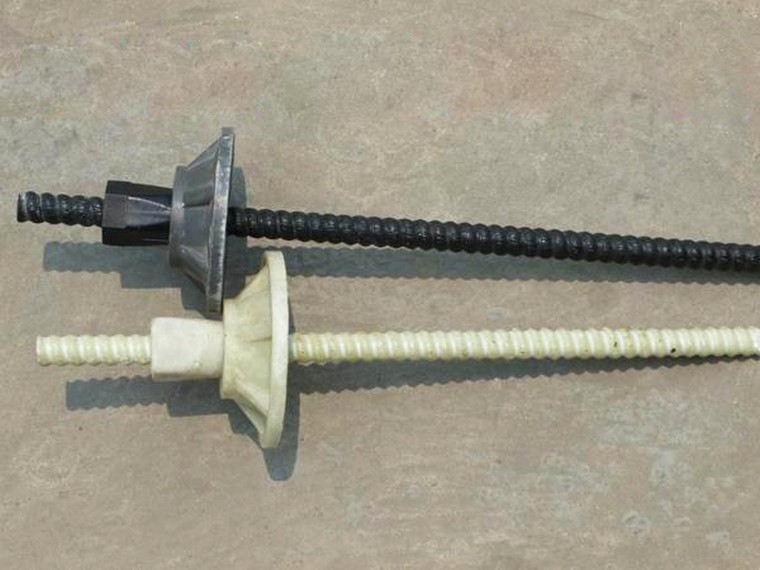

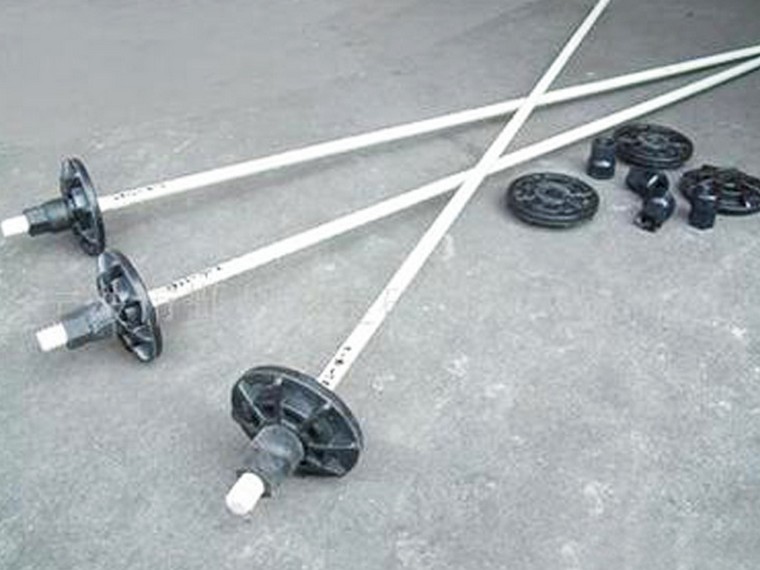

Pictures Of Fiber Reinforced Plastics FRP Mining Anchor Rod
