JTP Mine Hoist Winch

JTP mine hoist winch whole structure : roller, reducer, motor into a shaped arrangement. Main components: spindle device, reducer, hydraulic disc brakes, hydraulic station, depth indicating device, sp

Related Products
  • sales@chinacoalintl.com
  • +86-18660761375
  • Please Leave a Message
  • What can I do for you

Usage of JTP Mine Hoist Winch

JTP Mine Hoist Winch is widely used in hoist shaft and inclined to enhance coal, ore, waste rock and lifting personnel, materials, tools and equipment.

JTP series mining lifting winches are mainly used for mine floor shafts and inclined shaft lifting materials, personnel and equipment, can also be used for underground transportation and sinking bucket lifting.

It can be single drum winch and double drum winch.


Structure of JTP Mine Hoist Winch

JTP mine hoist winch whole structure : roller, reducer, motor into a shaped arrangement. Main components: spindle device, reducer, hydraulic disc brakes, hydraulic station, depth indicating device, speed power plant, mechanical centrifugal speed limiting device, console and electronic control equipment.

Analysis of JTP Mine Hoist Winch

JTP mine hoist winch with AC and DC drag two kinds; exchange drag speed mode is divided into: AC wound resistor in series with the motor rotor speed control and frequency control. Electrical device control modes: relay control and PLC control, voltage range: 380V-10KV. In the PLC control ,can be configured according to user requirements fault diagnostic display, color touch screen and reservation network interface, to complete remote network control.

Parameter of JTP Mine Hoist Winch

Model

Drum

Max. Wire rope   tension KN

Wire Rope Max. Length     m

Wire rope

Average  lifting speed m/s

Electric motor

Dimension

Weight

Diameter mm

Width

The first layer

The second layer

The third layer

Max Dia.  mm

Breaking pull sum

Rotating speed r/min

Power KW

JTPB-1.2*1.0

1200

1000

30

170

344

516

20

275

1.88-2.4

967

55-75

4658*2680*1450

10421

JTPB-1.2*1.2

1200

1200

30

203

412

620

20

275

1.57-2.4

967

55-75

4458*2680*1450

9940

JTPB-1.6*1.2

1600

1200

45

215

433

655

26

405

1.56-4

975

95-155

5224*2800*1925

15195

JTPB-1.6*1.5

1600

1500

45

269

542

819

26

405

1.56-4

975

95-155

5524*2800*1925

15678

JKB-2 X1.8P

2000

1800

62

332

670

1013

32

558

2.5

735

200

6410*3234*2600

25560

JKB-2 X1.5P

2000

1500

62

277

557

842

32

558

2.5

735

200

6160*3234*2600

24780

JKB-2.5X2P

2500

2000

83

373

755

1143

40

747

3

740

315

6700*3610*2600

36998

JKB-2.5X2.3P

2500

2300

83

429

867

1312

40

747

3

740

320

7000*3610*2600

39620

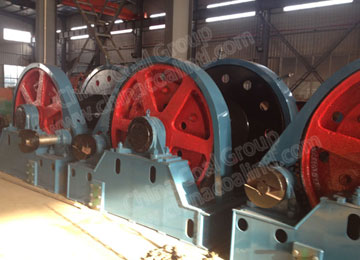

Pictures of JTP Mine Hoist Winch

JTP Mine Hoist Winch

JTP Mine Hoist Winch
