JQY/ JQYS Mining Pneumatic Air Winch

Mining Pneumatic Air Winch is a vane air motor as the driving force, through the planetary gear reducer transmits power to the roller lifting heavy objects. Motor and gearbox are connected to the side

Related Products

Introduction of JQY/ JQYS Mining Pneumatic Air Winch

JQY/ JQYS Mining Pneumatic Air Winch is a vane air motor as the driving force, through the planetary gear reducer transmits power to the roller lifting heavy objects. Motor and gearbox are connected to the sides of the roller, so that the winch have small size, light weight, compact structure, simple operation, easy maintenance, can be realized within a certain range stepless braking. winch braking is achieved through motor,brake is reliable.

In the case of without compressed air can operate by manual.

Parameter of JQY/ JQYS Mining Air Winch

Type JQYS-5X12 JQYS-10X16 JQYS-20X10 JQY-3x12 JQY-5X18 JQY-10X16
Safe working Loads S.W.L.(Kg) 500 1000 2000 300 500 1000
Hoisting speed(M/MIN) 0-12 0-16 0-10 0-12 0-18 0-16
Wire rope DIA.(φ)×Capacity(m) 8 X 50 12 X 50 14X70 6 X 45 8 X 50 10 X 50
Air motor (KW)×(rpm) 3 X 800 4 X 500 6 X 500 1.5 X 4000 3 X 3200 6 X 3200
Air pressure(MPa) 0.6 0.6 0.6 0.6 0.6 0.6
Gas volume(m3/min) 4 6 8 2.1 4 8
Air input size(G”) 3/4 1 1 1/2 3/4 1
Net weight(Kg) 120 160 395 45 85 160

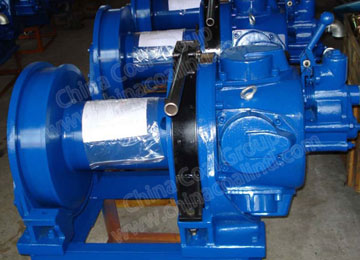

Pictures of JQY/ JQYS Mining Pneumatic Air Winch

JQY/ JQYS Mining Pneumatic Air Winch

JQY/ JQYS Mining Pneumatic Air Winch

JQY/ JQYS Mining Pneumatic Air Winch
