Introduction of JQH-10* 24 Wire Rope Winch Offshore Air Winch
JQH-10* 24 Wire Rope Winch Offshore Air Winch is a kind of manual operated single drum type air winch. Air Winch adopts compressed air as air winch's power to driven air motor, driving drum via two grades gear (to reduce transmitting speed and enlarge torque) so as to lift and drag heavy cargo.
Parameters of JQH-10* 24 Wire Rope Winch Offshore Air Winch
|
Model
|
JQHS-20 *18
|
JQHS-30* 12
|
JQHS-50* 12
|
JQHS-100* 8
|
JQH-5* 48
|
JQH-10* 24
|
Rated Pulling
force
|
20KN
|
30KN
|
50KN
|
100KN
|
5KN
|
10KN
|
The maximum speed
of wire rope
|
18m/min
|
12m/min
|
12m/min
|
8m/min
|
48m/min
|
24m/min
|
|
Rated Power
|
5.6kw
|
12kw
|
16kw
|
30kw
|
2.6kw
|
3.6kw
|
Rated Intake Air
Pressure
|
0.6Mpa
|
0.6Mpa
|
0.6Mpa
|
0.6Mpa
|
0.6Mpa
|
0.6Mpa
|
Rated Air
consumption
|
5m3/min
|
10m3/min
|
12.7m3/min
|
24m3/min
|
2.0m3/min
|
2.3m3/min
|
|
Rope capacity
|
100m
|
200m/400m
|
200m/400m
|
200m
|
80m
|
80m
|
The diameter of
Wire Rope
|
12mm
|
16mm
|
18.5mm
|
24mm
|
8mm
|
10mm
|
|
Overall size
|
560* 360* 460mm
|
1250* 500* 700mm
|
1300* 520* 760mm
|
1500* 720* 920mm
|
560* 360* 420mm
|
590*380* 460mm
|
|
Weight
|
200kg
|
500kg
|
550kg
|
1100kg
|
130kg
|
160kg
|

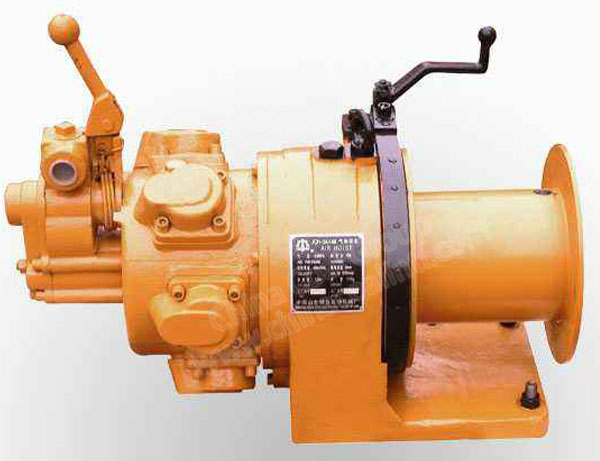

Pictures of JQH-10* 24 Wire Rope Winch Offshore Air Winch
