Introduction of JM5 5 Ton Electric Slow Mining Winch
JM5 5 Ton Electric Slow Mining Winch is mainly applied to lifting, pulling and loading or unloading the weight. For example, it can be used to mount and dismount large and medium-sized concrete and steel structure and machinery equipment. Also, JM5 5 Ton Electric Slow Mining Winch could be utilized as the lifting mechanism of hoisting machinery.
Main Parameter of JM5 5 Ton Electric Slow Mining Winch
Model
|
JM 2 T
|
JM 3 T
|
JM 5 T
|
Rated Line Pull KN
|
20
|
30
|
50
|
Total
Transmission ratioI
|
54.9
|
88.6
|
119.34
|
Drum
|
Dia.XL
MM
|
219X535
|
1273X594
|
325X640
|
Wire
rope length M
|
180
|
150
|
200
|
Wire
rope
|
Specification
|
6X19
|
6X19
|
6X19
|
Diameter
MM
|
12.5
|
15.5
|
19.5
|
Lifting
Speed M/MIM
|
16
|
16
|
9
|
motor
|
Model
|
YZR132M-6
|
YZR160M-6
|
YZR160L-6
|
Power KW
|
7.5
|
11
|
11
|
Speed
R/MIM
|
960
|
960
|
960
|
Arrester
brake model
|
TJ2-200
|
TJ2-200
|
YZW300/45
|
Dimension
MM
|
980X880X530
|
1130X1020X550
|
1310X1240X800
|
Weight
KG
|
425
|
585
|
950
|

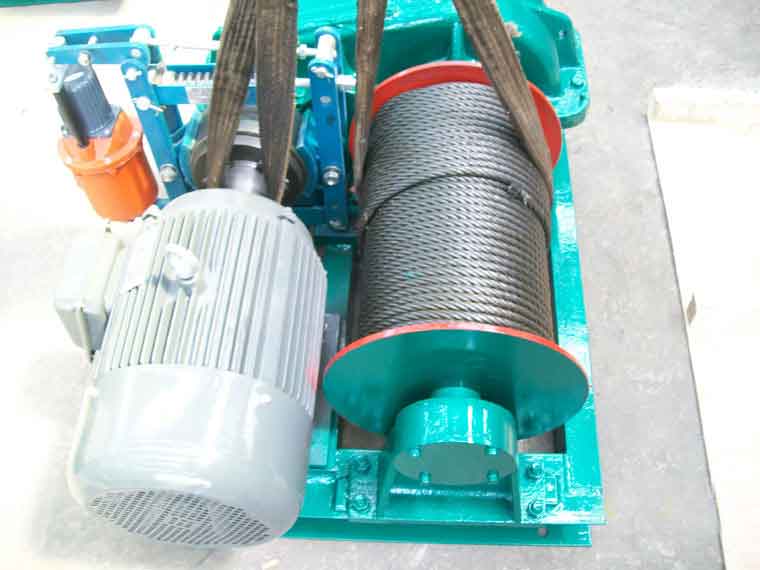

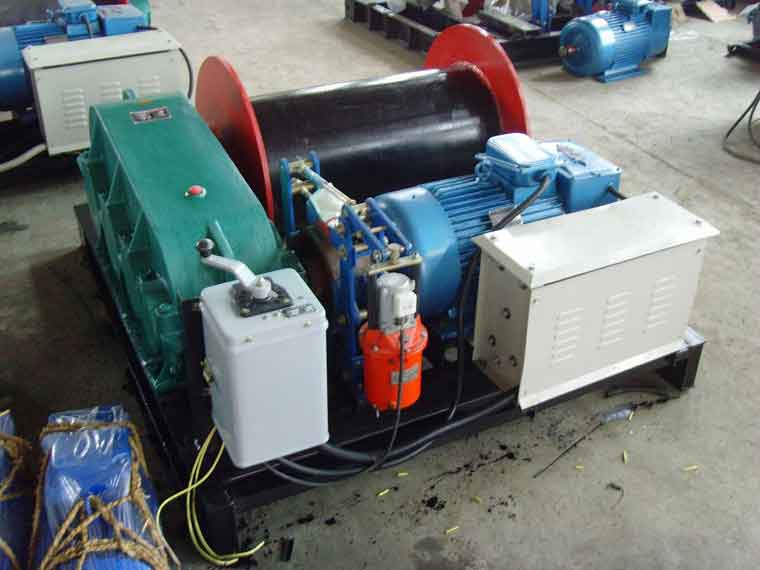

Figure Pictures of JM5 5 Ton Electric Slow Mining Winch
