Introduction Of WZ25-20 Backhoe Wheel Rock Loader
1. the enlarged driver's cab, safety glass. Luxurious shock absorber seat.
2. twist type carframe,small turning radius, variable speed,full hydraulis steering,easy and convenient operation
3. using famous brand hydraulic parts, double pumps confluence, strong power
4. digging section adopting the pilot through transport operation which is light with accurate positioning
5 .there is digging equipment and wing type leg which is much stabler than the other forms of digging device when smashing rocks and Deep excavation
6. Equipped with multinational pipline which can work with a variety of options to meet needs of different users
Parameters Of WZ25-20 Backhoe Wheel Rock Loader
|
WZ25-20 technical data
|
|
Loading bucket capacity
|
1.1 m3
|
|
Rated load capacity
|
2500kg
|
|
Max. breakout force
|
49KN
|
|
Max. Traction
|
38kn
|
|
Tipping load
|
32KN
|
|
Forward I gear shift
|
0-11km/h
|
|
Forward II gear shift
|
0-27km/h
|
|
Reverse I gear shift
|
0-10km/h
|
|
Reverse II gear shift
|
0-26km/h
|
|
Dumping height
|
2800mm
|
|
|
880mm
|
|
Dumping reach when at max. dumping height
|
|
Capacity of excavator bucket
|
0.3 m3
|
|
Max. excavating depth
|
4100mm
|
|
Max. excavating radius
|
5000mm
|
|
Revolute angle of movable arm
|
180°
|
|
Engine
|
4102 booster
|
|
Rated power
|
60kw
|
|
Rated speed
|
2400r/min
|
|
Max. steering angle (L/R)
|
35°
|
|
Grade ability
|
45%
|
|
|
4190mm
|
|
Min. turning radius (front wheel center)
|
|
Operation weight
|
6100kg
|
|
Size(L*W*H)
|
7100mm*2090mm*2900mm
|
|
Drive type
|
4WD
|

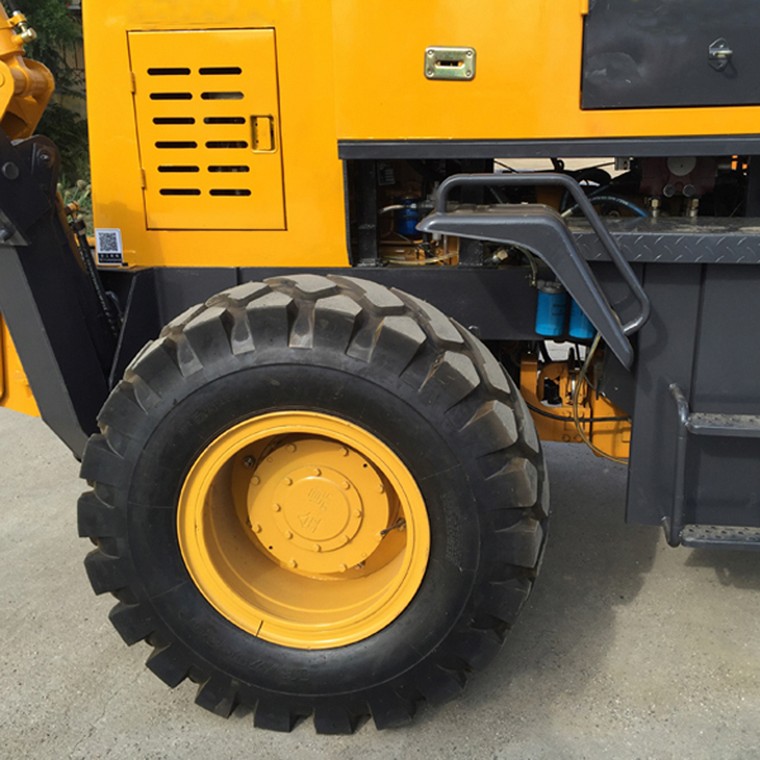

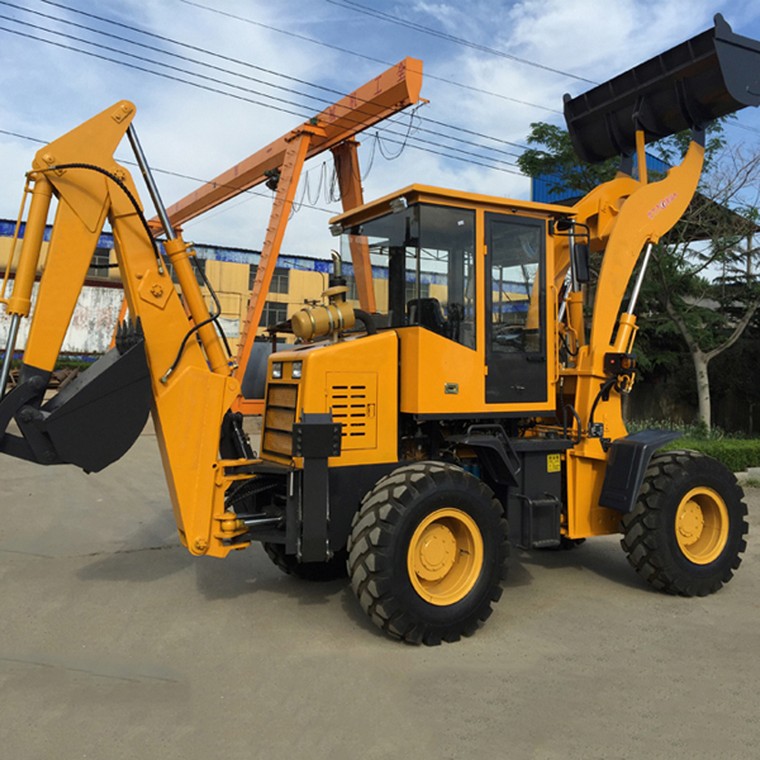

Pictures Of WZ25-20 Backhoe Wheel Rock Loader
