Introduction Of KJYF-96/8 Removable Rescue Capsule
KJYF-96/8 removable escape capsule is an airtight refuge which is isolated, and can effectively maintain one's life. when the catastrophic accident happened, in the case of the escape route is blocked and can not escape,the Rescue capsule is available for people to come in and wait for rescue. The rescue capsule can provide 96h oxygen, food, water and other substances and environmental gas monitoring, toxic and harmful gas treatment, cooling dehumidification, communications, sanitation and so on for people in danger.
KJYF-96/8 removable escape capsule is composed of transition from the equipment compartment, survival cabin, auxiliary compartments. Equipment airlock, auxiliary tanks and dedicated chamber combinations, can be composed of a fixed underground refuge.
Application Environment
KJYF-96/8 removable escape capsule adopts high-strength impact-resistant frame design to form an isolated confined space, foreign able to withstand the high temperature flue gas, isolated toxic and harmful gases, internal and provide oxygen, food, water, removal of poisonous gases, creating the basic conditions to survive and to create conditions for the emergency rescue, to gain time. KJYF-96/8 escape capsule can be applied to high gas coal mine, coal mine exploitation is easy to spontaneous combustion, can also be used for other mountains, underground parking, metro and other areas.
Disaster: coal and gas outburst, gas explosion, cave - and so on.
Altitude: less than 2000m.
Relative humidity: 0~95%(25℃).
Basic performance parameter:
a) Maximum explosion shocks, 1.5MPa;
b) Continuous temperature capability, 55℃, 12hour; 28℃, 84h
Parameters Of KJYF-96/8 Removable Rescue Capsule
Model: KJYF-96/8
Rated No. : 8
Protection time(h): 96
Oxygen concentration(%): 18.5~23
CO2 concentration(%): ≤1
CO concentration(ppm): ≤24
inner temperature(℃) : ≤35
Cabin humidity(%) : ≤85
Outer dimension: L * W x*H (mm) : 6220 *1690 * 1980

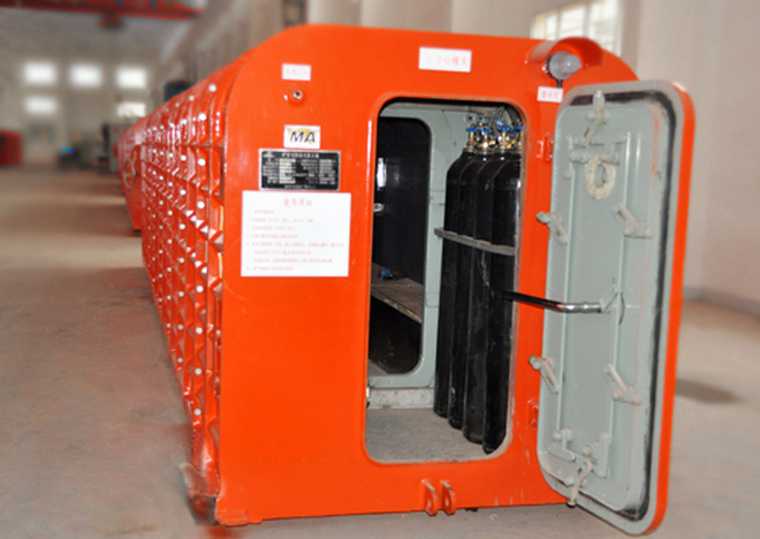

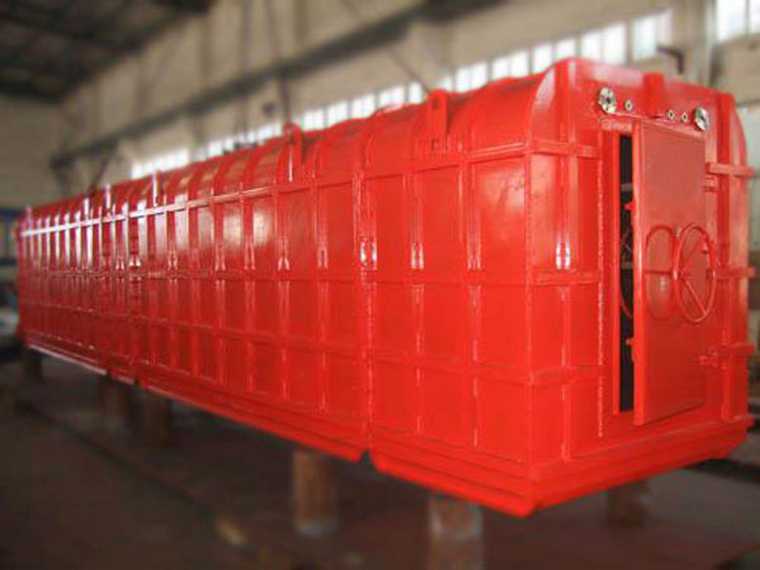

Pictures Of KJYF-96/8 Removable Rescue Capsule
