Introduction of KH530
Color Display Portable Durometer Hardness Measuring Gauge
KH530
Factory Leeb Portable Hardness Tester Price is an innovative improvement
about hardness measurement mechanism and circuit performance based on leeb
hardness measuring instrument product. Portable flexible
replacement，suitable
for the job site, field operations.
1)
Color screen, hardness scale dual display and optional.
2) Add function - custom material
3) Built-in high speed thermal printer, support immediately printing
function. It can save data permanently.
4) Support probe hot-plugging.
Main Parameter of KH530
Color Display Portable Durometer Hardness Measuring Gauge
|
Measuring range
|
HLD (170-960), HRC (17.9-69.5), HB (19-683),
HV (80-1042), HS (30.6-110), HRA(59.1-88),
HRB (13.5-101.7)
|
|
Measuring direction
|
360°
|
|
Hardness Scale
|
HL,HB,HRB,HRC,HRA,HV,HS
|
|
Display
|
Color LCD, two hardness scale dual-display
|
|
Data memory
|
600 groups max.(relative to impact times 32~1)
|
|
Printing paper
|
width is (57.5±0.5)mm, diameter is 30mm
|
|
Battery pack
|
7.4V Li-battery
|
|
Built-in Printer
|
Yes
|
|
Continuous working period
|
about 200hours(With backlight off, no printing)
|
|
Communication interface
|
USB2.0
|
|
Dimensions
|
210 x 85 x 45mm
|
|
Weight
|
about 0.6kg
|
Standard
Configuration of KH530 Color Display Portable Durometer Hardness Measuring
Gauge
|
Item
|
Quantity
|
|
Main body
|
1 pc
|
|
D type impact device
|
1 pc
|
|
Standard test block
|
1 pc
|
|
Cleaning brush (I)
|
1 pc
|
|
Instruction manual
|
1 pc
|
|
Warranty card
|
1 pc
|
|
Small supporting ring
|
1 pc
|
|
Battery charger
|
1 pc
|
|
Paper for printing
|
1 pc
|
|
Instrument box
|
1 pc
|

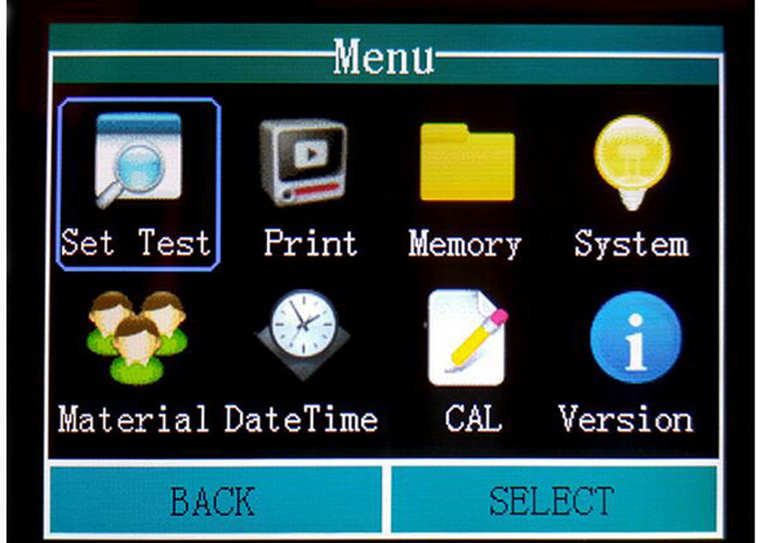

Images of KH530
Color Display Portable Durometer Hardness Measuring Gauge
