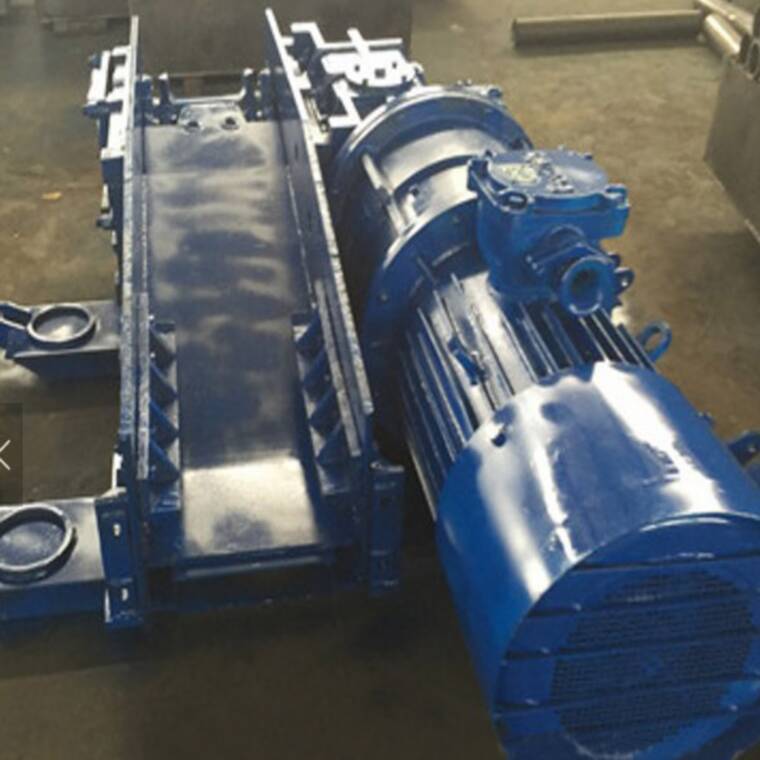

Figure Pictures of SGB520/40 Horizontal Coal Mine Scraper Conveyor
SGB520/40 Horizontal Coal Mine Scraper Conveyor is suitable for the coal mining face and roadway of coal transportation. Can realize thin coal seam working face coal, coal, coal mechanization. At the same time with different types of coal winning machine, push to slip or hydraulic support, can be used in high-grade conventional mining working face, and can be used in the comprehensive mechanized coal mining working face
Technical Parameters of SGB520/40 Horizontal Coal Mine Scraper Conveyor
|
Model
|
SGB420/22
|
SGB420/30
|
SGB420/40X
|
SGB620/40
|
SGB620/55)
|
SGB620/80
|
|
Delivery Capacity (t/h)
|
60
|
80
|
100
|
150
|
150
|
150
|
|
Standard length(m)
|
80
|
100
|
100
|
100
|
100
|
160
|
|
Chain speed(m/s)
|
0.88
|
0.88
|
0.86
|
0.86
|
0.86
|
0.86
|
|
Electric motors
|
Model number
|
JDSB-22
|
JDSB30
|
JDSB40
|
DSB40
|
DSB55
|
DSB40
|
|
Power(kW)
|
22
|
30
|
40
|
40
|
55
|
2*40
|
|
Voltage(V)
|
220/380
|
380/660
|
380/660
|
380/660
|
380/660
|
380/660
|
|
Scraper chain
|
Form
|
Side double-stranded
|
Side double-stranded
|
Side double-stranded
|
Side double-stranded
|
Side double-stranded
|
Side double-stranded
|
|
Chain size(mm)
|
14*50
|
14×50
|
18×64
|
18×64
|
18×64
|
18×64
|
|
Breaking load(KN)
|
≥250
|
≥250
|
320
|
≥320
|
≥320
|
≥320
|
|
Middle Flute size (L x W x H)
|
1200×420×150
|
1200×420×150
|
1200×420×180
|
1500×620×180
|
1500×620×180
|
1500×620×180
|
|
Total weight(t)
|
8.5
|
10.6
|
16
|
17.8
|
17.9
|
28.6
|
Figure Pictures of SGB520/40 Horizontal Coal Mine Scraper Conveyor
