FDZB-1 methane interlocked circuit breaker
The device is perceived by the sensor concentration of methane in the roadway, when dangerous gases exceeding atresia, ventilation and other actions to prevent accidents. By the host, four gas sensors
Related Products- info@chinacoalintl.com
- +86-18660761303
- Please Leave a Message
Payment Terms: TT, Western Union ,Paypal MOQ:Contact us to confirm
Related Products of FDZB-1 methane interlocked circuit breaker
FDZB-1 methane interlocked circuit breaker product introduction
The device is perceived by the sensor concentration of methane in the roadway, when dangerous gases exceeding setting value,atresia, ventilation and other acts to prevent accidents. By the host, 4 gas sensors and 4 digital sensors can reliably achieve locking wind, electricity, gas feature.
FDZB-1 methane interlocked circuit breaker parameters
Explosion proof mark : Exd[ib]ⅠPower supply：AC 660V/380V
Intrinsically safe power output : 2 channels, each DC18V/300mA OVP setpoint 20V,
Overcurrent protection setting value ≤ 400mA
Basic Capacity: 4 analog inputs, 4 digital inputs, 4-way control switch output interfacesAnalog Signal system : 200Hz ~ 1000Hz：200Hz～1000Hz
Switch input signal formats : contact type, current type 0mA/5mA
Off contact capacity : AC 36V/5A
Detection error : ≤ 0.5%
Communication method : FSK modulation and demodulation, frequency shift keying, "0" modulated 2100Hz, "1" modulated to 1300Hz
Transfer rate : 600bps
Backup battery : 28.8V 4.5Ah, Supply time ≥ 2 hours

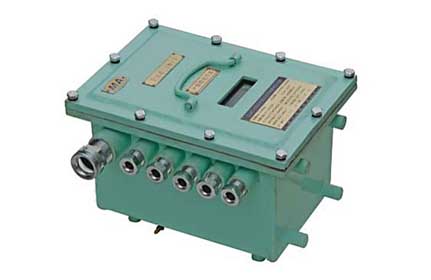

FDZB-1 methane interlocked circuit breaker photo
Because of the production batch, the specific model are different, the above pictures are only for reference , you can contact our sales staff for further details on the specific verification.

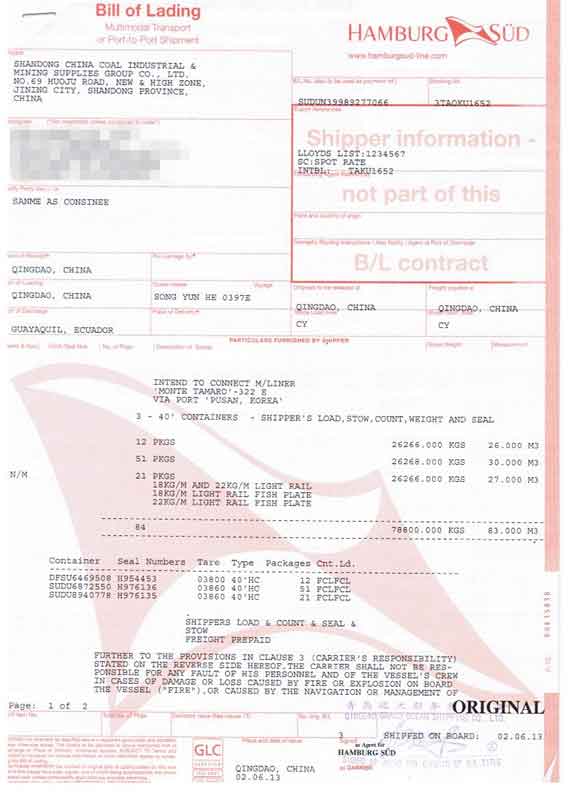

B/L of the History Trading
