Application of ZBL-R630 Reinforced Concrete Rebar Scanner
Machine
1. ZBL-R630 Reinforced Concrete Rebar Scanner
Machine used to scan the location, distribution, direction, and diameter of the
rebar and the thickness of concrete cover in concrete structure projects such
as bridges, tunnels, walls etc.
2.Detecting Ferro magnets in
non-ferromagnetic media;
3.Evaluating the quality of construction;
4.Evaluating the integrity and the
durability of existing structures;
5.Testing the quantity of rebar when
evaluating and developing the old structure;
6.Testing the distribution and direction of
electric cables and plumbing inside walls and floors.
Feature Of ZBL-R630 Reinforced Concrete Rebar Scanner Machine
1.Visual fine-scan mode, profile-scan mode,
grid-scan mode ensure that the data is correctly measured and test results are
rapidly produced;
2.Accurately detects the location, spacing
distance, direction, and distribution of rebar (Grid);
3.Exact measuring of the concrete cover,
and the rebar diameter;
3. ZBL-R630 Reinforced Concrete Rebar Scanner Machine can automatically save data such as the
location, spacing distance, diameter, distribution, and the concrete cover of
rebar.
5.Display component number, scanning data,
statistical data, and distribution of rebar (fine, profile, and grid);
7.Test data may be transferred to computer
via USB port, allowing real time analysis of data;
8.Soft backlight, suitable in low light
conditions;
9.Rechargeable lithium battery; convenient,
value for money, and environmentally friendly.
Main Parameter of ZBL-R630 Reinforced Concrete Scanner
Machine
|
Model
|
ZBL-R800
|
ZBL-R650
|
ZBL-R630A
|
ZBL-R630
|
ZBL-R620
|
|
Protective layer thickness range (mm)
|
φ6~φ50
|
φ6~φ50
|
φ6~φ50
|
φ6~φ50
|
φ6~φ50
|
|
Max range(mm)
|
First range
|
3~98
|
6~90
|
3~98
|
6~90
|
6~90
|
|
Second range
|
3~196
|
10~180
|
3~196
|
10~180
|
10~180
|
|
Max allowed error
|
±1(mm)
|
3~79
|
6~70
|
3~79
|
6~79
|
6~79
|
|
±2(mm)
|
57~119
|
51~110
|
57~119
|
60~119
|
60~119
|
|
±4(mm)
|
70~196
|
70~180
|
70~196
|
70~180
|
70~180
|
|
Applicable range(mm)
|
φ6~φ50
|
φ6~φ32
|
φ6~φ50
|
φ6~φ32
|
φ6~φ32
|
|
Max allowed error for diameters
measurement
|
±1
|
|
Common type
|
ü
|
|
Closely bars type
|
ü
|
|
Transverse section bars
|
ü
|
×
|
|
Grid type
|
ü
|
×
|
|
Signal wave
|
×
|
Real time display
|
×
|
|
Scan range
|
Borderless
|
|
Data correction
|
Automatic
|
Manually
|
×
|
|
Data transfer
|
U disk
|
USB
|
U disk
|
USB
|
|
Wireless transfer
|
ü
|
×
|
ü
|
×
|
|
LCD
|
160×128
|
320×240
|
160×128
|
|
Power
|
Built-in battery
|
DC:9V 5 batteries
|
|
Size (mm)
|
212×134×50
|
190×135×52
|
212×134×50
|
190×135×52
|
|
Weight(kg)
|
0.9
|
1.1
|
0.9
|
0.9
|
0.7
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

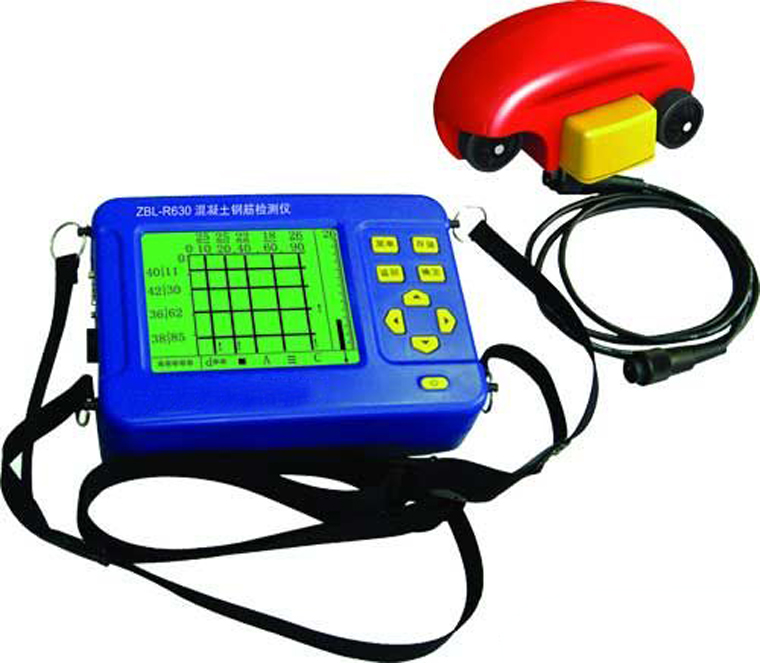

Pictures of ZBL-R630 Reinforced Concrete Rebar Scanner Machine
