Introduction of 3Ton Moving Crawler Hoist Hydraulic Telescopic Diesel Track Spider Crane
Crawler Spider Crane combines the space-saving qualities of a spider crane with the powerful lifting capabilities of a pick-and-carry crane inside one practical machine. This compact equipment offers an alternate solution to the difficulties associated with lifting in areas with restricted access.
Parameter of 3Ton Moving Crawler Hoist Hydraulic Telescopic Diesel Track Spider Crane
|
Specification
|
2.95t _
|
|
Maximum working radius
|
7.8m × 0.2t _
|
|
Maximum ground lift
|
9.2mX0.8t _ _ _
|
|
Max underground lift
|
---
|
|
winch
|
Hook up speed
|
0-8m/min
|
|
Wire Rope Specifications
|
Φ8mm×45m
|
|
Telescopic device
|
Boom form
|
5 -section boom , U-shaped high-strength manganese
|
|
Boom length/time
|
2.8 m- 8.2 m/2 2 sec
|
|
undulating device
|
Boom angle/time
|
0-7 5 °/13sec
|
|
gyratory device
|
Rotation angle/speed
|
0-360° (continuous)/60sec
|
|
outrigger
|
Outrigger Action Form
|
Manual unscrewing + hydraulic automatic support (two legs)
|
|
Maximum extension (mm)
|
4010 (long) X 3260 (rear) , (front)
|
|
walking device
|
way of walking
|
Hydraulic motor drive, two-speed
|
|
Walking speed
|
0-2.5km/h
|
|
Gradeability
|
20° (36%)
|
|
motor
|
Voltage
|
AC380V
|
|
engine
|
Producer
|
Chang Chai
|
|
Type/displacement
|
EV80/F195
|
|
Start method
|
Electric start
|
|
Startup performance
|
-5°C~40°C
|
|
fuel/volume
|
Diesel / 8 L
|
|
battery capacity
|
12v 45AH
|
|
Fuel consumption
|
274g/kW-h
|
|
noise level
|
Rated speed≤81.5dBA (1m)
|
|
Emission Standards
|
Country II
|
|
operating system
|
Type of operation (jib/outrigger), manual travel
|
Manual operation, manual walking + remote control (optional)
|
|
Operating characteristics
|
Comai hydraulic system (optional)
|
|
The standard configuration
|
Diesel engine and electric motor (dual power)
|
|
Vehicle size
|
Length 2830*width 800*height 1650
|
|
Craftsmanship
|
Paint assembly process
|

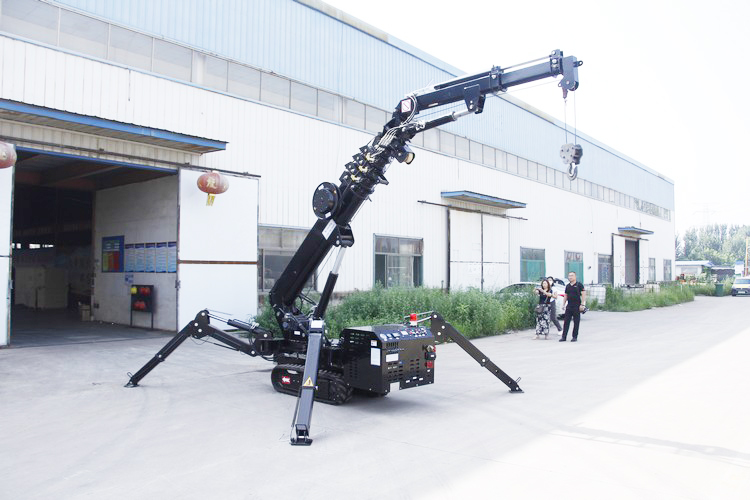

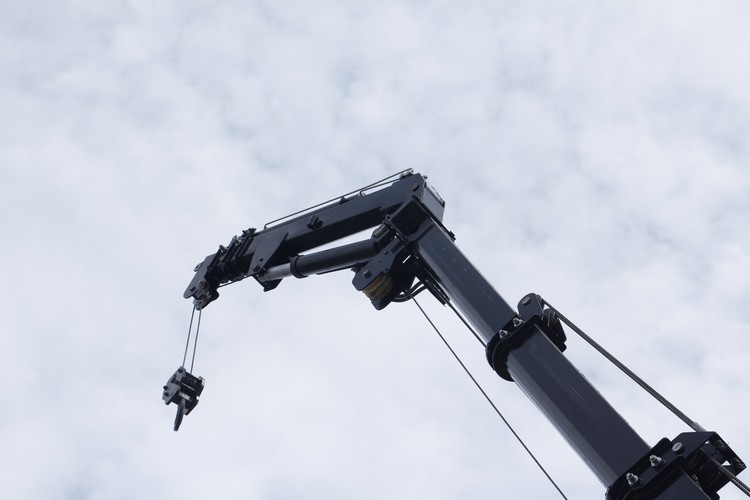

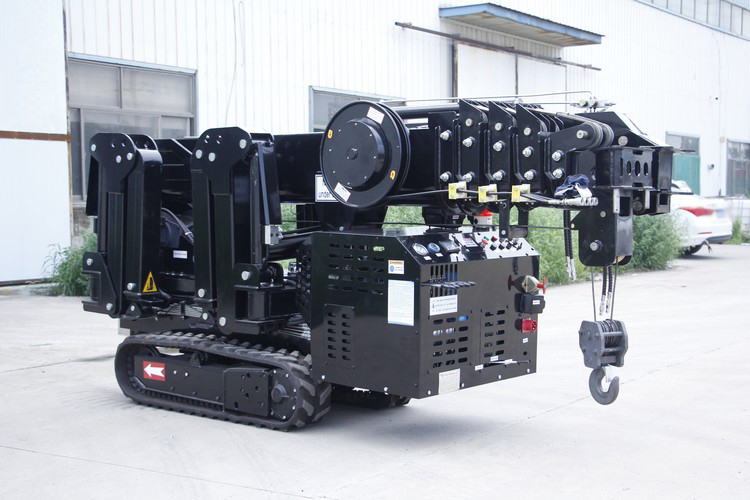

Photos of 3Ton Moving Crawler Hoist Hydraulic Telescopic Diesel Track Spider Crane
