Introduction Of Building Machine Automatic Rendering Wall Plastering Machine
The Wall Plastering Machine is a machine that automatically plasters the wall surface. The wall cleaning machine belongs to the field of construction machinery. Its advantages and practicality are strong. It eliminates the need for management, pumping and other processes in the construction of plastering wall ash, saving labor, time and convenience. It is easy to operate and has excellent engineering quality, especially for workers who do not have any experience and skills in wall cleaning.
Advantages Of Building Machine Automatic Rendering Wall Plastering Machine
1. wall rendering machine can reach the very top of the roof.
2.New Alluminium Alloy main unit and stainless steel material
3.Original gear rack driving system enable output of main power is more peaceful and stable.
4.Remote Controlkeep working in safety
5.Three mini vibrators on the Machine can avoid hollowness of walls, ensured rendering quality and fully adhesive.
6. Intelligent Wall Plastering Machinecan make the wall smooth one time within 1min.
7. Machine equipped with omni-directional wheels. You can move it anywhere easily.
8.adopt good quality Panasonic PLC ,it can judge the operation mode of different condition
9.Sincola used it special Power head which is researched and developed by itself to drill the accessories .highly increase the manufacturing precision and decrease working error or tolerance of auto rendering machine.
10.All Sincola machine's Gas Spring are installed with special protecting device. highly increase the life span of the machine
Parameter Of Building Machine Automatic Rendering Wall Plastering Machine
|
Name
|
parameters
|
|
Color
|
Yellow, green, blue, white
|
|
Voltage
|
DC48V
|
|
Power supply method
|
lithium iron phosphate battery
|
|
Standard battery capacity
|
35AH
|
|
Angle adjustment method
|
Sensor with electric cylinder
|
|
Parameter display and setting method
|
Touch Screen Monitor
|
|
Elevate the motor
|
DC48V0.75kw brushless servo motor
|
|
Braking method
|
Electric brake
|
|
Robot arm dimensions mm
|
242*120*18500
|
|
Host dimensions (L*W*H) mm
|
700*550*1050
|
|
Overall dimensions (L*W*H) mm
|
850*550*1920/895*550*192
|
|
Spatula length m
|
1.3 meters
|
|
Leveling height m
|
3m/4m
|
|
Total weight Kg
|
187/210
|
|
Package size and weight /3m
|
1050mm*660mm*2090mm/236kg
|
|
Package size and weight /4m
|
1100mm*660mm*2090mm/266kg
|

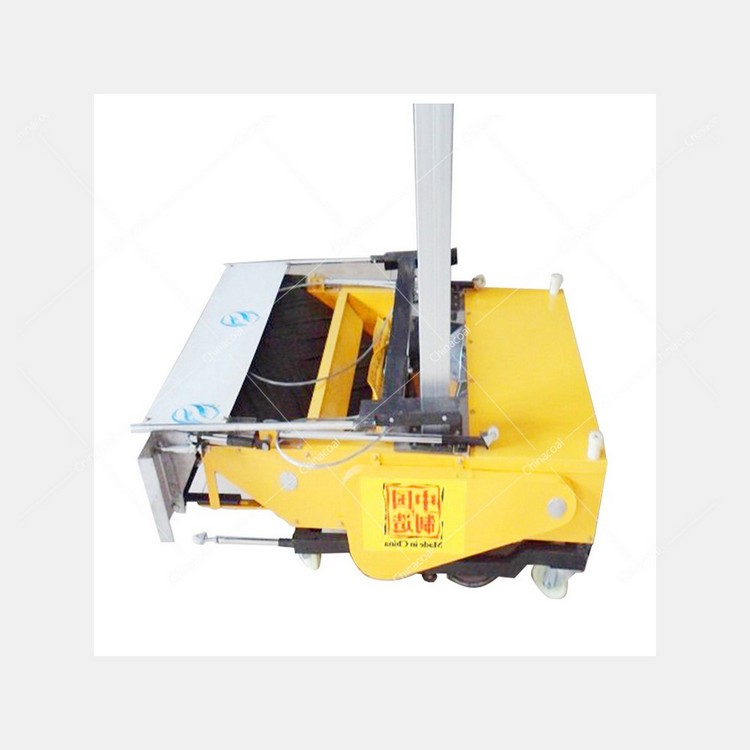

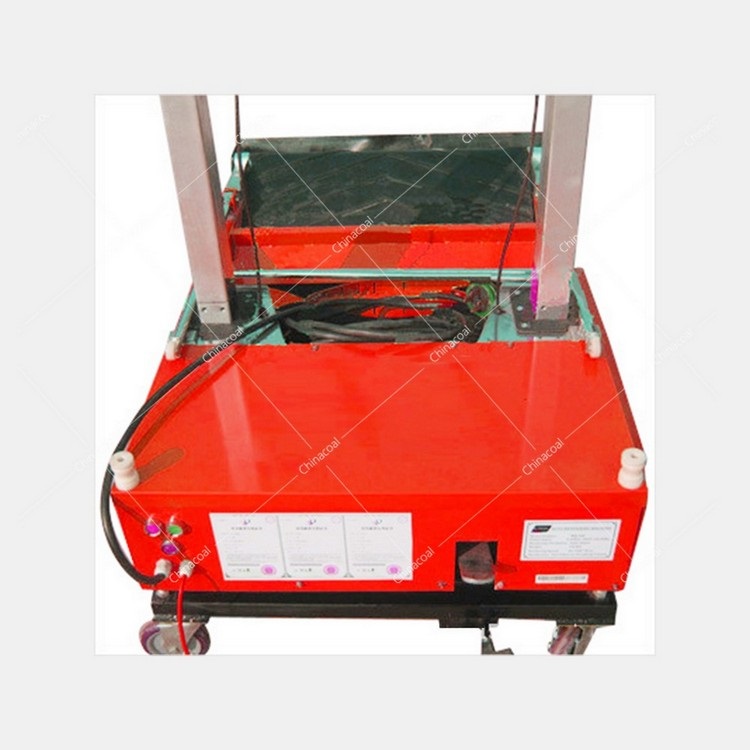

Photos Of Building Machine Automatic Rendering Wall Plastering Machine
