Introduction of 1-2 Workers Air-supplying Long-pipe Respirator
Work with gas masks, blowers, and industrial 10m, 15m, and 20m air ducts. The air-supplying long-pipe respirator is an air-supplying personal protective equipment. When handling hazardous chemicals, continuous air is provided through the air duct to protect the respiratory system from harm.
Main Parameter of 1-2 Workers Air-supplying Long-pipe Respirator
|
Model
|
1-2 workers
|
3-4 workers
|
5-6 workers
|
|
Air supply
|
12m3/h
|
18m3/h
|
26.5m3/h
|
|
Wind pressure
|
7.5KPa
|
9KPa
|
10.78KPa
|
|
Vacuum degree
|
-5KPa
|
-6.5KPa
|
-9KPa
|
|
Using wind pressure
|
＜6KPa
|
＜7KPa
|
＜7KPa
|
|
Voltage
|
220V AC/50HZ
|
220V AC/50HZ
|
220V AC/50HZ
|
|
Power
|
120W
|
180W
|
250W
|
|
Rotating speed
|
2820r/min
|
2820r/min
|
2820r/min
|
|
Capacitance
|
4uF 500V AC
|
4uF 500V AC
|
6uF 500V AC
|
|
Current
|
0.9A
|
1.1A
|
1.6A
|
|
Protection
|
IP54
|
IP54
|
IP54
|
|
Insulation
|
B
|
B
|
B
|
|
Air supply method
|
Positive pressure supply
|
Positive pressure supply
|
Positive pressure supply
|
|
Air supply
|
30L/min～350L/min
|
30L/min～350L/min
|
30L/min～350L/min
|
|
Dimensions
|
300×250×240mm
|
300×250×240mm
|
300×250×240mm
|
|
Material
|
Stainless steel
|
Stainless steel
|
Stainless steel
|

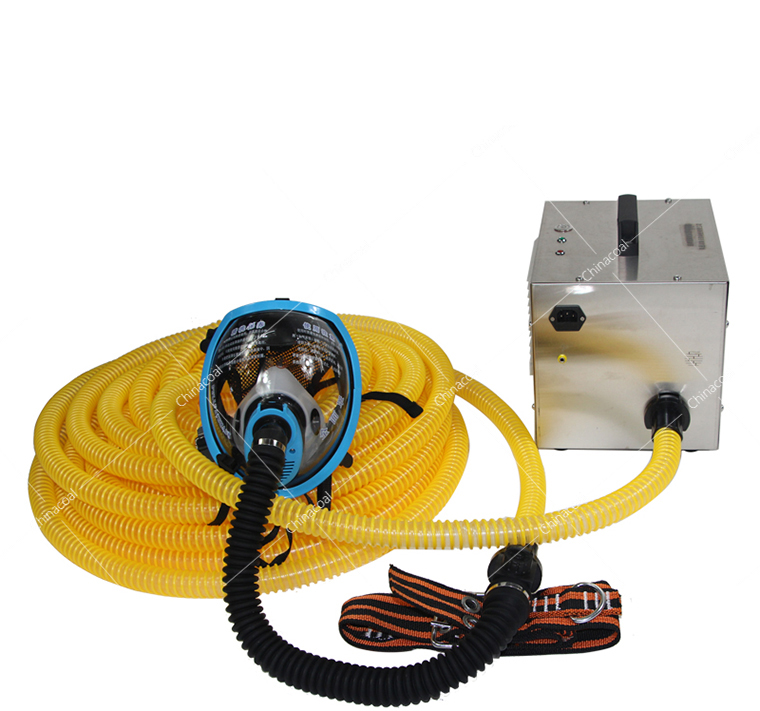

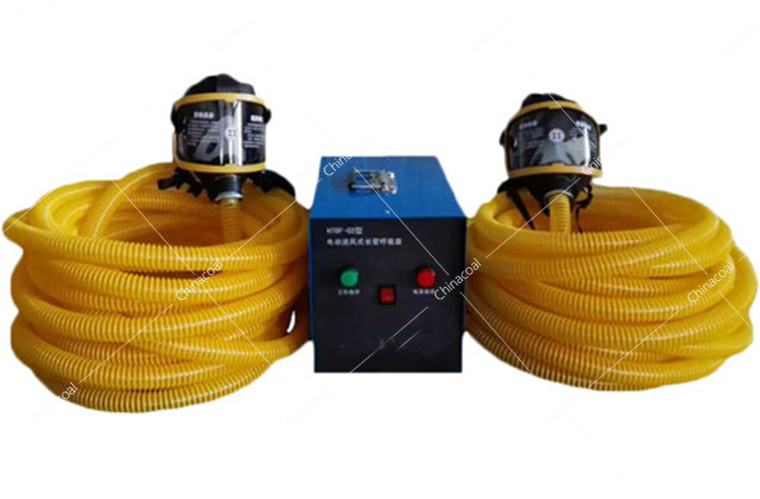

Photos of 1-2 Workers Air-supplying Long-pipe Respirator
