Mining Hydraulic Cable Hauler Cable Monorail Crane

Mine hydraulic cable hauler (also known as cable monorail crane) is a special transportation device used for hanging and moving the cable, emulsion high pressure hose and water pipe of coal mine fully

Related Products

Introduction of Mining Hydraulic Cable Hauler Cable Monorail Crane

Mine hydraulic cable hauler (also known as cable monorail crane) is a special transportation device used for hanging and moving the cable, emulsion high pressure hose and water pipe of coal mine fully mechanized mining face. Under the roof of one side of the roadway in the fully mechanized mining face, hanging suspended rails with bolts and chains. The hauler hangs all the cables and high-pressure hoses and water pipes on it, and uses the working surface emulsion pumping station as power. The cable, high-pressure hose and water pipe are hung and moved along the roadway by a hydraulic stepping push-pull device consisting of a cylinder and a connecting rod. The device avoids the messy placement of cable, reduces the space occupied by the cable and the number of movements of the cable, and avoids manual dragging cable, which greatly reduces the labor intensity and work efficiency of the worker.

Advantges of Mining Hydraulic Cable Hauler Cable Monorail Crane



1. The cable only needs to be laid once, and the cable moves forward and backward only by manipulating the handlebars. The operation is convenient and flexible, which greatly reduces the labor intensity of the workers.

2. Not only can the cable be hung, but also the high-pressure hose and water pipe of the emulsion can be hung, and the liquid pipe and the cable are layered and suspended; the pipe arrangement in the roadway is not only neat and beautiful, but also avoids the influence of the vibration of the high-pressure hose on the cable interference. .

3. The hydraulic working medium is the power source (emulsion) of  the fully mechanized mining face, which is not only convenient and safe, but also explosion-proof and flame retardant.

4. It is equipped with a locking device to ensure the safety of the cable tow monorail crane when the stepping mechanism brake device fails or when the roadway inclination angle is large.

5. The design is novel, the operation is simple, safe and reliable.

Parameter of Mining Hydraulic Cable Hauler Cable Monorail Crane



 Item

Unit

Parameter

Applicable roadway inclination

0~18

Working medium



Emulsion

Cylinder maximum thrust

kN

100

Maximum operating speed

m/s

0.1

Maximum static braking force

KN

80

External emulsion working pressure

MPa

21~31.5

Trailing length (standard configuration)

m

150

Operation method



Manual

Dimension (width × height)

m

0.58×0.60

Track model



14# I-beam

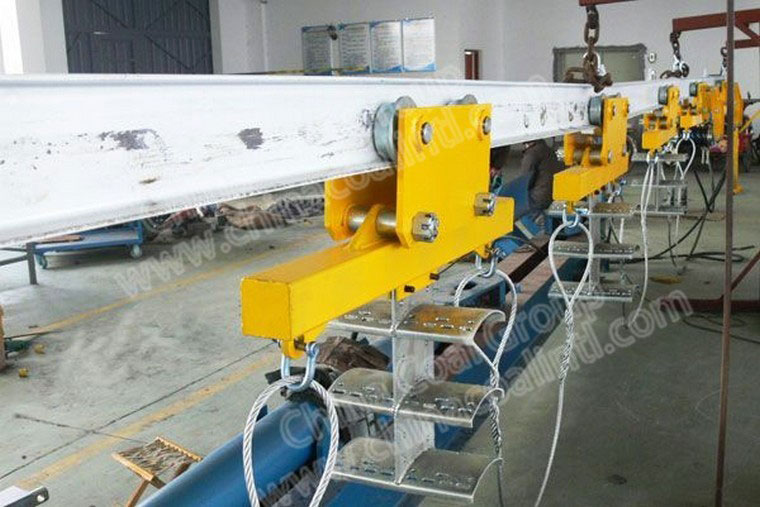

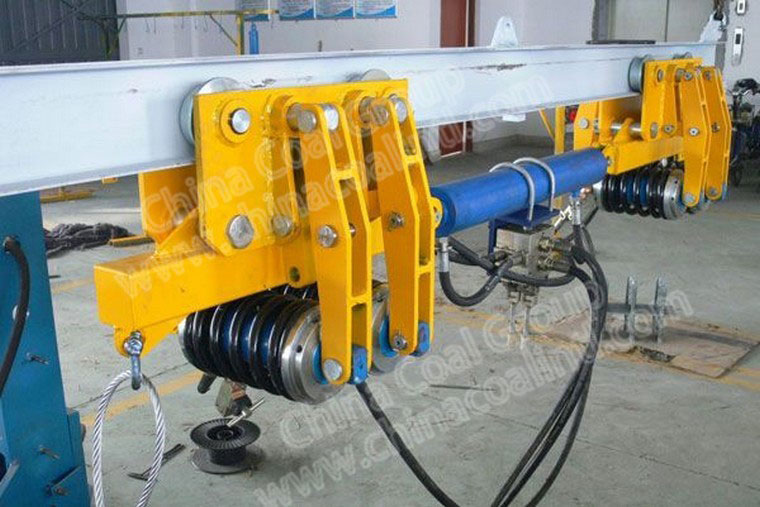

Photos of Mining Hydraulic Cable Hauler Cable Monorail Crane

Mining Hydraulic Cable Hauler Cable Monorail CraneMining Hydraulic Cable Hauler Cable Monorail Crane
