Introduction of CTY(L)12/6, 7, 9G 12 Tons battery locomotive for underground coal mines
The explosion-proof battery motor car has its own power supply and can be used with the mining cart. Any place with track can be used, so it has strong adaptability and good maneuverability, and is especially suitable for mine excavation work. The explosion-proof battery motor car adopts a no-wire traction network system, which has good safety performance and simple power supply system. It is suitable for transportation systems and roadway excavation transportation with small output and irregular roadway.
Specifications of CTY(L)12/6, 7, 9G 12 Tons battery locomotive for underground coal mines
|
Model
|
CTY2.5/6,7,9G
|
CTY5/6,7,9G
|
CTY8/6,7,9G(B)
|
CTY(L)12/6, 7, 9G
|
CTY15/6、7、9G(B)
|
CTY18/6、7、9G(B)
|
|
Self Weight
|
2.5 tons
|
5t
|
8
|
12 tons
|
15t
|
18t
|
|
Track Gauge
|
600, 762 or 900mm
|
60,762 or 900mm
|
600,762,900
|
600, 762 or 900mm
|
600、762或900mm
|
600、762或900mm
|
|
Traction
|
2.55kN
|
7.06kN
|
11.18
|
12.83
|
16.48kN
|
18.47kN
|
29.4kN
|
|
Max Speed
|
4.54km/h
|
12.26kN
|
19.62
|
29.43kN
|
36.18kN
|
44.15kN
|
|
Max. Traction
|
6.13kN
|
7km/h
|
6.2
|
7.8
|
8.7km/h
|
9.6km/h
|
9.8km/h
|
|
Power Supply Device
|
Voltage
|
48V
|
90V
|
110,132
|
140,144
|
192V
|
256V
|
208V
|
|
Capacity
|
308 or 330Ah
|
385Ah
|
440
|
560Ah
|
620Ah
|
730Ah
|
|
Power
|
3.5kw*1
|
7.5 kW*2
|
11×2
|
15×2
|
22kW*1
|
30Kw x 2
|
45Kw x 2
|
|
Size
|
Length
|
2330mm
|
2850mm
|
44,704,490
|
5100mm
|
5200mm
|
5100mm
|
|
Width
|
914,1076 or 1212mm
|
920,1082/1220mm
|
1,062,119,012,121,350
|
1050, 1212 or 1350mm
|
1500mm
|
1500mm
|
|
Height
|
1550mm
|
1550mm
|
1600
|
1600mm
|
1920mm
|
1900mm
|
|
Wheelbase
|
650mm
|
850mm
|
1100
|
1150
|
1220mm
|
1400mm
|
2100mm
|
|
Wheel Diameter
|
Φ460mm
|
Φ520mm
|
Φ680
|
Φ600,Φ680
|
Φ680mm
|
Φ680mm
|
Φ600mm
|
|
Min. Turning Radius
|
5m
|
6m
|
7
|
10m
|
15m
|
20m
|
|
Controller
|
Resistance or Pulsing speed regulation
|
Resistance or Chopped wave
|
Resistance,IGBT or Frequency conversion
|
Resistance, IGBT or AC Converter
|
Resistance, IGBT or AC Converter
|
Frequency conversion or chopper speed regulation
|
|
Brake Mode
|
Mechanical
|
Mechanism or hydraulic pressure
|
Mechanical
|
Mechanical and Pneumatic Brake
|
Mechanical and Pneumatic Brake
|
Mechanical, electrical, air brake
|

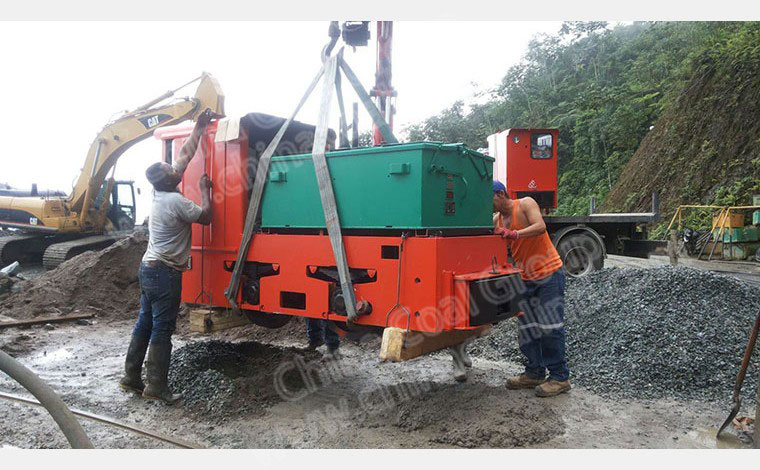

Figure Photos of 12 MTs double cabs battery locomotive for underground coal mines
