Introduction of Ride On Type Concrete Power Trowel
1. Ride on type concrete power trowel, greatly reducing the labor intensity and improve work efficiency.
2. Installed two simultaneous disk wiping, quick to mention pulp.
3. The two-way ten lobes with the weight of 400kg could reach better compaction effect to the concrete ground.
4. Mechanical steering operating system, responsive, easy to operate, and comfortable.
5. With variable gear, high-grade smear speed of up to 160 rev / min to make light yield faster, better, low-grade pulp can wipe disk mention more powerful.
6. Equipped with high-horsepower electric start engine, to provide a strong and reliable power.
7. A safety shut-off switch that can rapidly turn off the engine, to ensure safety.
8. The control screw to adjust the blade angle.
9. Sprinkler and lighting designed to facilitate construction.
10. Fitted with a lift walking round, easy to change smear, for wiping the disc as well as walking.
Parameter of Ride On Type Concrete Power Trowel
|
Model
|
ZM-90
|
|
Power
|
Honda GX690 24HP
|
|
Blade size
|
310*150*2mm
|
|
Blade quantity
|
10
|
|
Blade pitch
|
65-120mm
|
|
Disc diameter
|
900mm
|
|
Dimension
|
1900*950*1180mm
|
|
Total weight
|
430kg
|
|
Rotational speed
|
140r/min-180r/min
|
|
Operating mode
|
Driving type
|
|
Starting system
|
Electric start
|
|
Fuel Tank Capacity
|
20L
|
|
Lubricating oil volume
|
1.5L
|
|
Engine type
|
Two cylinder oil air-cooled
|
|
Automatic water spray
|
Yes
|
|
Construction lighting
|
Yes
|
|
Walking wheels
|
Lift type
|

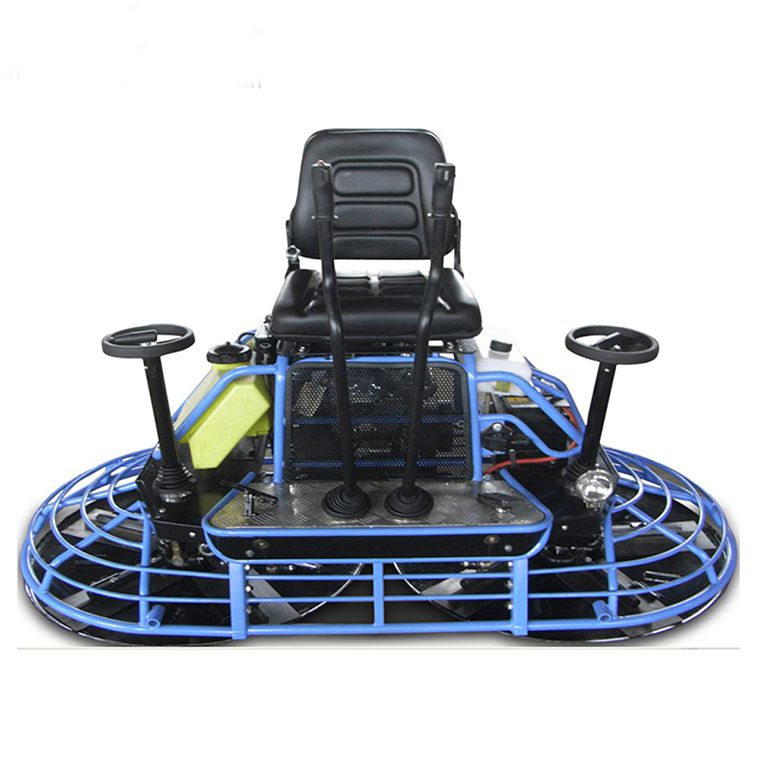

Pictures of Ride On Type Concrete Power Trowel
