Introduction Of Railway Feet
Railway feet application:
with vertical parallel frame combination, suitable for high precision machinery and instrument not verticality between inspection and machine inspection. All items within the machine tool is used to check not vertical degree is an important tool.
Railway feet Features:
1.Good rigidity, high hardness, high resistance to wear.
2.Uniform structure, small linear expansion coefficient, internal stress disappear completely, not deformation, so the precision is high.
3.Not afraid of acid, alkali, erosion, will not rust, not oil, not easy to stick dust, maintenance, maintenance convenience simple, long service life.
4.Not magnetized, measurement can move smooth and without sluggish acerbity feeling, is not affected by damp, plane said good.
5.There will be no scratches, do not stop the constant temperature conditions, the amount can maintain a temperature measurement accuracy at room temperature.
Railway feet consists of: its structure by the ruler, scale ruler and scale amusement box body composition, foot-shaped profile as a duplex structure, was square tube-shaped, with the outer edge of the top and bottom sections extending outwardly in the outer inside opened a notch, its stainless steel scale ruler inserted within the slot, and then ends with a pin in its fixed frame ruler middle with swim, swim deputy ruler fixed on the frame, side panels, side panels are fixed adjusting bolt, ruler and ends with vane probe, the entire support from the foot showed a T-shaped structure.

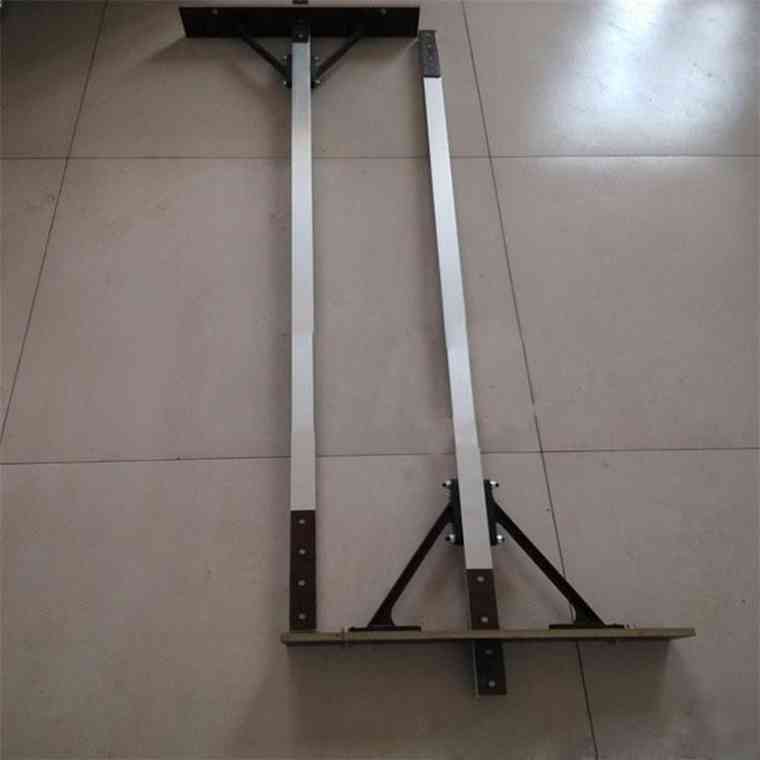

Pictures Of Railway Feet
