Introduction of 2JP(B)-15 Explosion-proof Manual Anchor Scraper Winch
2JP(B)-15 Explosion-proof Scraper Winch is mainly used to metal, chemical, contribution
and the mine etc, and the underground working, such as the transportation
etc.
Meanwhile, the scrape winch is just suitable to the parallel transportation
on ground, or the slopes within 500, can not be used for hoisting machines.
Feature of 2JP(B)-15 Explosion-proof Manual Anchor Scraper Winch
1.scraper winch
2.high quality and excellent performance
3.Widely used in mine
4.Standard packing and short delivery
Remark: The scraper winch can not be used as the lifting equipments. If you want to lifting things,
please choose the lifting winch, such as JD winch, JH winch, etc.
By way of the hoist is around on the wire rope drum traction for a
round-trip movement to rake the material.
Main Parameter of 2JP(B)-15 Explosion-proof Scraper Winch
|
项目
Item
|
unit
|
Model
|
|
2JPB-7.5
|
2JPB-15
|
2JPB-22
|
2JPB-30
|
2JPB-55
|
|
2JP-7.5
|
2JP-15
|
2JP-22
|
2JP-30
|
2JP-55
|
|
主钢丝绳平均拉力不少于 Main wire rope Min. tension
|
N
|
8000
|
14000
|
20000
|
275000
|
44000
|
|
平均速度
Average speed
|
Main wire rope
|
±5%m/s
|
1.0
|
1.10
|
1.20
|
1.20
|
1.20
|
|
Secondary wire rope
|
1.0
|
1.50
|
1.50
|
1.60
|
1.80
|
|
钢丝绳直径
Wire rope diameter
|
Main wire rope
|
mm
|
9.3
|
12.5
|
14.0
|
15.5
|
18.5
|
|
Secondary wire rope
|
9.3
|
11.0
|
11.0
|
14.0
|
16.0
|
|
卷筒
Drum
|
Dia.
|
mm
|
205
|
225
|
280
|
280
|
350
|
|
Rim diameter
|
mm
|
350
|
435
|
510
|
510
|
625
|
|
Width
|
mm
|
80
|
125
|
160
|
160
|
180
|
|
容绳量
Wire Rope Size
|
Main Drum
|
m
|
45
|
80
|
80
|
80
|
100
|
|
Secondary Drum
|
m
|
45
|
100
|
100
|
110
|
130
|
|
电动机
Electric motor
|
Model
|
/
|
YBK-132M-4
|
YBK-160L-4
|
YBK-180L-4
|
YBK-200L-4
|
YBK-250M-4
|
|
/
|
Y-132M-4
|
Y-160L-4
|
Y-180L-4
|
Y-200L-4
|
Y-250M-4
|
|
Power
|
KW
|
7.5
|
15
|
22
|
30
|
55
|
|
Rotating speed
|
r/min
|
1440
|
1460
|
1470
|
1470
|
1470
|
|
外形尺寸
Dimensions
|
L
|
mm
|
1210
|
1525
|
1600
|
1650
|
2070
|
|
W
|
mm
|
565
|
660
|
730
|
820
|
1010
|
|
H
|
mm
|
490
|
620
|
640
|
700
|
890
|
|
Total weight (excluding skips and pulleys)
|
kg
|
390
|
660
|
980
|
1155
|
2125
|

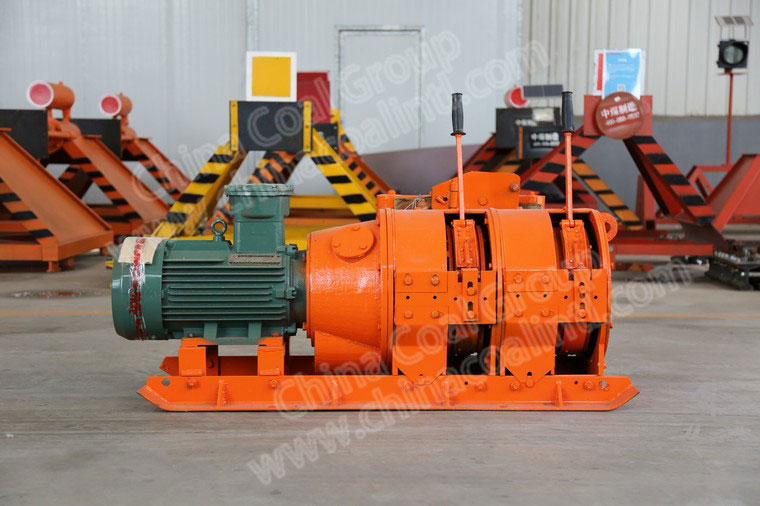

Pictures of 2JP(B)-15 Explosion-proof Manual Anchor Scraper Winch
