Introduction of JK Mining Electric High Speed Winch
JK Mining Electric High Speed Winch use for crane and installation
industry. JK Mining Electric High Speed Winch has the following features:
1.Final Drives gears are made with heat-treated carbon steel
offering greater strength.
2.Precision needle bearing used in high-load areas offering lower
friction level and longer life.
3.High impact case providing weather resistance and protection for
internal components.
4.Durable hook safety snap keeping the loads attached.
Main Parameter of JK Mining Electric High Speed Winch
Model
|
JK1
|
JK3
|
JK5
|
JK8
|
JK10
|
Line pull capacity (kg)
|
1000
|
3000
|
5000
|
8000
|
10000
|
Wire rope average speed (m/min)
|
30
|
30
|
28
|
20
|
19
|
Wire rope Dia.( mm):
|
9.3
|
15.5
|
21.5
|
26
|
30
|
Reduction box
|
Type
|
JZQ350
|
JZQ500
|
JZQ650
|
JZQ650
|
JZQ750
|
Transmission ratio
|
31.5
|
23.34
|
40.17
|
23.34
|
23.34
|
Drum (mm)
|
Diameter()
|
190
|
325
|
406
|
500
|
550
|
Length
|
360
|
520
|
840
|
900
|
1000
|
Capacity(m)
|
110
|
200
|
300
|
300
|
450
|
motor
|
Type
|
Y132M-4
|
YZR225M-8
|
YZR250M1-8
|
YZR250M1-6
|
YZR250M2-6
|
Power(kW)
|
7.5
|
22
|
30
|
37
|
45
|
Rotating speed(r/min)
|
1440
|
715
|
864
|
960
|
960
|
Hydraulic Brake
|
YWZ-200/25
|
YWZ-200/25
|
YWZ-300/45
|
YWZ-300/45
|
YWZ-400
|
Dimension (cm)
|
945x97x60
|
147x140x95
|
186x166x95
|
240x180x110
|
250x190x120
|
Weight(kg)
|
460
|
1200
|
2700
|
4000
|
5000
|

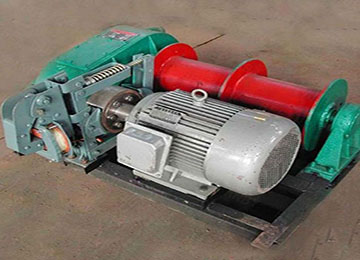

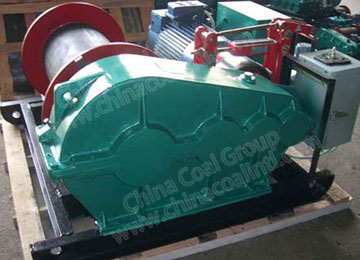

Pictures of JK Mining Electric High Speed Winch
