Introduction Of Rail Wagon Turntable
Rail Wagon Turntable Feature:working efficiency high, cover an area of an area small. Harvesters to stable and reliable, and can realize less roadway, thus saving funds, accelerate the construction speed.
Harvester electric rotary machine is mine car circulation system in changing the direction of the car, it and other equipment supporting the use, easy to realize wellhead mechanized transport.
The utility model involves mining equipment, in particular to a rotatable turntable track to solve the existing mine hydraulic support in U-turn steering caused human and material resources tremendous waste issues, including upper and lower turntable turntable, turntable on the bottom center of the fixed hollow columns, parallel to the upper surface of the track; the center above the turntable has a central wheel, the center wheel set of hollow columns, the lower surface of the turntable uniform circumferential ring have side, upper and lower turntable relative position on the turntable are located with positioning holes.The utility model has simple structure, low processing cost of materials; Production process is simple and convenient installation; Wheel bearing capacity strong, simple structure and can be reused many times, less maintenance workload; Save process, save labor, keep the original integrity of support, reduced the empty of roadway roof area, extend the service life of the mining area rail lane; In short, in actual use effect is good, has certain popularization value and use value, can be widely used in mine.
Mine Railway Turntable Principle: Turntable makes use of the low speed of stable and reliable wheel make the harvesters automatic large range to and curvature radius can be very small (the machine disc only 3 meters in diameter).
Mine Railway Turntable Application:Adapted to the site restricted the ground station and the bottom change the direction of harvesters.

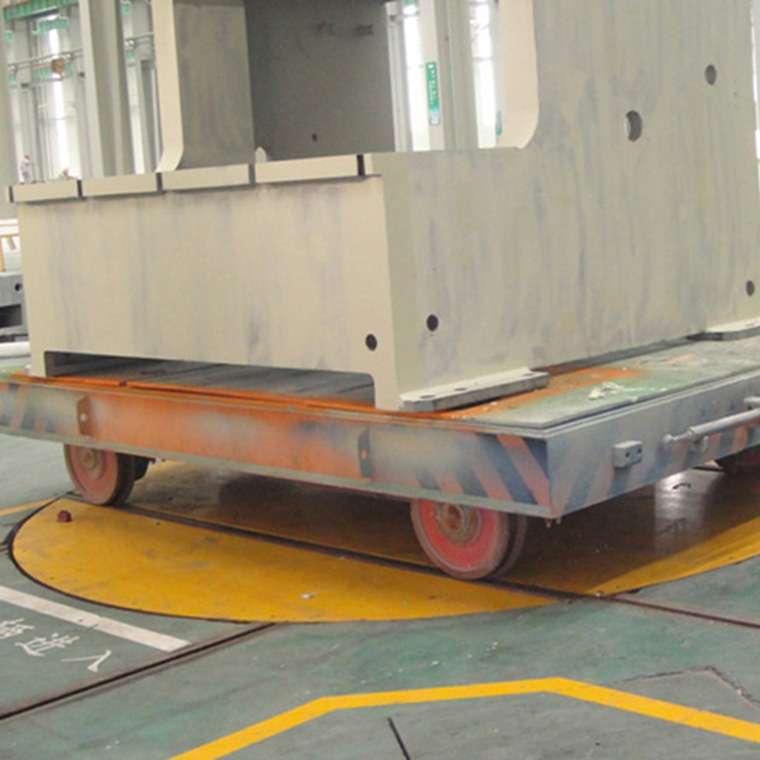

Pictures Of Rail Wagon Turntable
Because of the production batch, the specific model are different, the above pictures are only for reference , you can contact our sales staff for further details on the specific verification.
