CTY5/6,7,9G(B) 5 Tonner CTY Battery Locomotives

The feature of 5 Tonner CTY Battery Locomotives is traction invert control the starting, speed, direction change and braking, which decreased energy consumption, having good electric-saving effect.

Related Products

Introduction of 5 Tonner CTY Battery Locomotives

The feature of 5 Tonner CTY Battery Locomotives is traction invert control the starting, speed, direction change and braking, which decreased energy consumption, having good electric-saving effect. Invert have shake-proof, damp-proof and dust-proof function. The control loop is controlled by 24V, 0.5A light current, with good safety performance and interlock function when direction change, which avoid damage if driver using anti-vehicle braking.
The locomotive is with simple construction, low defective rate, easy to maintenance.

Main Parameter of 5 Tonner CTY Battery Locomotives

Model CTY5/6,7,9G
Adhesive  Weight 5t
Gauge 60,762 or 900mm
Traction Force 7.06kN
MAX Traction Force 12.26kN
Speed 7km/h
Power Supply Voltage 90V
Capacity 385Ah
Motor Power *sets 7.5 kW*2
Dimension Length 2850mm
Width 920,1082/1220mm
Height 1550mm
Wheelbase 850mm
Wheel Diameter Φ520mm
MIN Turning Radius 6m
Way of Speed Control Resistance or Chopped wave
Braking Control Mechanism or hydraulic pressure

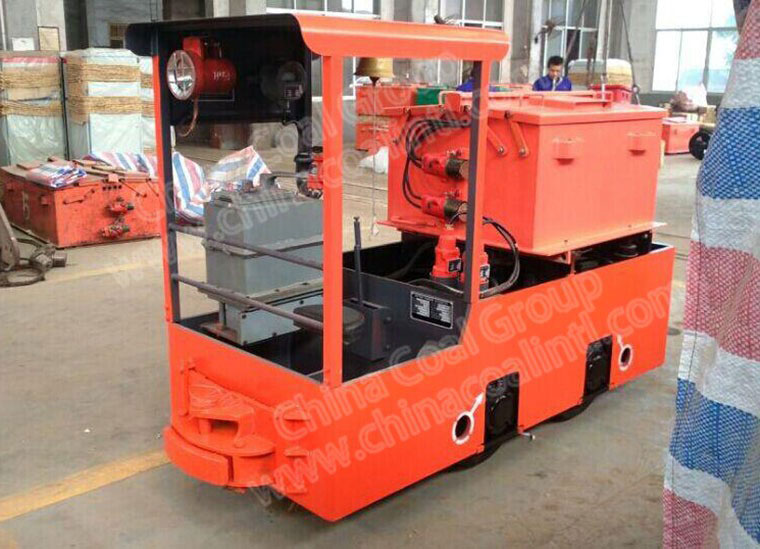

Figure Images of 5 Tonner CTY Battery Locomotives

CTY5/6,7,9G(B) 5 Tonner CTY Battery LocomotivesCTY5/6,7,9G(B) 5 Tonner CTY Battery Locomotives
