Introduction of MPS55 Mortar Spraying Machine
MPS55 Mortar Spraying Machine is a spraying unit with high reliable, well-adapted, sturdy and durable, easy operated. Only three peopled are needed for the construction, one conveys the raw materials, one controls the spraying gun, and the third one for assistant work (ex. move the tube). While the water adding, mixing and conveying of the materials is completed automatically by the machine. Compared the traditional manual construction, it can save the labor, money and time. Additional, the project quality is much better than manual construction. The spraying pump equipped with safety operating control system, and it would stop no matter which parts have fault, which can guarantee the safety of the machine as well as the operator.
Technical Parameter of MPS55 Mortar Spraying Machine
|
Model
|
MPS55-1
|
MPS55-2
|
|
Pumping motor
|
4.4/5.5KW-380V
|
4.4/5.5KW-380V
|
|
Pump core
|
L1(L2)
|
|
Allowed max.aggregate diameter
|
6mm(10mm L2)
|
|
Material theo. output
|
20-40l/min(24-48l/min-L2)
|
|
Conveying pressure
|
25-40bar(15-30bar-L20
|
|
Feeding height
|
56cm
|
125cm
|
|
Mixer capacity
|
without mixer
|
120L
|
|
Dimension
|
230(215-L2)x80x65cm
|
230(215-L2)x80x130cm
|
|
Weight
|
245Kg(265Kg-L2)
|
380Kg(410Kg-L2)
|

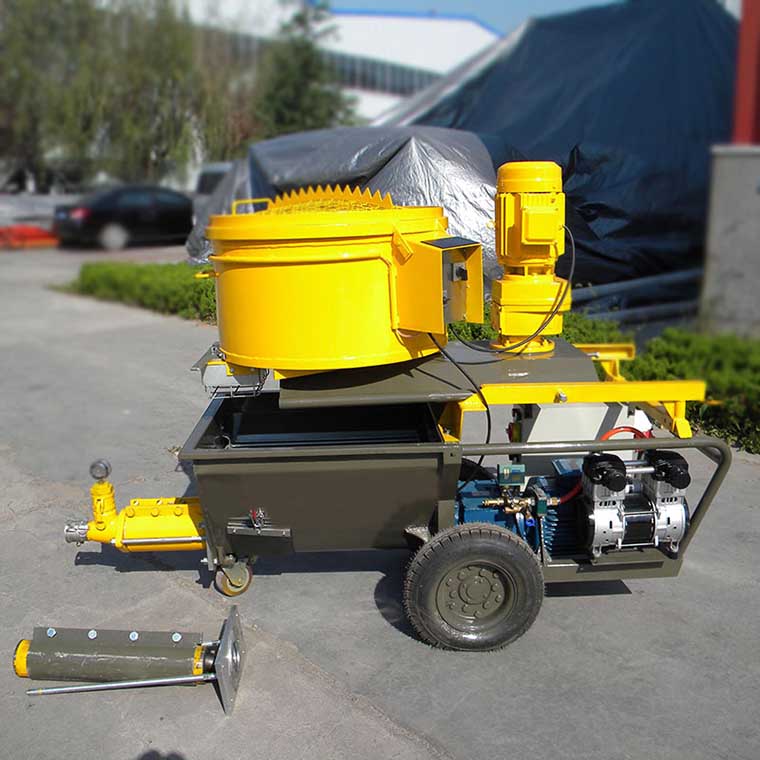

Pictures of MPS55 Mortar Spraying Machine
