Hydraulic Car Arrester Product Introduction
Hydraulic Car Arrester is suitable for the mining railway transportation system, can be installed on the slope is small yard tracks, or changing slope point, stop the car forward and two kinds of normal traffic.
Hydraulic car stopper is controlled by a damper linkage control buttons, along with the throttle opening or closing sync up or down. Under the air door closed stop harvesters, with functions of anti-collision door.
Hydraulic Car Arrester Technical Features
Wheel retarder r
esistance of hydraulic car arrester used, there is a pair of claw and spring buffer device, when the claw wheel impact resistance, resistance claw set in the spring at the back of the fixed axis compression, impact energy absorption for spring. Resistance of the end of the claw through connecting rod and operating mechanism, the reciprocating movement of the hydraulic cylinder piston rod to make the two resistance claw on or off at the same time, closing resistance, after open the car through. stopper can be divided by line set up front and rear stopper two kinds. Before the stopper for harvesters limit, is used to train a traffic stop after the limit, and shunting and claw device mechanical linkage, only after the stopper when the cart claw to lift and transfer the car; after the stopper is closed, don't lift cart claw, pusher may be passed smoothly under the car.
Hydraulic Car Arrester Technical Parameters
Model: ZC600/ZC900
Gauge: 600/900mm
Apply for harvesters tonnage :1/1.5 tons
Allow maximum deformation: 5600/7800N.m
Weight :450Kg

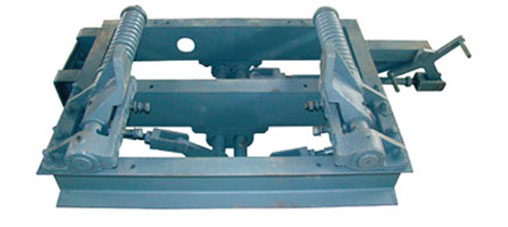

Hydraulic Car Arrester Photo
