Electric Mucking
Machine

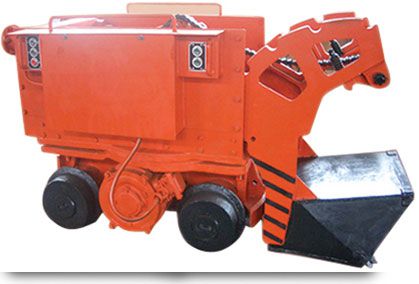

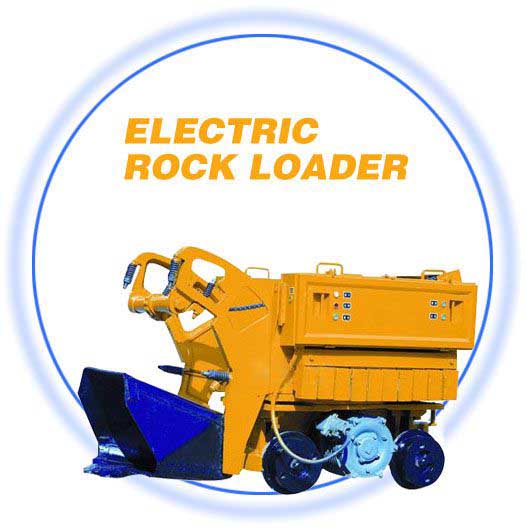

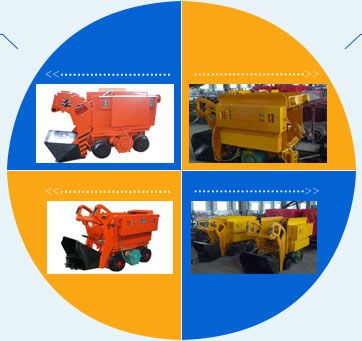

Electric Mucking Machine is single bucket, frone end loader that walking on the tracks.
It's application is to load shots of rock or ore into the mine cart.
Mining Mucking Machine can transport a wide range of materials, such as: gold, nonferrous metals, black metal,
non-metallic and other types of ore and rock with materials's diameter up to 500mm, highest efficiency with
diameter below 250mm. This mucker machine is non-explosion-proof, it is forbidden to use it in the environment
of flammable gas and explosive gases.
Application Scope |
||
Roadway Section |
Width ≥ 2.5m |
Height ≥ 2.5m |
Roadway Tilt Angle |
≤8degrees |
|
Product
Model
Electric Mucking
Machine
Product Model
Z-17W Electric Mucking Machine
Z-30W Electric Mucker Machine
Z-17W Mine Electric Mucking Machine applied for non-ferrous metals, all kinds of mine, tunnel project. Front loading, back discharging, rail wheel walking, 380v power supply, compact structure, flexible operation, bucket floor alloy wear-resistant materials, high durability, long service life.
Z-30W Electric Mucker Machine
Z-30W Underground Electric Mucking Machine: reasonable structural design, higher stability, easy operation, safe operation, high slag discharge efficiency, bucket bottom plate adopted alloy wear-resistant material, high durability and long service life.
Z-17W Electric Mucking Machine |
Z-30W Electric Mucking Machine |
||
Loading Capacity m³/h |
20-30 |
Loading Capacity m³/h |
50-60 |
Capacity Area m3 |
0.17 |
Loading Width mm |
2400 |
Loading Width m |
1.7 |
Loading Height mm |
2240 |
Rial Gauge mm |
600 |
Unloading Height mm |
1360 |
Power |
Motor |
Bucket Volume m³ |
0.30 |
Walking Power KW |
10.5 |
Length mm |
2620 |
bucket Power KW |
10.5 |
Width mm |
1320 |
Unloading Height mm |
1250 |
Height mm |
1545 |
Dimensions mm |
Length(bucket down)C：2020 |
Walking Motor Power KW |
13 |
|
Width（bucket down）K: 1011 Height(bucket working)E:1920 Height(bucket down)D: 1200 |
Bucket Motor Power KW Machine Total Weight kg |
15 4450 |
Pictures For Reference Only Due To Different Product Batch & Specs.
Please Contact Our Sales to Confirm.
Product
Oarameters
Electric Mucking
Machine
| Type | Z-17AW | Z-20 | Z-20AW | Z-30AW | ZQ-26 | |
| Loading Capacity (m3/h) | 20-30 | 30-40 | 30-40 | 50-60 | 40-50 | |
| Capacity(m3) | 0.17 | 0.2 | 0.2 | 0.3 | 0.26 | |
| Loading Width(M) | 1.7 | 2 | 2 | 2.2 | 2.7 | |
| Rail Gauge(mm) | 600mm(When the rail gauge is 750mm,762mm,pls mark in the order) | |||||
| Power | Electric motor | wind motor | ||||
| Travel Power(kw) | 10.5 | 10.5 | 10.5 | 1.5 | 10.5 | |
| Raising Hopper Power(kw) | 10.5 | 10.5 | 13 | 15 | 15 | |
| Discharge Height(mm) | 1250 | 1330 | 1360 | 1370 | 1250 | |
| Dimension(mm) | Length(bucket down)L | 2120 | 2480 | 2400 | 2620 | 2375 |
| Width(pedal down) | 1011 | 1210 | 1330 | 1300 | 1380 | |
| Height(bucket working) | 1920 | 2180 | 2180 | 2260 | 2240 | |
| Height(bucket down) | 1200 | 1518 | 1460 | 1545 | 1455 | |
| Weight(kg) | 3760 | 3750 | 3700 | 4600 | 2700 | |
| Motor | Speed: 690r / min, Walking motor power: 15KW, Bucket motor power: 15KW | |||||
| Voltage | 380V | |||||
| Moving Speed | ≈0.79m/s | |||||
| Bucket lift Speed | 0.46-0.71m/s | |||||
Operating
procedures
Electric Mucking
Machine
Before operation, driver must carefully check the connection situationof the various parts of the underground electric mucker machine and electrical equipment wiring situation,
observe the tunnel blasting,check track gauge and if the length of the
laying is sufficient, make sure no problem before operate.
When rock loading, on the side of driver operation, the distance between mining mucker loader and roadway side
walls more than 300mm.
Forbidden anyone approaching.
When inspecting, oiling and repairing rock machine,the components of the rock loader must be in a stable
state in advance
When the bucket is lifted by the tractionof the chain only
Drivers can't disassemble or repairelectrical equipment whithout electrician's
cooperation.
One people manipulate
Non-rock loader drivers can't press the rockercontrol buttons without the consent of driver.
When leaving rock loader, driver must cut offpower .
Before blasting, the rock loadermust be retracted to a safe distance.
If need to open the control box lid for maintenance, must firstcut off the power supply.
Promptly replace contactor contact
