BELT CONVEYOR

The structure is advanced, the adaptability is strong, the resistance is small, the service life is long, the maintenance is convenient, and the protection device is complete, which is a remarkable feature of the belt conveyor. It is one of the important equipments in the entire production process.

  • Low resistance
  • long lasting
  • Easy to maintain
  • High security
  belt conveyor
  belt conveyor

WIDE RANGE OF APPLICATIONS

Before the belt conveyor is running, first confirm that the belt conveyor equipment, personnel, and articles being transported are in a safe and intact state; check whether the electrical circuit is normal, and the belt conveyor can be put into operation normally.

  • Low resistance
  • long lasting
  • Easy to maintain
  • High security
PRODUCT ADVANTAGES

Use advanced manufacturing techniques to liberate front-line workers and replace advanced labor-intensive production methods with advanced production methods.

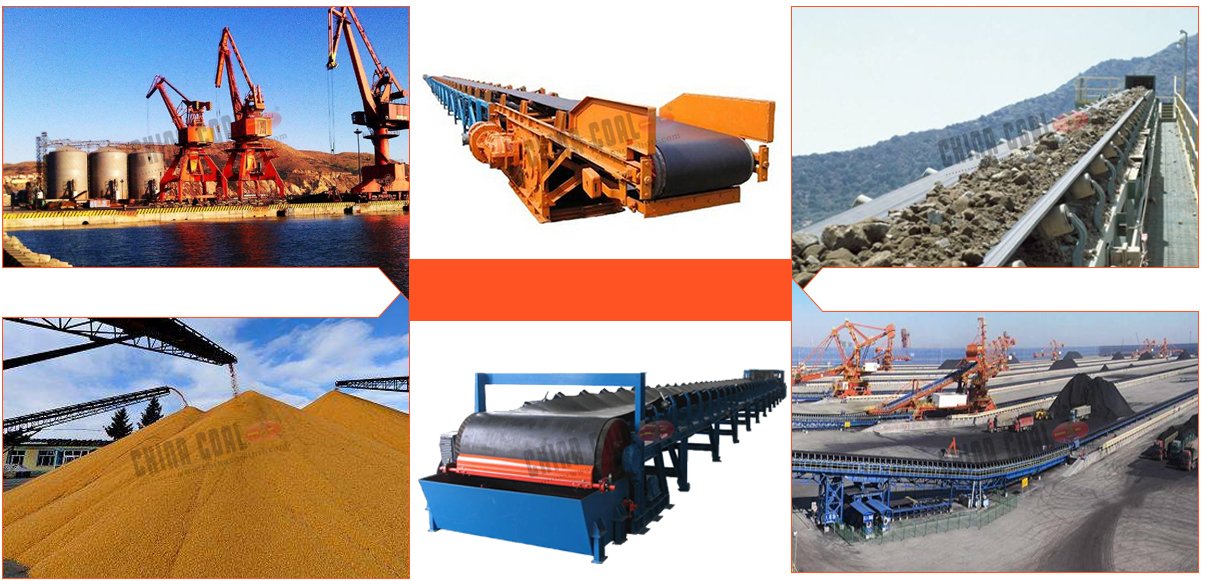

WIDE RANGE OF USES

The belt conveyor is also called belt conveyor. The conveyor belt moves according to the principle of friction transmission. It is suitable for conveying powdery, granular and small pieces of low-friction materials and bagged materials, such as coal and gravel. , sand, cement, fertilizer, food, etc.

  belt conveyor
Efficient/Convenient
SHOW DETAILS

The belt conveyor consists mainly of two end rollers and a closed conveyor belt tightly fitted over it. The drum that drives the belt to rotate is called the drive drum (drive drum); the other drum that only changes the direction of movement of the belt is called the redirecting drum.

  belt conveyor
Automation and centralized control

The belt conveyor is an ideal high-efficiency continuous transportation equipment for coal mines. Compared with other transportation equipment (such as locomotives), it has the advantages of long conveying distance, large volume and continuous transportation, and it is reliable in operation and easy to realize automation and centralized control. Especially for high-yield and high-efficiency mines, belt conveyors have become the key equipment for mechatronics technology and equipment for coal mining.

HIGH-STRENGTH CONVEYOR BELT

Conveyor belt connection: Generally, vulcanization connection should be adopted. The static strength retention rate of the conveyor belt at its vulcanized joint should be no less than 100%, and the service life is generally not less than 10 years.

  belt conveyor
  belt conveyor

The permanent and elastic elongation is not more than 0.2%. The technical conditions must meet the requirements of the MT668 standard. Manufacturers integrated direct sales products, rest assured to buy.

ANTI-RUNNING ROLLER

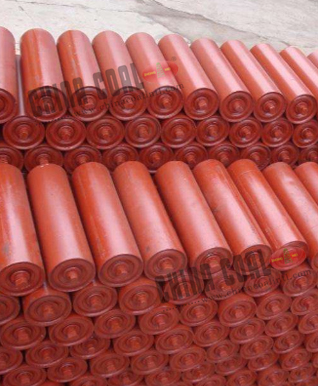

The belt conveyor is a grooved centering roller set. The grooved centering roller set is 35°. The belt conveyor backhaul roller uses the self-aligning roller set to prevent the conveyor belt from running off, centering and adjusting the deflection.

The roller shall not enter the bearing grease after continuous operation for 200 hours in a container with coal dust. Under continuous water conditions, the water intake should not exceed 150g after continuous operation for 72 hours.

  belt conveyor
  belt conveyor
BELT CONVEYOR PARAMETER REFERENCE
DT75 belt conveyor technical parameters
Bandwidth (mm) 500 650 800 1000 1200 1400
Belt speed (m/s) 0.8-2.5 0.8-2.5 1.0-3.15 1.0-3.15 1.0-4.0 1.0-4.0
Conveying capacity (t/h) 78-232 131-391 278-824 435-1233 655-2202 891-2996
Power (kw) 1.5-30 1.5-40 1.5-7.5 3-100 4-185 4-185
<
