Advanced design concept, sophisticated production equipment
Integrity Management Fine work Quality After-sales
The slag slag machine changed the semi-mechanized and intermittent slag shipment of the original construction and required a large amount of manual coordination of low speed, high safety risk and high cost.

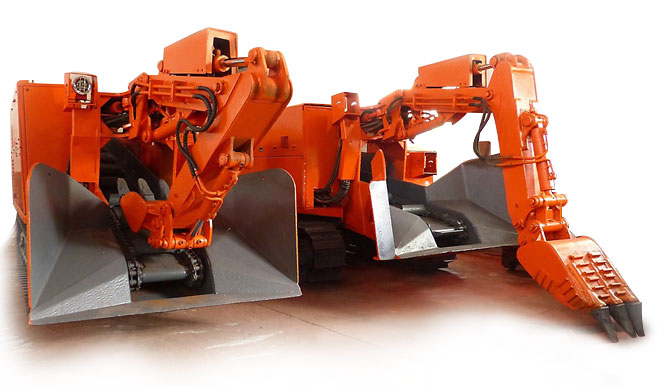

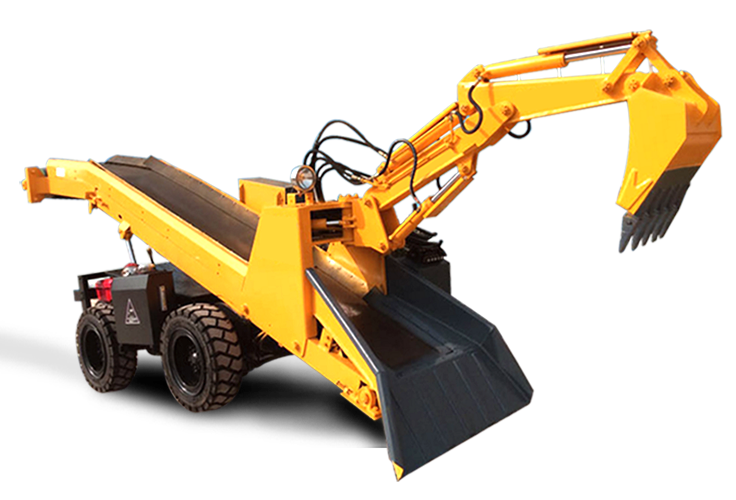

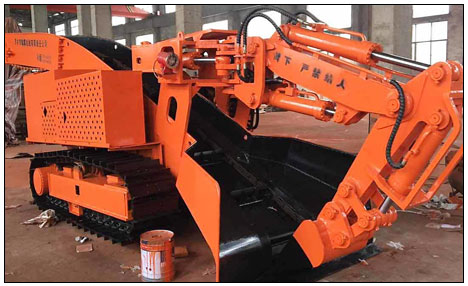

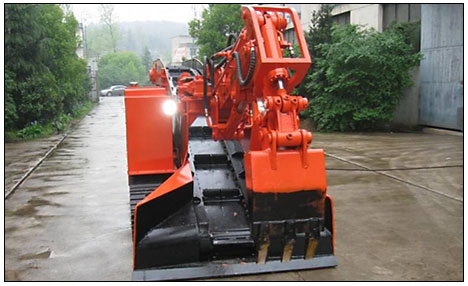

Mucking Loader is a combination of a robot and a conveyor, and the collection and conveying functions are combined into one. The production device of the electro-hydraulic control system is characterized by safety, environmental protection, low energy consumption and high efficiency.
Using high-quality raw materials, fine workmanship, long-term use, rest assured to buy.

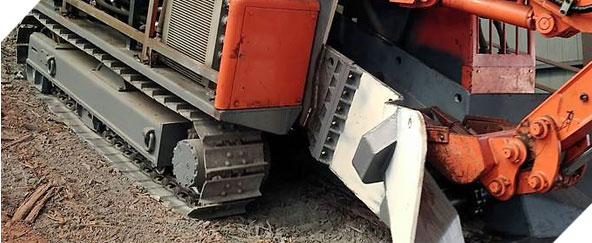

The working arm is mainly operated by hydraulic pressure.flexibility is good and mining area wide.It adopt imported wear resistant materials,so reducing loss and improving the durability of use.It has the characteristics of multiple input and multiple output.

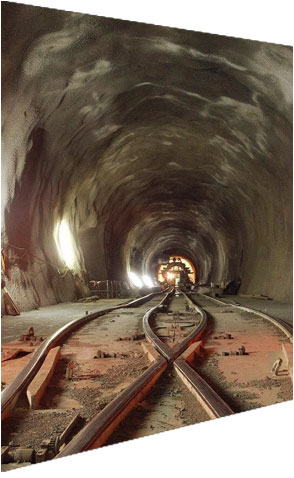

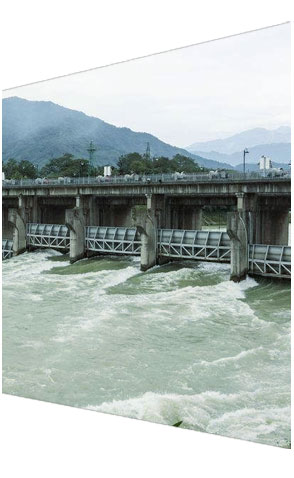

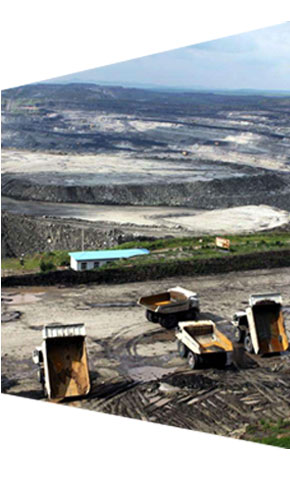

The slag slag machine is suitable for construction machinery and small section diversion tunnels for tunnel excavation, mining engineering, water conservancy projects, etc., and mine slag (mine) machinery.
Operating the slag slag machine is a technical activity, suggesting that non-professionals must not operate without training. The trained staff must land the bucket during non-working hours to prevent accidents.
Before going to and from the post, you must check the parts that involve safety to achieve safe operation and ensure the equipment is in good working condition.
Keep in mind the work of each handle and stabilize it when you pull the handle.
When the mucking loader is working, it is forbidden to have someone within the safe distance. If there is a malfunction or abnormal noise, stop the vehicle immediately and cut off the total power supply.

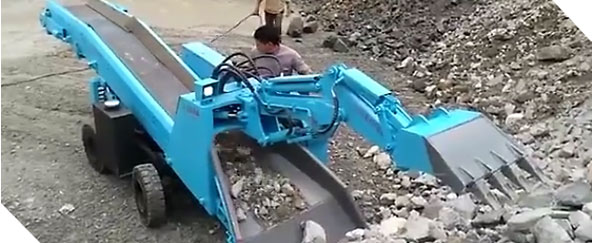

The mucking loader is suitable for construction machinery and small-section water diversion tunnels for tunnel excavation, mining engineering, water conservancy projects, etc., and mine slag (mine) machinery. This machine is mainly used for some production of liquid space narrow, production scale small phosphate rock, Gravel earth material collection and transportation loading and construction of non-explosive dangerous mines such as metal non-metallic mines.
There are two operating handles on the console. The front and rear directions of the right handle control the forward and backward movement of the trolley, and the left and right direction controls the tilting movement of the slag arm up and down. The left and right handles control the slag plate to be lowered and lifted, and the left and right direction control frame swings to the left and right.
Each position of the frame swings with a limit switch, one for controlling the maximum working angle of 10°, and the other for controlling the maximum angle of the maintenance station by 45°. The corner of the maintenance station can be set according to the actual needs of the work site.
he Ф 10 pin on the adjusting screw connector on the trolley is a safety pin. When an abnormal situation occurs and the transmission system is forced to exceed the design slag force by 2 to 3 times, the pin will be cut off to protect the hydraulic motor, chain and the like.
The hydraulic system of the skimmer drive system has an overload protection function, and the system pressure must not exceed the design pressure during use. The travel trolley travel switch is set to meet the slag stroke, and the travel trolley is not allowed to hit the spring buffer device frequently.
