We Focus On Every Detail Of Life
afety
Fashionable And Novel
Easy To Carry
Wide Application
Easy Storage
High Strength Aluminum
Firm Construction

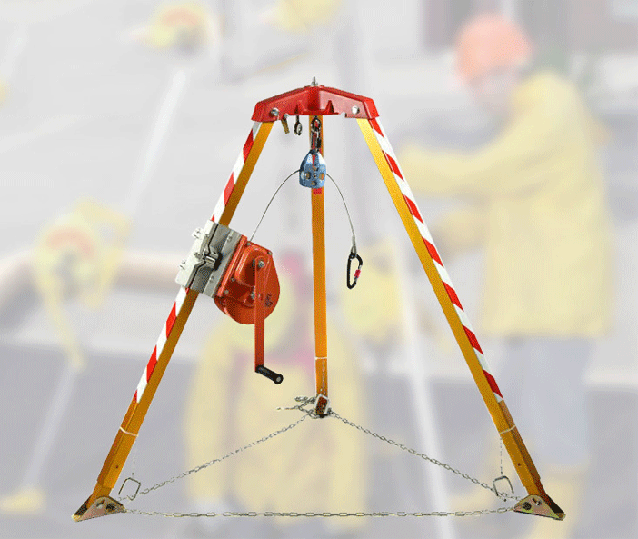

Rescue Tripod
The utility model can be widely used for construction, overhaul and rescue work of water, electricity, communication, mines, machinery, building, deep well, cliff, high-altitude and other industries
More Guarantee. More Safety
Your Safety Is Our Responsibility
Confined Space Rescue Winch
Anti Rotating Steel Wire
Down Brake Protection
Anti Oxidation Not Eeasy To Scratch
Rescue Tripod
Main Features
01
Quality Materials Are Safer
The retractable leg high strength lightweight Aluminum Alloy manufacturing, the safety factor is more than 10 feet is provided with an annular protection chain.
02
Self-locking Device
The resuer tripod is equipped with an ascending and descending self-locking device, which ensures the safety of the sling.
03
Special Stainless Steel Wire Rope
The sling is made of a special stainless steel wire rope, which is flexible and will not cause wire damage due to corrosion or lack of oil
04
Convenient Assembly
The device can be adjusted according to local conditions, and is not limited by the roughness of the ground.
Rescue Tripod
Composition Structure
Winch
Rescue Tripod
Technical Parameter
| Name | Rescue Tripod |
| Closed Length | 130cm |
| Extension Length | 228cm |
| Operating Load | 400kg |
| Breaking Load | 1200kg |
| Max. Prevent Breaking Force | 22KN/4944.94Lbs(Steel Wire Rope) |
| Length Scope | 134-214cm |
| Packing Dimension | 175*23*23cm |
| Weight | 17.3kg |
| Winch With Automatic Brake Device | |
| Wire Length | 25m(NO. 284.01) |
| Wire Diameter | 5mm |
| Operating Load | 180kg |
| Breaking Load | 1800kg |
| Weight | 13kg |
Rescue Tripod
Detail Display
