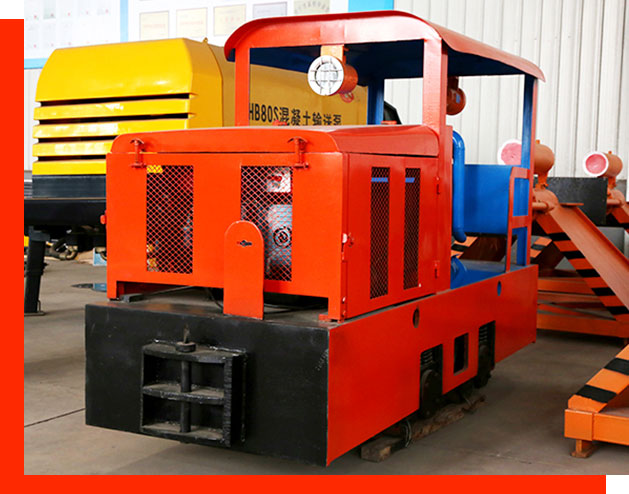

CCG MINING EXPLOSION-PROOF DIESEL LOCOMOTIVES
REDUCE LABOR ANDREDUCE COSTS
Safe, energy efficient, efficient, and low operating costs.
PRODUCT INTRODUCTION
CCG Mining Explosion-proof Diesel Locomotives is a kind of driven, the vehicle with proof performance for containing flammable gas and coal dust and other dangerous places, traction, transport of mining locomotives, traction battery and then following the hydraulic transmission of a utility model traction.
SCOPE OF APPLICATION
-
Television station
-

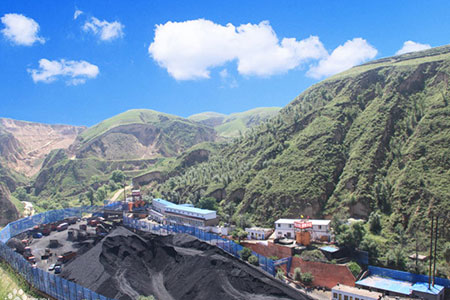

Coal mine
-
Construction project
-
Airport
-
Hospital
-
laboratory
PRODUCT ADVANTAGES
-
Energy -saving
-
High efficiency
-
Easy to operate
-
Compact structure
-
Facilitate maintenance
-
Powerful power

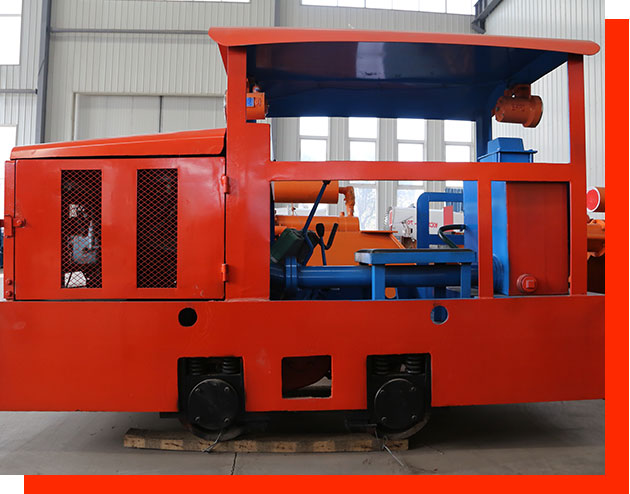

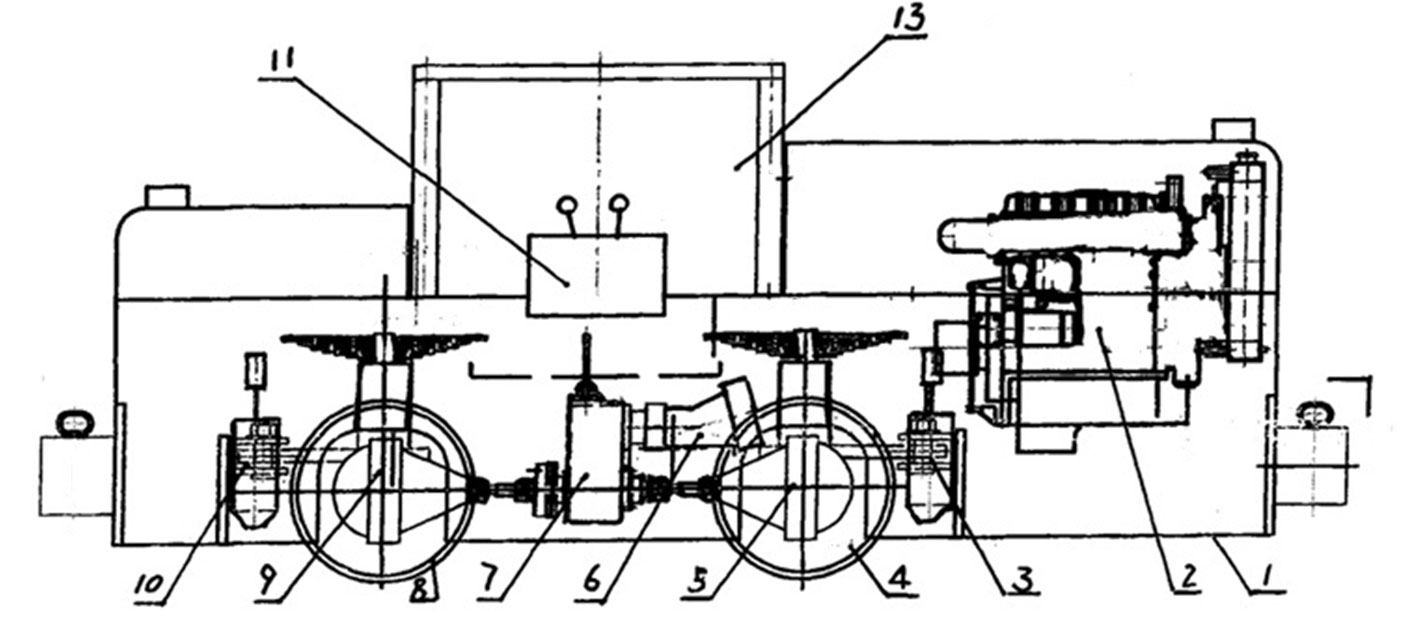

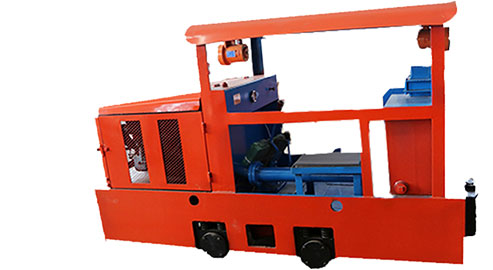

PRODUCT STRUCTURE
LEGEND DESCRIPTION
1-car chassis, 2-explosion-proof diesel engine, 3/10-brake system, 4/8-rail wheel, 5/9 drive system,
6-variable hydraulic motor, 7-gearbox, transmission,11-operating system, 12-hydraulic gear pump, 13-driving shed
POWERFUL
The internal combustion engine of a diesel locomotive requires a transmission to output power to its wheels. When the locomotive is stopped, its engine can continue to operate.
This series of locomotives powered by diesel engines do not require traction grids, alternating current and charging equipment.

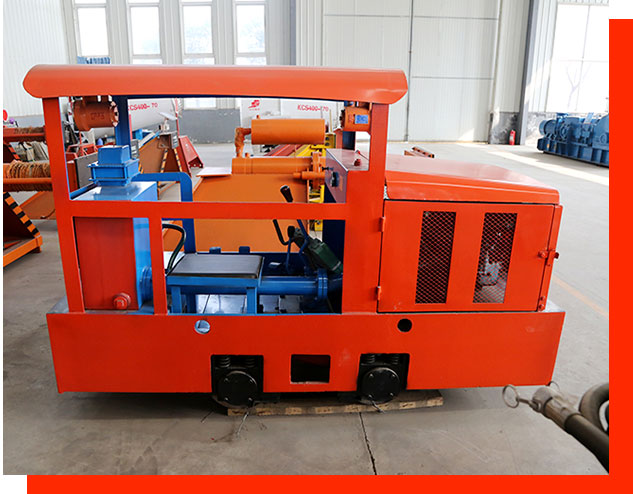

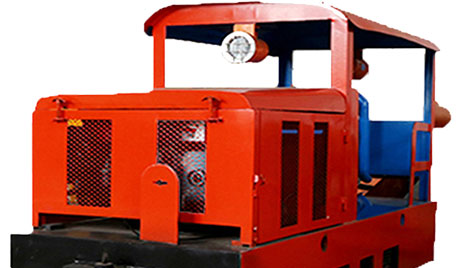

FLEXIBLE BODY
The diesel locomotive has a short body and maintains the turning radius of the lane with flexibility and stability
Compact body
Simple
structure
Earthquake proof

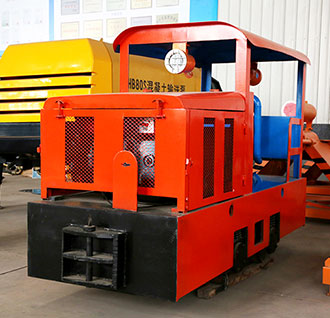

GOOD EXPLOSION-PROOF PERFORMANCE
The mining locomotive is equipped with an explosion-proof exhaust gas treatment device, and the electrical equipment such as the generator and the lamp of the
locomotive are explosion-proof.
Compared with the DC drive type, it saves energy and saves energy by up to 25-30%.
PRODUCT FEATURES

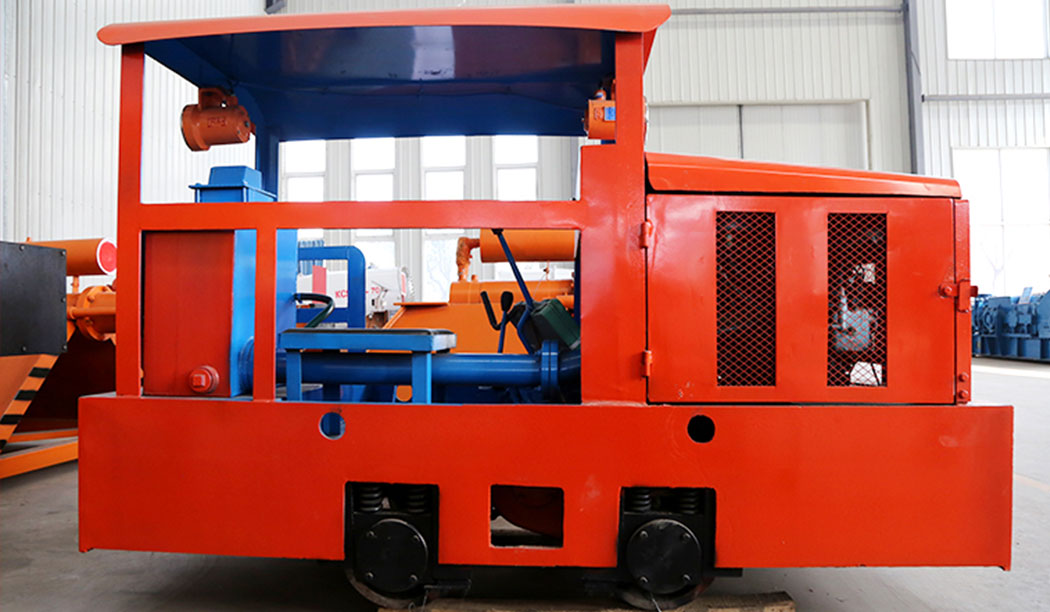

FLEXIBLE MANEUVER
Explosion -proof diesel locomotive is based on diesel engines. This series of locomotives is more flexible than battery locomotives.

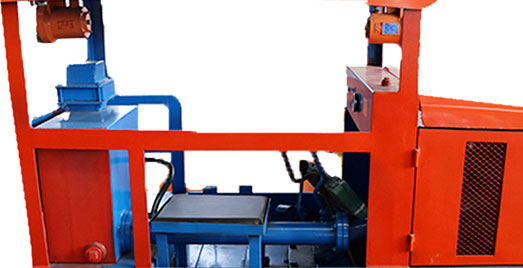

HYDRAULIC TORQUE CONVERTER
The good torque converter is adopted, which has good adaptability to the outside world and the performance of vibration -cutting. The service life of
the engine and gearboxes has been effectively improved, which greatly reduces the incidence of locomotive failure and the cost of use.
LARGE SPACE IN THE CAB
Explosion -proof diesel locomotive cab is located between the entire vehicle. The indoor space is spacious, the field of vision is spacious, which is conducive to driving and running more stable.

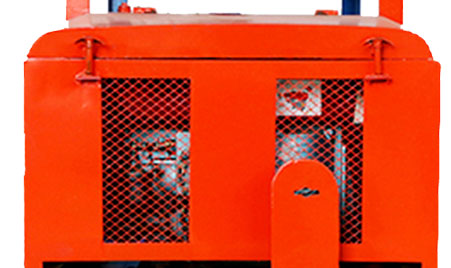

POWERFUL MOTIVATION
Explosion -proof diesel motorcycle has a large size and powerful power, suitable for mine use with more than 150,000 tons and slope ≤70%.
TECHNICAL PARAMETER
| Model (basic parameter)Item |
CCG 3.0/600J (B) |
CCG 5.0/600J (B) |
CCG8.0/600J |
| Matched Power Model |
ZS1115FB |
YH1125SFB |
YH4108DFB(A) |
| Dimension (L*W*H) mm |
2400*920(1000)*1600 |
3020*1000(1098)*1600 |
3700*1100*1600 |
| Weight kg |
3000 |
5000 |
8000 |
| Greatest Traction Force KN |
4.5 |
7.5 |
12 |
| Pulling Tonnage T |
15 |
22 |
35 |
| Gauge mm |
600/762/900(made to order) |
600/762/900(made to order) |
600/762/900(made to order) |
| Wheelbase mm |
706(712) |
880(860) |
980 |
| Greatest Speed km/h |
15+1 |
17+1 |
20+2 |
| Diesel Engine Power (kw) /Rotating Speed (r/min) |
11/2200 |
14.7/2200 |
52/2400 |
| Smallest Railway Orbit m |
5 |
6 |
7 |
| Greatest Braking Force N |
5000 |
8000 |
12800 |
| Traction Height mm |
270 320 |
320 430 |
320 430 |
| Braking Distance m |
40 |
40 |
40 |
| Height Above Ground mm |
80 |
125 |
125 |
| Braking Mode |
foot and machine control |
40 |
air and hand wheel control |
| Exhaust Quality |
C0≤0.1% NOX≤0.08% |
C0≤0.1% NOX≤0.08% |
C0≤0.1% NOX≤0.08% |

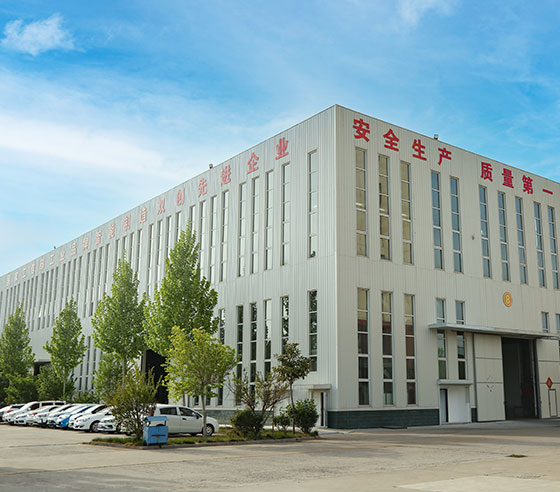

COMPANY PROFILE
Shandong China Coal Industry and Mineral Materials Group Co., L
In recent years, China Coal Group is committed to becoming an internationally competitive information service industry group, large intelligent equipment manufacturing group, high -tech technology industry group and diversified logistics group as the vision goal. The corporate responsibility that is responsible for customers and is responsible for employees, lay a solid foundation, and develop the development, and realize the double harvest of economic and social benefits.

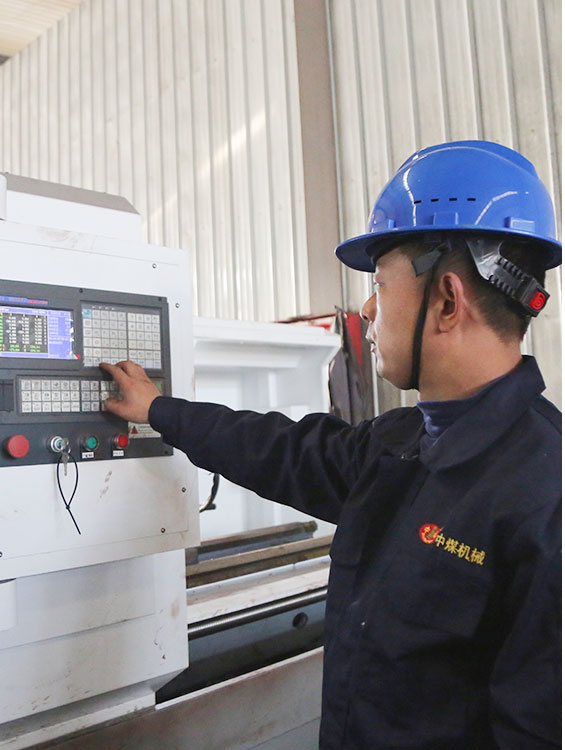

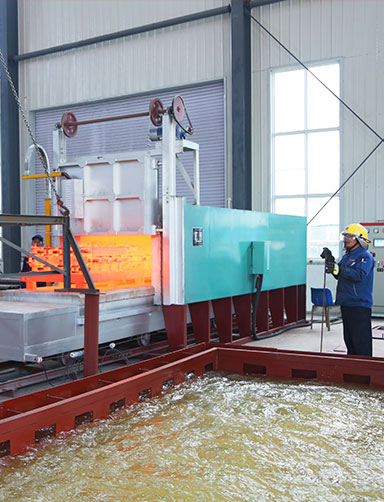

PRODUCTION WORKSHOP
-
-
Become a modern industrial
division of labor cooperative
production zone for industrial
upgrading.
-
Improve the intensity of
industrialization, highlight the
characteristics of industrial
characteristics.

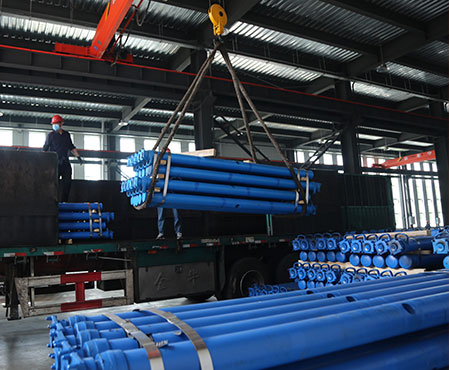

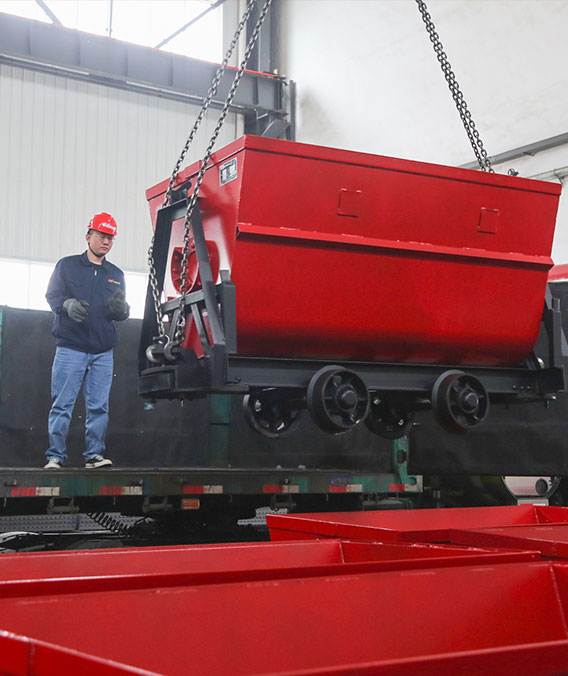

LOGISTICS DELIVERY
