Flange type level transmitter introduction
Flange type level transmitter mounting flange standard by ANSI, the flange 3 "and 4" size, flange class is divided into 150LB (2.5MPa) and 300LB (5.0MPa), flange mounting dimensions see chart . If the user uses GB9116-88 standard, then DN = 80,100, PN = 2MPa please specify.Wetted sheet material 316L, Hastelloy C-276, Monel, tantalum. When the user does not specify, supply 3 "150LB mounting flange and then liquid film material 316L.
Flange type level transmitter technical parameter
Flange size
|
Bolt hole
|
Size
|
Specification
|
DiameterD
|
A
|
B
|
C
|
Quantityn
|
Diameterd
|
Diameter distributionD1
|
3″
|
1501b
|
190
|
30
|
66
|
127
|
4
|
19
|
152
|
4″
|
1501b
|
228
|
30
|
89
|
157
|
8
|
19
|
190
|
3″
|
3001b
|
210
|
35
|
66
|
127
|
8
|
22
|
168
|
4″
|
3001b
|
254
|
38
|
89
|
157
|
8
|
22
|
200
|

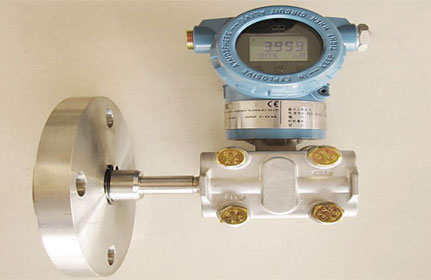

Flange type level transmitter photo
Because the production batch, the specific model is different, the above pictures are for reference only, you can contact our sales staff for further details on the specific verification.
