Introduction of ZHS Mine Explosion Proof Digital Camera
ZHS Mine Explosion Proof Digital Camera can be used in coal mines with coal dust or other, gas hazardous environment for image recording with high definition, image storage capacity, use for a long time, portable and convenient.
ZHS Mine Explosion Proof Digital Camera is mine disaster accident investigation and evidence collection, downhole video production safety situation, electromechanical equipment operating status, supporting the roof and floor conditions and geological features, etc., to provide high-resolution digital camera or pictures.
Working Principle of ZHS Mine Explosion Proof Digital Camera
ZHS Mine Explosion Proof Digital Camera is the use of electronic sensors to capture the optical image and changed into electronic data stored in a digital memory card. It’s inductive sensor is a charge-coupled device light (CCD).In order to better adapt to the underground environment, explosion-proof digital camera power has two over-current protection circuit, the maximum output voltage: 4.2V; Maximum output current: 1.3A.
Main Technical Indicator of ZHS Mine Explosion Proof Digital Camera
Safety signs: MA, proof mark : Exmbib I
Operating voltage : 7.8V ~ 8.4V, operating current: ≤ 1.5A
AF / AE single-lens reflex digital camera
Recording media: SD memory card, SDHC memory card
Image Sensor : High-sensitivity, high-resolution, large single-plate CMOS
Effective pixels : Approximately 12.2 million pixels
LCD Monitor : 3.0-inch TFT color LCD
USB port for computer communication and direct printing (high speed USB)
Dimension：128.8 mm×97.5 mm×61.9 mm
Weight : about500
Memory card 8G, can store up to 1000 photos
lens Canon EFS 18-55mm

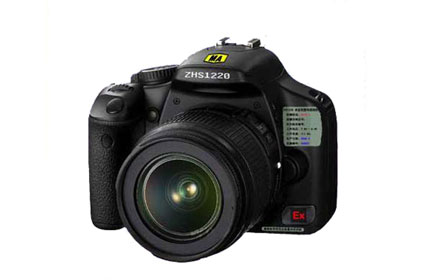

Pictures of ZHS Mine Explosion Proof Digital Camera
Because of the production batch, the specific model are different, the above pictures are only for reference , you can contact our sales staff for further details on the specific verification.
