BW320 Triplex Piston Mud Pump Introduction
BW320 Triplex Piston Mud Pump is a horizontal single-acting reciprocating mud pump with three cylinders.
BW320 Triplex Piston Mud Pump has two cylinder diameters, four changeable gear speeds and eight flows can be chosen. It can support for the hydraulic impact drilling for the hole depth within 1000 meters, the screw drilling or turbine drilling for the hole depth within 1500 meters and geological core drilling for the hole depth of 2500 meters.
BW320 Triplex Piston Mud Pump Parameter
|
Model
|
BW320
|
|
Type
|
Horizontal, Single-acting, Reciprocating,
|
|
No. of Cylinders
|
3
|
|
Stroke
|
110mm
|
|
Cylinder Diameter
|
80mm
|
60mm
|
|
Speed (min-1)
|
214
|
153
|
109
|
78
|
214
|
153
|
109
|
78
|
|
Flow
|
320
|
230
|
165
|
118
|
180
|
130
|
92
|
66
|
|
Pressure
|
4
|
5
|
6
|
8
|
6
|
8
|
9
|
10
|
|
Suction Height
|
2.5m
|
|
Lenghth x Width x Height
|
1280x855x720(mm)
|
|
Net Weight (air chamber and electric motor excluded)
|
650kg
|
BW320 Triplex Piston Mud Pump Photos
Due to the production batch, the specific model is different, the above of pictures are for reference only, for further details you can contact our sales staff to carry out the specific verification .

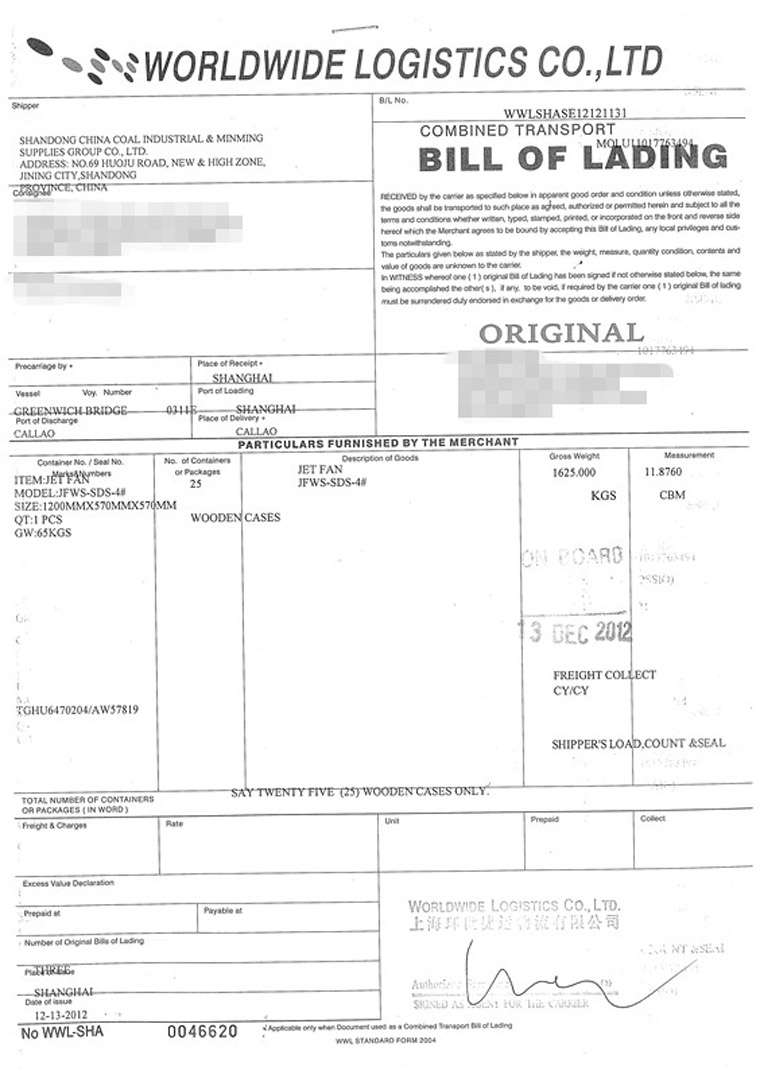

B/L of The History Trading
