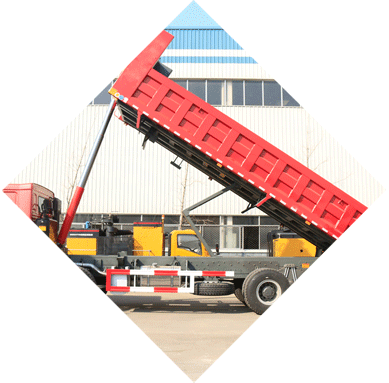

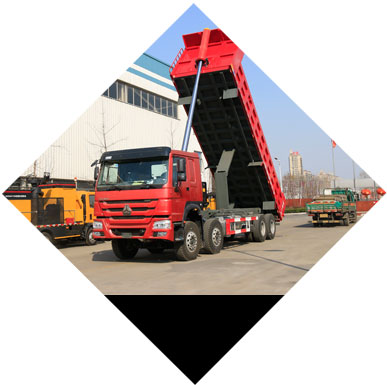

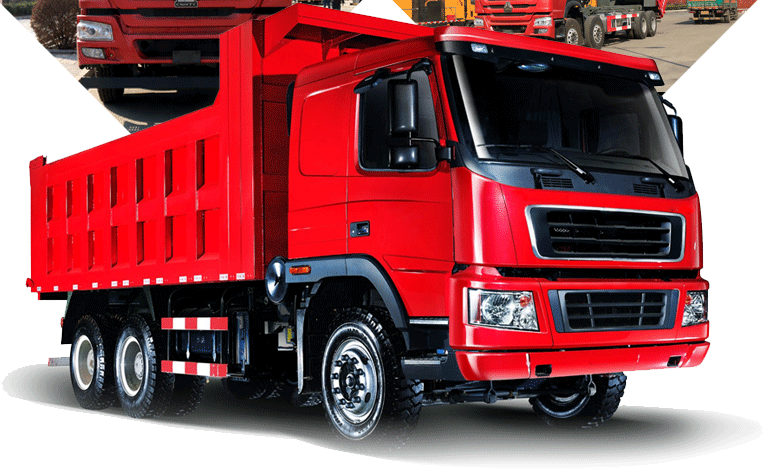

Product introduction

we supply various dump trucks/tipper trucks, tractor trucks, semi-trailers, cargo trucks.

All the engines, cabs, axles, gearboxes, frames and other key components are substantially developed and made by SINOTRUCK to ensure the best quality and the matching among main assemblies. HOWO series trucks use original ZF8098 steering system , to continue the leading position at home and abroad.

  • Professional
    design
  • safe and
    reliable
  • convenient
    maintenance
  • low failure
    rate

Product Features

  • Reliable

    Lateral stability: Patent and tailored frame design Safety and reliability: New type brake drum

  • Low Fuel
    Consumption

    High efficiency Powertrain: Optimized power transmission design Low wind resistance: Streamlined cabin design

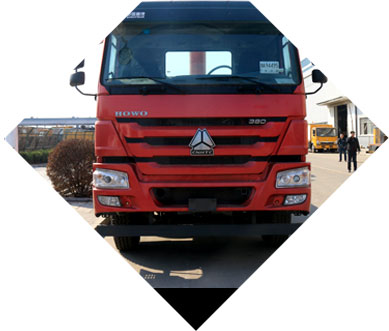

  • Euro type
    cabin

    Latest international style cabin Crystal and upright mounted headlamp

  • Comfortable

    Flat floor cabin, enlarge the driver's space;Noise isolation technology;Ergonomic trim and seats; Tilted footstep on front bumper;

Product performance

01

Design, low center of gravity center of gravity than traditional model 210

02

HODO control system, safe and reliable, stable, low failure rate;

03

Widen the removable carriages after rotary structure, stability, convenient maintenance

04

Live connection under the oil cylinder of bearing, convenient transmission maintenance

05

Domestic first-class specialized equipment safeguard is stable and reliable performance

Technical parameters













Engine

Model

WD615.69/WD615.47

Emission

 EURO 2

Maximum output

336HP (247KW)/2200rpm /371HP(273KW)/2200rpm

Maximum torque

1300Nm/1300-1600rpm /1470Nm/1300-1600rpm

Number of cylinder

6

Displacement(L)

9.726

Bore(mm)

126

Stroke(mm)

130

Fuel

Diesel

Compression ratio

38.1hp/1

Engine oil filling quantity(L)

19

Specification

6-cylinder in-line with water cooling,turbo-charging and intercoolin



Gearbox

Model Option

HW15710,HW19710,FAST RT11509C

Operation

Manual

Speeds

(8)9 Forward and 1 Reverse











Front Axle

Model

 HF9

Rated load(kg)

 9000

Maximum steering angle of inner wheel(.)

45

Kingpin inclination(.)

3

Camber angle(.)

1

Spring gage(mm)

850~900

Brake

Air drum brake

Min rim size(inch)

20















Driving Axle

Model

HC16(Tandem axle)

Type

Central single reduction + hub reduction,welded axle housing

Rated load(kg)

2×13000

Ratio

3.93/4.42/4.80/5.73/6.72/9.49

Spring gage(mm)

1020

Wheel tread(mm)

1850

Input flange

φ180

Differential device

Inter-wheel and inter-axle

Brake

Drum φ420×220

Weight(Without lubricants)(kg)

1 st axle:895/2nd axle:815

Wheel bolt(mm)

φ335-10×M22×1.5

Min rim size(inch)

20

Lubricants(L)

GL5 85W-90



Cab

Model

HW76

Bunk

1

Air Conditione

With

Steering

Steering

ZF power steering,model ZF8098,hydraulic steering with power assis tance Ratio:26.2







Electrics

Operating voltage

24 V,negative grounded

Starter

24 V,5.4 Kw

Alternator

3-phrase,28 V,1500 W

Batteries

2×12 V,165 Ah

Others

Cigar-lighter,horn,headlamps,fog lights,brake lights,indicators and re verse light



Tyre

Rims

8.5-20,10 hole-steel

Option

11.0020 Radial Tyres,12.00R20 Radial Tyres

Brake

Service brake

Dual circuit compressed air brake

Parking brake(emergency brake

Spring energy,compressed air operating on rear wheels



Bulk(Cargo Box)

Bulk(Cargo Box)

Engine exhaust brake

Lifting Option

Front Lifting,Ventral Lifting

L × W × H(mm)

7300×2300×1500





Dimensions

Working Volume(M3)

25.2

Wheel base(mm)

1800+3500+1350

Overall length(mm)

10100

Overall width(mm)

2516





Weight(kg)

Overall height(mm)

3310

Permissible loading capacity(kg)

32000

Chassis dead weight(kg)

13900

Front axles loading capacity(kg)

9000





Performance

Rear axles loading capacity(kg)

13000×3

Maximum driving speed(km/h)

75

Maximum grade ability(%)

39

Minimum ground clearance(mm)

298

Minimum turning circle(m)

21



Option

Fuel consumption(1/100 km)

40

Color

Blue/White/Yellow/Green/Red

Brake

ABS,EVB

Engine

EURO 2,EURO 3,EURO 4
