TGM-1200 Features
High capacity, 75-120ma/h
Gold recovery rate is more than 97%
Move easily
Max design life
It is suitable for remote area
Minimum operators are required
Lower operating and maintenance cost
Overall Dimensions
|
No.
|
Title
|
Spec
|
Remark
|
|
1
|
Overall length
|
7 m
|
|
|
2
|
Overall width
|
2.3 m
|
|
|
3
|
Overall height
|
3.3 m
|
|
|
4
|
Tommel diameter
|
1.2 m
|
|
|
5
|
Screen area
|
2.8 m3
|
|
|
6
|
Gold processing mat
|
Rubber mat
|
|
|
7
|
Processing capacity
|
75-120 m3/h
|
|
|
8
|
Trommel mesh
|
6-10 mm for choices
|
|
|
9
|
Power
|
7.5kw-4p
|
|
|
10
|
Water pump
|
8inch
|
|
|
11
|
Water flow
|
400 m3/h
|
|
|
12
|
Water lift
|
32 m
|
|
|
13
|
Rated power
|
52 kw
|
|
|
14
|
Rated speed
|
1500 r/min
|
|
|
15
|
Operator
|
One person
|
|
|
16
|
Fuel consumption
|
72 kw x 0.178L=12.8 L/ Hour
|
|

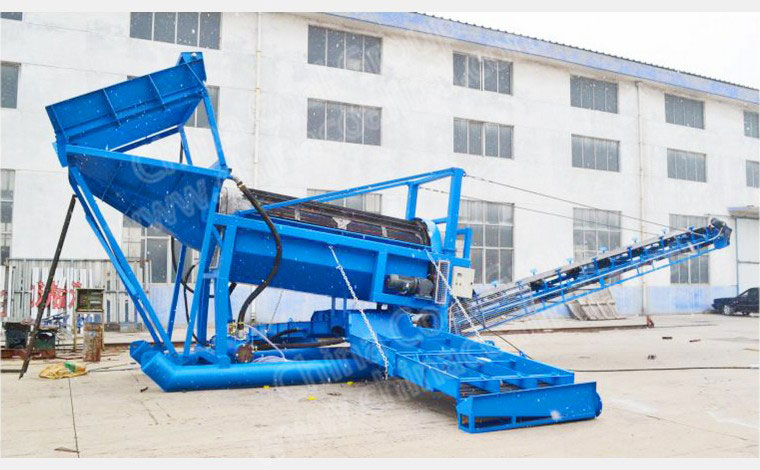

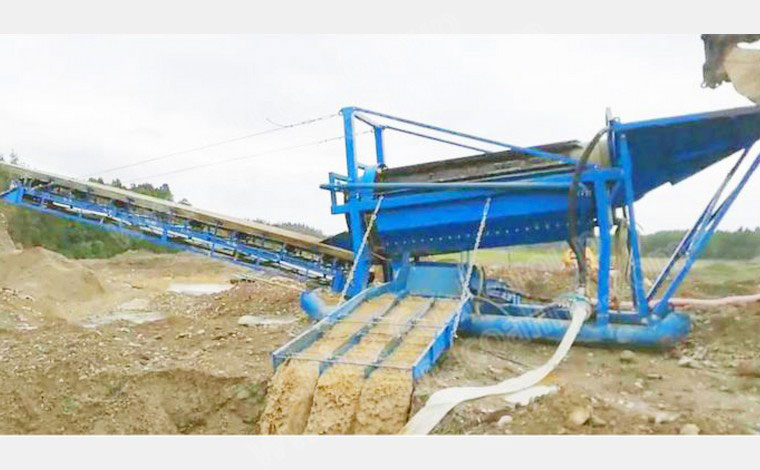

Pictures
