Main Characteristics of Full Automatic Water Surface Cleaning Vesself
1.This ship is mobile and flexible, with wide collecting range, small collecting blind angle, safe and simple operation, widely navigable area and high automatic efficiency.
2. This ship steel single head mono hull ship with one engine, double hydraulic propellers. Collecting system is driven by hydraulic system, and it is electric remotely controlled.
3. The entire salvage process of this ship is centralized control by precision hydraulic technology. Using a gear distributor to control several lines hydraulic oil to achieve the collecting arm opening and closing transportation belt running front collecting cabin draft adjusting, middle storage transportation. All these actions can be done both. independently and cooperatively. Front and middle cabin are composed of Great Wall type stainless chain belt, which is of high-strength and wear resistance So the life time is longer and also it can filter the water from the debris gathered from water.
Technical Parameters of Full Automatic Water Surface Cleaning Vessel
|
Total Length
|
15.8 m
|
|
Total Width
|
4.9 m
|
|
Total Depth
|
3.6 m
|
|
Navigation Speed
|
5 km/h
|
|
Full loaded draft
|
0.7 m
|
|
Empty Loaded Draft
|
0.4 m
|
|
Driving Method
|
Propeller
|
|
Cruising Ability
|
24 h
|
|
Engine Power
|
90 kw
|

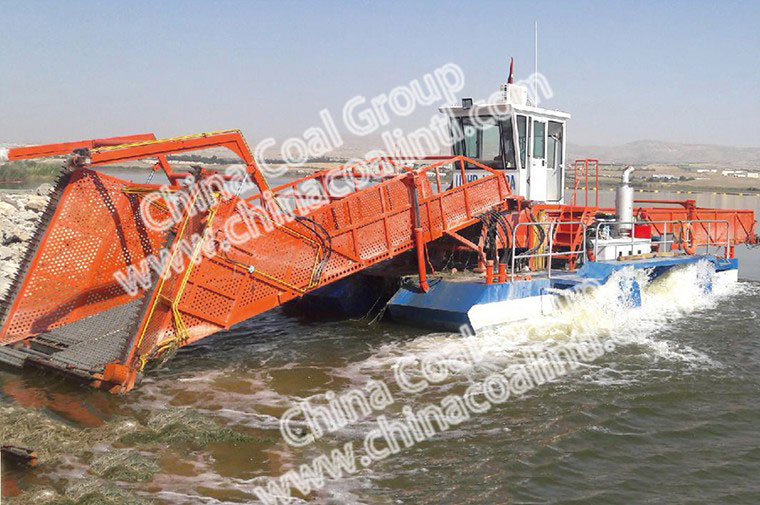

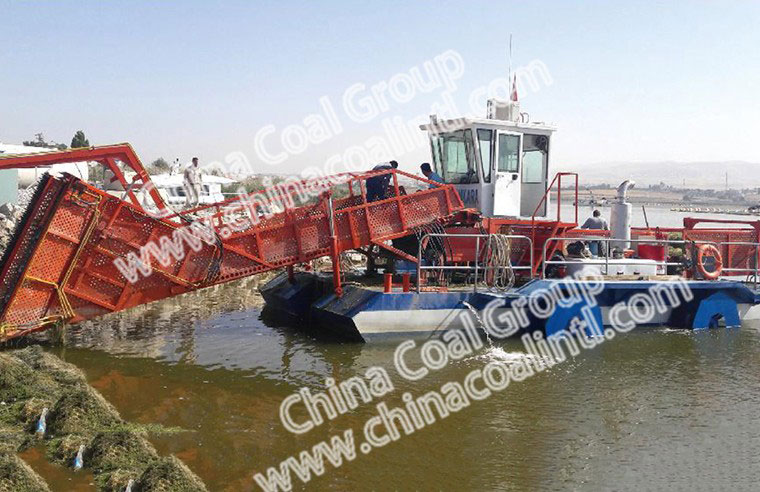

Photos of Full Automatic Water Surface Cleaning Vessel
