Introduction of Enteromorpha Salvage Collection Device
The large enteromorpha salvage collection device is a customized and new type device for"Ocean University of China". We upgrade technology and remould the Haizhuangyuan"sea enteromorpha comprehensive disposition platform of Ocean University of china, change the suction pump type of self-salvaging device to crawler-type, which improves the salvaging efficiency obviously
The device consists of conveying and driving equipment. The conveyor equipment includes conveyor belt and the bracket used for installing the conveyor belt. There is enteromorpha striking gear fitted at the front of conveyor belt bracket. The whole driving equipment adopts hydraulic system with stabilization and high efficiency. Manual work is not needed for the whole process, which can improve the working efficiency
Parameter of Enteromorpha Salvage Collection Device
|
Total length
|
98.13m
|
Total width
|
24m
|
Total Depth
|
5.5m
|
|
Collecting Depth
|
1.5m
|
Full Loaded Draft
|
4.1m
|
Empty Loaded Draft
|
1.6m
|
|
Working Speed
|
77kmh
|
Collecting Width
|
14m
|
Loading Capacity
|
4828t
|

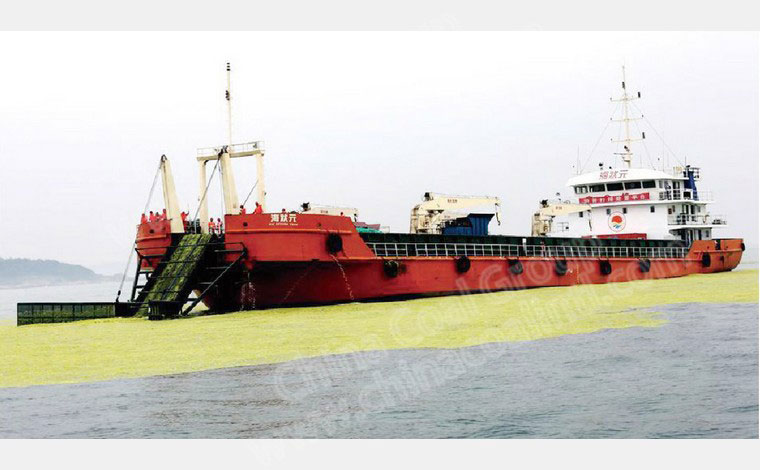

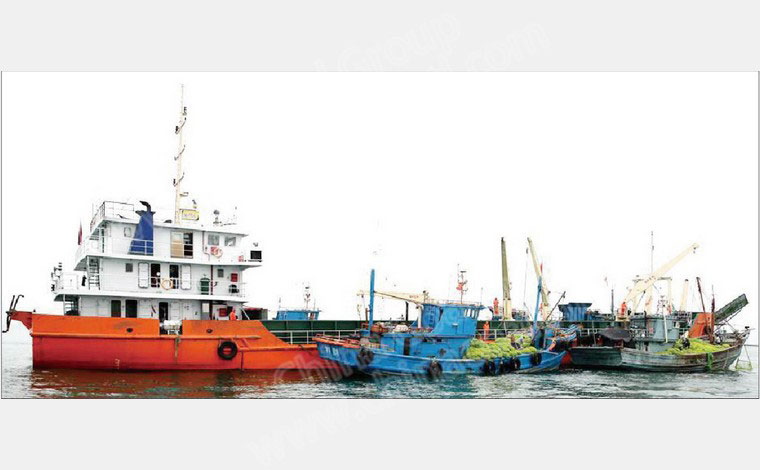

Photos of Enteromorpha Salvage Collection Device
