Introduction of Seabed Aquatic Plant Harvester

1. The seabed aquatic plant harvester can remove aquatic plant from sea bottom completely, including the root. It is equipped with a hobbing cutter to dig aquatic plant from the seabed. The length of the teeth on the cutter is 20cm. It can dig seagrass root from 20cm depth of the sand. The aquatic plant will be collected by the front chain belt and stored by the back chain belt. When the back chain belt is full, the machine will sail to the bank or some barges to discharge the aquatic plant out .

2. When working, the hobbing cutter will go under the water and rotate on the surface of the seabed. During running, the curved cutters will dig the sand and remove the sea weed. The paddle wheel can control the machine to move forward or back or turn around in proper speed. When not working, the hobbing cutter will be pulled up on the surface of water by hydraulic winch.

Parameter of Seabed Aquatic Plant Harvester

Technical Parameters

16m

Total Width

3.96

Totalheight

4.8m

Full Loaded Draft

0.5m

Empty Loaded Draft

04m

Collecting Depth

10m

Collecting Width1

.5m

Displacement

182t

Loading Capacity

3t

Engine Powerw

110k

Designed Speec

10kmh

Working Speed

3kmh

Cruising Ability

24h

Driven Method

Paddle Wheel

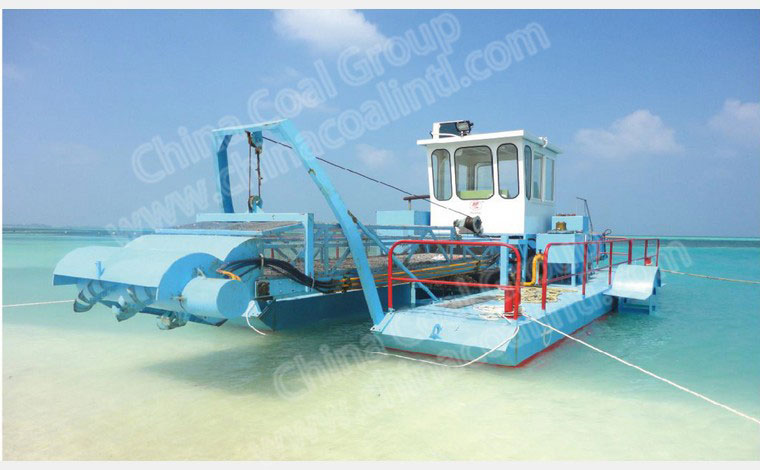

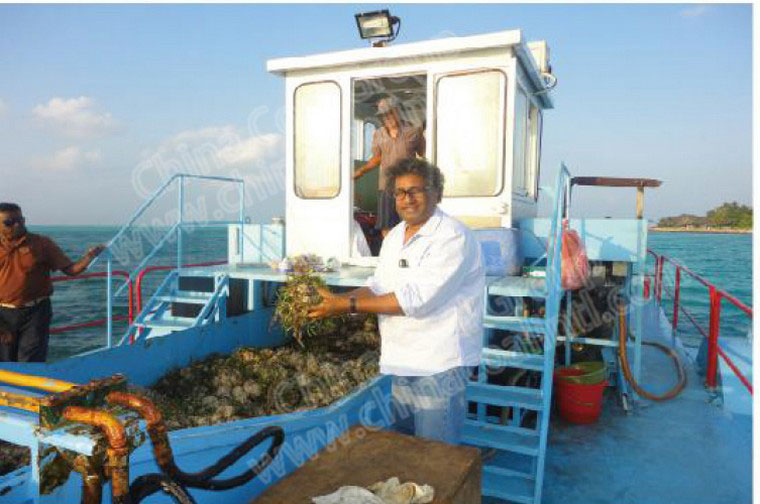

Photos of Seabed Aquatic Plant Harvester

Seabed Aquatic Plant HarvesterSeabed Aquatic Plant Harvester
