Introduction Of Xnx Honeywell Gas Detector
Flammable gas detection 0 to 100% LFL/LEL
Flexible operation options
Minimal training required
High performance
? Flammable gas detection 0 to 100% LFL/LEL
? Point IR with heated optics provides immunity to poisoning and no hidden faults
? Open-path IR flammable gas detection inLEL-m measurement
? Electrochemical cell offers toxic gas detection in ppm
? IR cell provides CO2 and combustible gas monitoring
? Robust and reliable operation in explosive areas and harsh environments
Characteristic Of Xnx Honeywell Gas Detector
? 3 versions - supports (Catalytic Bead and IR Cell),Electrochemical Cell and IR (point and open-path)
gas detection
? Multi-Purpose Detector (MPD) with field serviceable mV,Catalytic bead and IR Cell capability
? 4-20mA with HART as standard
? HART Enhanced Device Description Language(EDDL) software*
? Multiple communications options include up to 3 relays,MODBUS and FOUNDATION H1 Fieldbus
? Optional local IS port for handheld HART configurator
Easy to Use
? Large, backlit, easy-to-view LCD display offers multisensory indicators (visual icons, colored buttons, text,
etc.) to display gas and sensor readings
? User interface supported by 8 selectable languages (English, Spanish, German, Italian, Portuguese, French,
Russian, Chinese)
? Self-test and fault indication features
? Non-intrusive, one-man operation
? Quick calibration with auto-inhibit
Easy to Install
? 3 or 4 wire operation, source, sink or isolated
? Simple plug-in sensors and replaceable cells
? NEMA 4X IP66 rated for rugged indoor/outdoor use
? Five conduit entries for ease of installation
Cost Effective
? Minimal training required
? One-man operation
? Plug-in sensor replacement
? All necessary accessories included

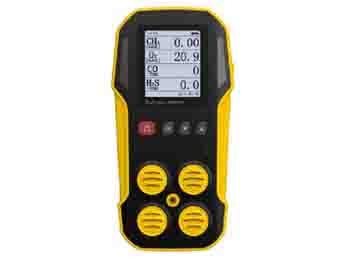

Photos Of Xnx Honeywell Gas Detector
