Video of 3 Cubic Meter Selfloading Concrete Mixer
What is 3 Cubic Meter Selfloading Concrete Mixer?
3 Cubic Meter Selfloading Concrete Mixer adopts double helix stirring mode,The rotation of the mixing drum is controlled by the hydraulic motor and planetary reducer.The speed of mixing and unloading the material is independent of the engine rotation speed.Another advantages is reversal discharging:the mixing drum can be rotated by hydraulic power to as much as to 300 degress and can speedily discharge the material even 2 meters away from the chassis.The engine is Cummins water cooled diesel engine with 6 cylinders,which laterally placed in the back of whole machine.BOSCH Rexroth drive motor,The pump and motor are connected to the speed reducer through a two speed reducer (work and conversion).4 Wheel Drive, front wheel for steering.Working speed between 0-9 km/h,road transfering speed between 0-20 km/h.The driving cab is positioned on the other side of the bucket,equipped with ROPS-FOPS ceiling and door(anti turning and falling).Hydraulic systerm adopted 3 way control,one variable output pump control hydrostatic transmission and mixing drum rotation,the other 2 gear pumps is for maintance.
3 Cubic Meter Selfloading Concrete Mixer equiped with 2 direction oil filter and air-cooler heat cooler.
Main Parameter of 3 Cubic Meter Selfloading Concrete Mixer
|
MODEL
|
HYZHB3F
|
|
CHASSI NO
|
HLZGD3-2000
|
|
TYPE
|
movable, self loading, mixing, transporting
|
|
FUNCTION
|
concrete, sand, fertilizer compound, wet or dry feed materias mixing and discharging
|
|
PRODUCTIVITY
|
BATCH≤15MINS, 4BATCHS/HOUR
|
|
Drive mode
|
4WD
|
|
ENGINE
|
CUMMINS 6 cylinders，110KW.Intercooling Turbo.
|
|
Wheelbase
|
2000mm
|
|
Wheel track
|
1833mm
|
|
TIRE
|
(project machine tire) 4 pcs
|
|
DRUM
|
3 cubic meter volume
|
|
DRUM inclination degree
|
16 degree
|
|
TIPPING CHUTE
|
ADJUSTABLE ANGLE, 2-segment tipping chute can be dismantled, can expand the discharing length
|
|
SHOVEL
|
shovel capacity: 600L
discharge:hydraulic valve
|
|
DIscharging Mode
|
Hydraulic gate, electric control
|
|
OPERATIONLEVEL
|
ELECTRIC CONTROL BUTTON FOUR-WAY GUIDE HANDLE
|
|
WATER SUPPLY
|
HYDRAULIC DRIVING SELF-PRIMIING PUMPS.
WASHING: HIGH-PRESSURE WATER PUMP WASH
|
|
Water tank volume
|
300 Ltr
|
|
Diesel oil tank capacity
|
112 Ltr
|
|
Mass
|
COMPLETE VEHICLE KERB MASS 7000kg TOTAL MASS 14200kg
|

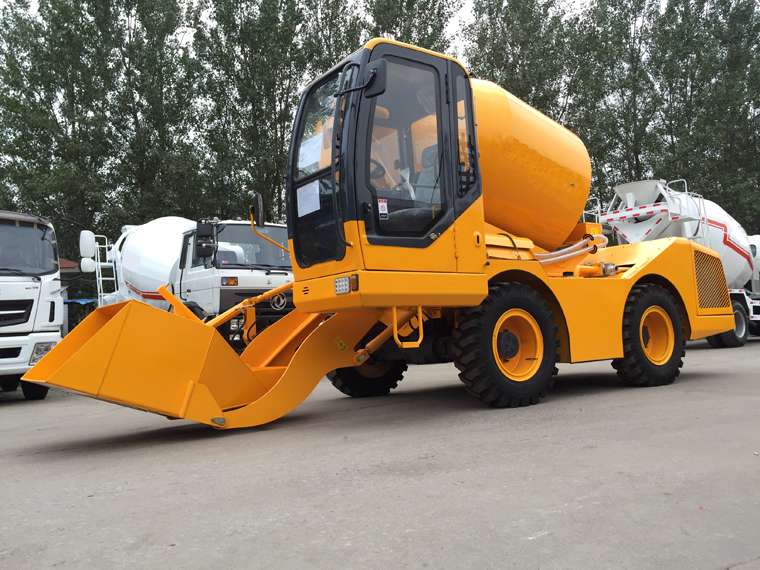

Figure Photos of 3 Cubic Meter Selfloading Concrete Mixer
